The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| Philippines, Caloocan | ₱ 85900 | -- |
| Philippines, Davao | ₱ 85900 | -- |
| Philippines, Manila | ₱ 85900 | -- |
| Philippines, Quezon | ₱ 85900 | -- |
| Philippines, Santo Tomas | ₱ 85900 | -- |
Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Yamaha Mio Gravis.

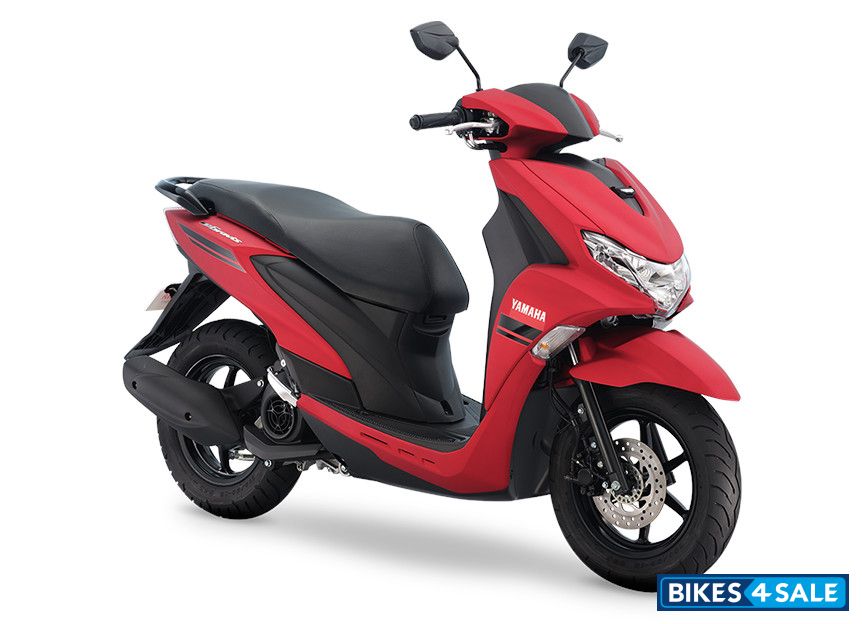

Matte Red
Matte Black

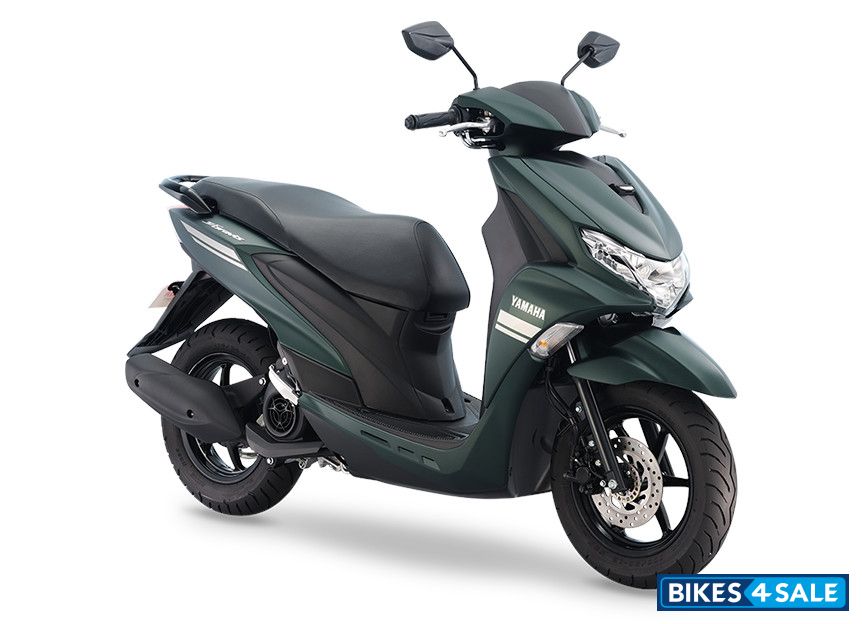

Matte Green
| Vehicle Type | Scooter |
| Fuel | Petrol |
| Engine Displacement | 125.00 cc |
| Engine Details | Air cooled, 4-stroke, SOHC, 2-valve, Single Cylinder |
| Engine Starting | Electric starter and kickstarter |
| Bore x Stroke | 52.4mm x 57.9mm |
| Compression Ratio | 9.5:1 |
| Engine Lubrication | Wet sump |
| Clutch | Dry, centrifugal, shoe |
| Fuel System | Fuel injection |
| Ignition | TCI(transistor controlled ignition) |
| Cooling System | Air cooled |
| Maximum Power | 9.5 PS @ 8000 RPM |
| Maximum Torque | 9.5 NM @ 5500 RPM |
| Transmission | V-belt automatic |
| Electricals | |
|---|---|
| Battery | YTZ4V / GTZ4V / NTZ4V |
| Head Lamp | LED |
| Tail Lamp | 12V,21/5W x 1 |
| Brakes | |
|---|---|
| Front Brake | Hydraulic single disc brake |
| Rear Brake | Mechanical leading trailing drum brake |
| Chassis and Suspension | |
|---|---|
| Frame | Underbone |
| Front Suspension | Telescopic fork |
| Rear Suspension | Unit swing |
| Tyres | |
|---|---|
| Wheels / Rim | Alloy |
| Front Tyre | 100/90-12 59J Tubeless |
| Rear Tyre | 110/ 90-12 64L Tubeless |
| Dimensions | |
|---|---|
| Length | 1905 mm |
| Width | 690 mm |
| Height | 1110 mm |
| Seat Height | 780 mm |
| Wheelbase | 1275 mm |
| Weight | 100 kg |
| Ground Clearance | 135 mm |
| Fuel Tank Capacity | 4.2 litres |
| Additional Details |
|---|
| Engine oil capacity : 0.84 L Smart Motor Generator : Equipped |
