Price, features and specs
Rate Yamaha Cross Connect:
Yamaha Cross Connect Price
$
2999
[Chicago, United States]
The given price can change depending on the colour, accessories and other features.
| Country, City |
Showroom Price |
On Road Price |
| United States, Chicago |
$ 2999 |
-- |
| United States, Houston |
$ 2999 |
-- |
| United States, Las Vegas |
$ 2999 |
-- |
| United States, New York |
$ 2999 |
-- |
| United States, Orlando |
$ 2999 |
-- |
Buy new Yamaha Cross Connect
Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Yamaha Cross Connect.
For Exciting Offers, Book a Test Drive
Picture Gallery

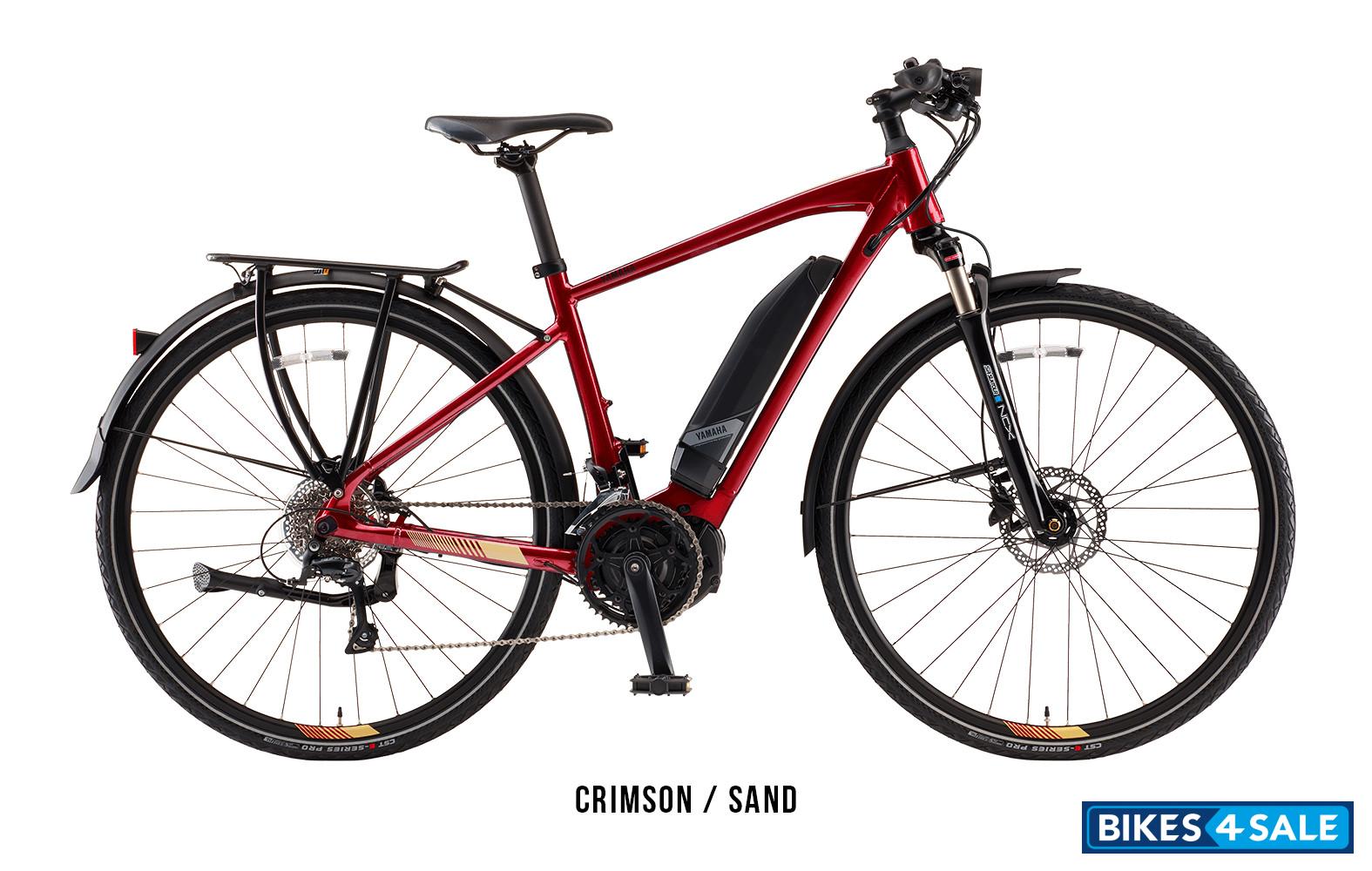

Crimson/Sand
Indigo/Sunset

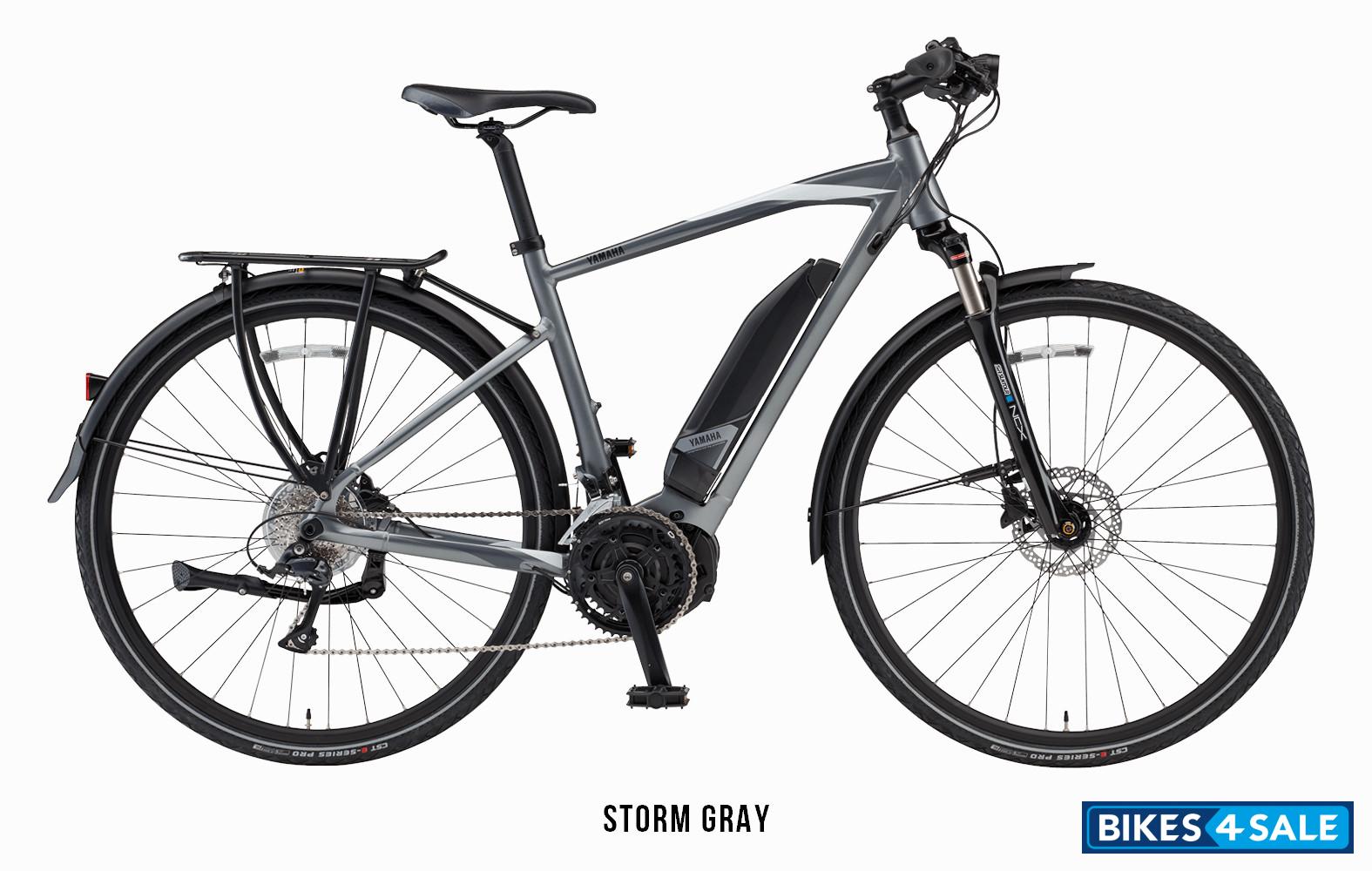

Storm Gray
Features
- Fender/Rack Compatible
- Triple Sensor System
- Rear hub speed sensor
- Ergonomic control switch
- 4 Assist modes: ECO+, ECO, STD, HIGH
- Side-exiting battery with anti-vibration dock
- Rated power: 250W (Nominal), 500W (Max)
- Max cadence support: 110 rpm
- Internal cable/housing routing
- Bluetooth connectivity
- USB connectivity
Colours
Storm Gray
Polar White/Crimson
Indigo/Sunset
Crimson/Sand
Technical Specifications
| Vehicle Type | Bicycle |
| Fuel | Electric |
| Engine Starting | Electric |
| Maximum Torque | 70 NM |
| Top Speed | 32 kmph |
| Stem | 4-bolt faceplate. 31.8 diameter. 80mm length (54cm,56cm). 100mm length (58cm) |
| Handlebar | Alloy flat bar. 31.8mm diameter. 640mm width |
| Fork | SR Suntour NCX 63mm, mechanical lock-out, 30mm stanchion, magnesium lowers, adjustable airsleeve. |
| Seatpost | Alloy 30.9 x 260mm(S),315mm(M),350mm(L) with 2-bolt with adjustable tilt saddle rail clamp |
| Grip | Ergonomic locking. Two-tone |
| Crankset | Square taper. 165mm (54cm). 170mm (56cm and 58cm) |
| Chain | KMCX9e |
| Shifters | Shimano 9-speed Sora trigger shifter. Gear selection |
| Saddle | Yamaha Cro-Mo Rail |
| Headset | Integrated headset with 30mm headset spacers |
| Derailleur : Front | Shimano Sora (2x 9) Braze-on |
| Derailleur : Rear | Shimano Sora RD-3000GS 9-speed |
| Hub : Front | Front: 15 x 100 TA6-bolt. Rear: 12 x 142, Shimano freehub, Integrated speed sensor,Centerlock |
| Hub : Rear | Front: 15 x 100 TA6-bolt. Rear: 12 x 142, Shimano freehub, Integrated speed sensor,Centerlock |
| Spoke | Spokes SUS304 |
| Cassette | Shimano 9-speed. 11/30T |
| Chainrings | 46/34T E-Ring110 BCD |
| Motor Details |
|---|
| PWSeries SE 3-bolt mount |
| Electricals |
|---|
| Battery | Side exit Yamaha 500Wh36V Lithium-Ion |
| Warranty for Battery | 3-Year Warranty: |
| Head Lamp | LED |
| Tail Lamp | LED |
| Brakes |
|---|
| Front Brake | Shimano M315 Hydraulic Disc160mm Front:6-bolt SM-RT 56 Rotor. Rear: Shimano SM-RT68 Centerlock Rotor |
| Rear Brake | Shimano M315 Hydraulic Disc160mm Front:6-bolt SM-RT 56 Rotor. Rear: Shimano SM-RT68 Centerlock Rotor |
| Chassis and Suspension |
|---|
| Frame | Yamahahydroformed and butted alluminum |
| Tyres |
|---|
| Wheels / Rim | Spoke |
| Front Tyre | CST E-SERIES PRO (700 x 35c) Level-6 Flat Protection. Reflective Sidewall. PVTube |
| Rear Tyre | CST E-SERIES PRO (700 x 35c) Level-6 Flat Protection. Reflective Sidewall. PVTube |
| Accessories |
|---|
Yamaha Keys
Yamaha battery charger
kickstand
Bell
Rear rack with front/rear fenders and integrated LED tail light |
| Additional Details |
|---|
| Rims : 700c. Dual channel welded pin rim. Eyelet spoke holes.Width 24.5mm (OUTSIDE) 19mm (INSIDE) |
| Vehicle Warranty |
|---|
| 3-Year Warranty: |
