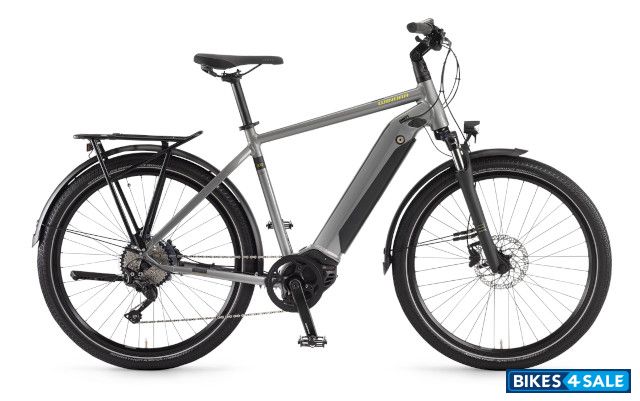

Winora Sinus iX10 Men Electric Bicycle Price, Specs and Features

Price, features and specs

Rate Winora Sinus iX10 Men:

4.0/5 (2 votes)

Add To Compare
Write a Review

Winora Sinus iX10 Men Price € 3269 [Berlin, Germany]

The given price can change depending on the colour, accessories and other features.

Buy new Winora Sinus iX10 Men

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Winora Sinus iX10 Men.

Similar Bicycles

Blix Vika X Compare

Ridgeback Butcher Compare

Ridgeback Errand Compare

Norco 2025 Scene VLT Compare

Trek Verve Plus 2 Gen 2 Compare

Ribble Allroad SL R E - Hero Compare

Colours

Concrete

Schultesstr. 4 Germany

More Dealers

View all Winora Showrooms

Technical Specifications

Vehicle Type	Bicycle
Fuel	Electric
Engine Details	Bosch, Performance CX, 250 W, 75 Nm, 25 km/h
Load Carrying Capacity	Permitted Total Weight : 130 Kg
Stem	Alu, winkelverstellbar, A-head, Bar bore: 31.8 mm
Handlebar	Ergoriser, oversize, 640 mm
Fork	SR Suntour, NEX E25-HLO, Lockout, Steel spring, Travel= 63 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered
Seatpost	Patent, 31.6 mm, Aluminium
Grip	XLC, Comfort bo3
Pedals	VP, E461, Aluminium, with Reflector
Chain	KMC, e10S
Shifters	Shimano, Deore M6000, Rapidfire, 10 speed
Saddle	Selle Royal, Viento
Headset	Feimin, A-Head Tapered, Aluminium, cartridge bearing
Derailleur : Rear	Shimano, Deore M6000
Hub : Front	Alu hub
Hub : Rear	Alu hub
Spoke	Sapim, Leader, black
Sprocket	Shimano, HG500, 11 - 42 teeth
Bottom Bracket	Integrated in the motor
Stand	Ursus, Mooi, Rear stand

Display
Bosch, Purion

Electricals
Battery	Bosch, PowerTube, 500 Wh
Head Lamp	Herrmans, H-Black MR4, 40 lm
Tail Lamp	Busch & Muller, Shine Evo, integrated in the luggage carrier

Brakes
Front Brake	Shimano, MT400, 180 mm, 2-piston disc brake
Rear Brake	Shimano, MT400, 160 mm, 2-piston disc brake
Brake Lever	Shimano, MT401-3, Aluminium

Chassis and Suspension
Frame	Winora, Aluminium 6061, multiformed, THT, Aluminium 6061, Disc brake Post Mount

Tyres
Wheels / Rim	Ryde, Zac421, hollow rim, Aluminium
Front Tyre	Schwalbe, Marathon Almotion, 55-584, 27.5" x 2.15"
Rear Tyre	Schwalbe, Marathon Almotion, 55-584, 27.5" x 2.15"
Tube	Dunlop valve

Dimensions
Weight	24.8 kg

Additional Details
Crank Arm : Winora, forged, Aluminium Clamping Ring : Quick release, 34.9 mm Carrier : Racktime, RT-336, 25.0 kg Fenders : Eurofender, Winora schwarz matt, Chromoplastics Lock : Abus, upgradable over Plus System
