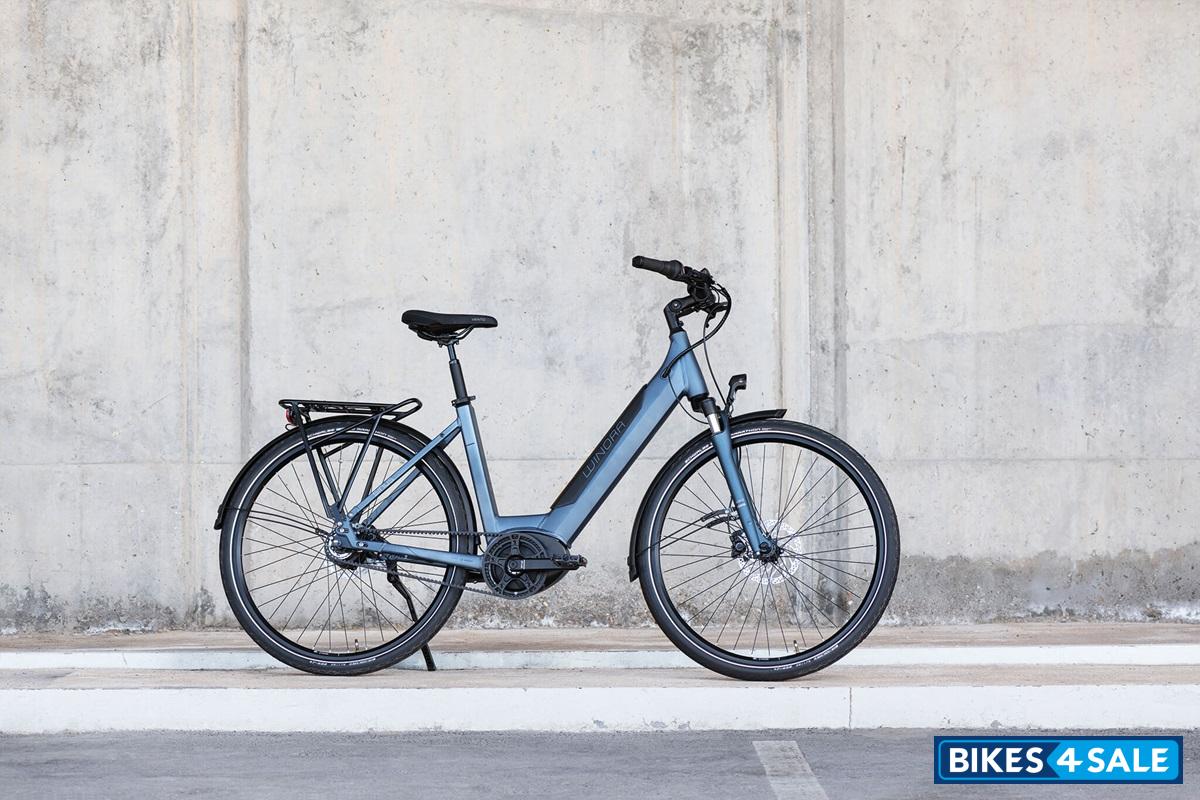

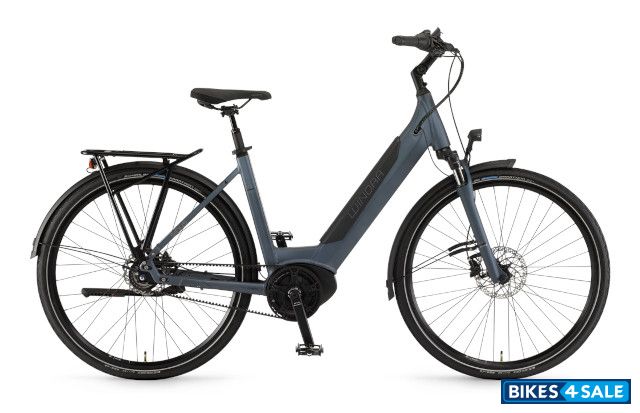

Winora Sinus iR8 Monotube Electric Bicycle Price, Specs and Features

Price, features and specs

Rate Winora Sinus iR8 Monotube:

4.0/5 (3 votes)

Add To Compare
Write a Review

Winora Sinus iR8 Monotube Price € 3269 [Berlin, Germany]

The given price can change depending on the colour, accessories and other features.

Buy new Winora Sinus iR8 Monotube

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Winora Sinus iR8 Monotube.

Picture Gallery

Similar Bicycles

Blix Vika X Compare

Ridgeback Butcher Compare

Ridgeback Errand Compare

Norco 2025 Scene VLT Compare

Trek Verve Plus 2 Gen 2 Compare

Ribble Allroad SL R E - Hero Compare

Colours

Modern Blue Matt
Onyx Black

Schultesstr. 4 Germany

More Dealers

View all Winora Showrooms

Technical Specifications

Vehicle Type	Bicycle
Fuel	Electric
Maximum Torque	50 Nm
Load Carrying Capacity	Permitted Total Weight : 130 Kg
Top Speed	25 kmph
Stem	Alu, winkelverstellbar, Bar bore: 31.8 mm
Handlebar	Ergobar, oversize, 640 mm
Fork	SR Suntour, NEX E25-HLO, Lockout, Steel spring, Travel= 50 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered
Seatpost	Patent suspension, 31.6 mm, Aluminium
Grip	Herrmans, Click Ergo - lock on grips
Pedals	VP, E461, Aluminium, with Reflector
Chain	Gates, CarbonDrive
Shifters	Shimano, Nexus, Twist shifter, 8 speed
Gear	Shimano Nexus
Saddle	Selle Royal, Viento
Headset	Feimin, A-Head Tapered, ball bearing
Hub : Front	Aluminium hub, Centerlock
Hub : Rear	Shimano, Nexus
Spoke	Stainless spokes, black
Chainrings	Gates, Aluminium, 50 teeth
Sprocket	Gates, sprocket, 24 - teeth
Bottom Bracket	Integrated in the motor
Stand	Ursus, Mooi, Rear stand

Motor Details
Bosch, Active Plus, 250 W

Display
Bosch, Intuvia

Brakes
Front Brake	Shimano, M445, 160 mm, 2-piston disc brake
Rear Brake	Shimano, M445, 160 mm, 2-piston disc brake
Brake Lever	Shimano, T445, Aluminium

Chassis and Suspension
Frame	Winora, Aluminium 6061, Aluminium 6061, Quick-release 5 x 135mm, Disc brake Post Mount

Tyres
Wheels / Rim	Ryde, Zac421, hollow rim, Aluminium
Front Tyre	Schwalbe, Marathon, 47-622, 28" x 1.75"
Rear Tyre	Schwalbe, Marathon, 47-622, 28" x 1.75"
Tube	Dunlop valve

Dimensions
Weight	25.5 kg

Additional Details
Crank Arm : Winora, forged, Aluminium Clamping Ring : Quick release, 34.9 mm Dynamo : Via system battery Carriers : Racktime, RT-336, 25.0 kg Fenders : RPZ, Evo, Chromoplastics Lock : Abus, upgradable over Plus System
