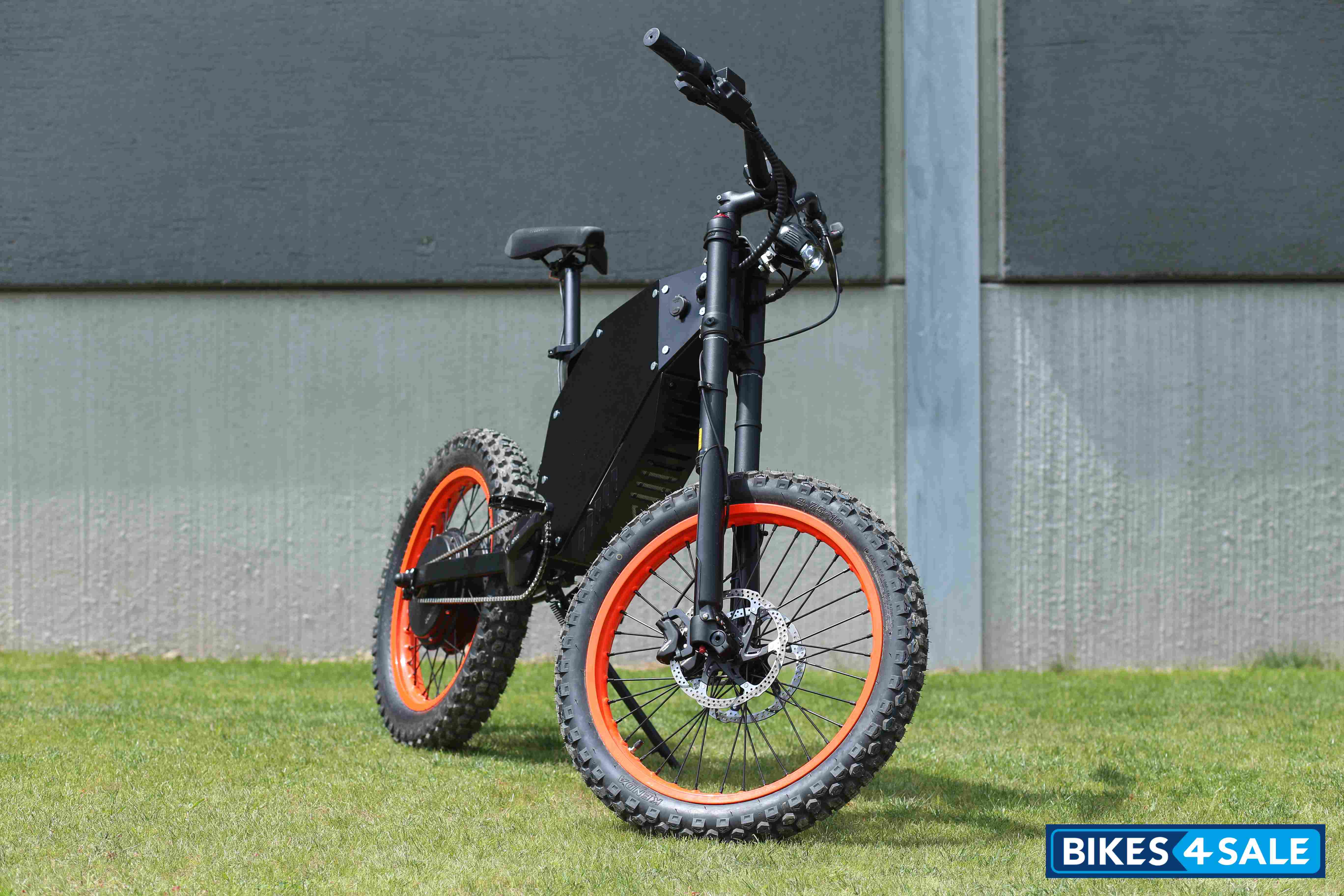

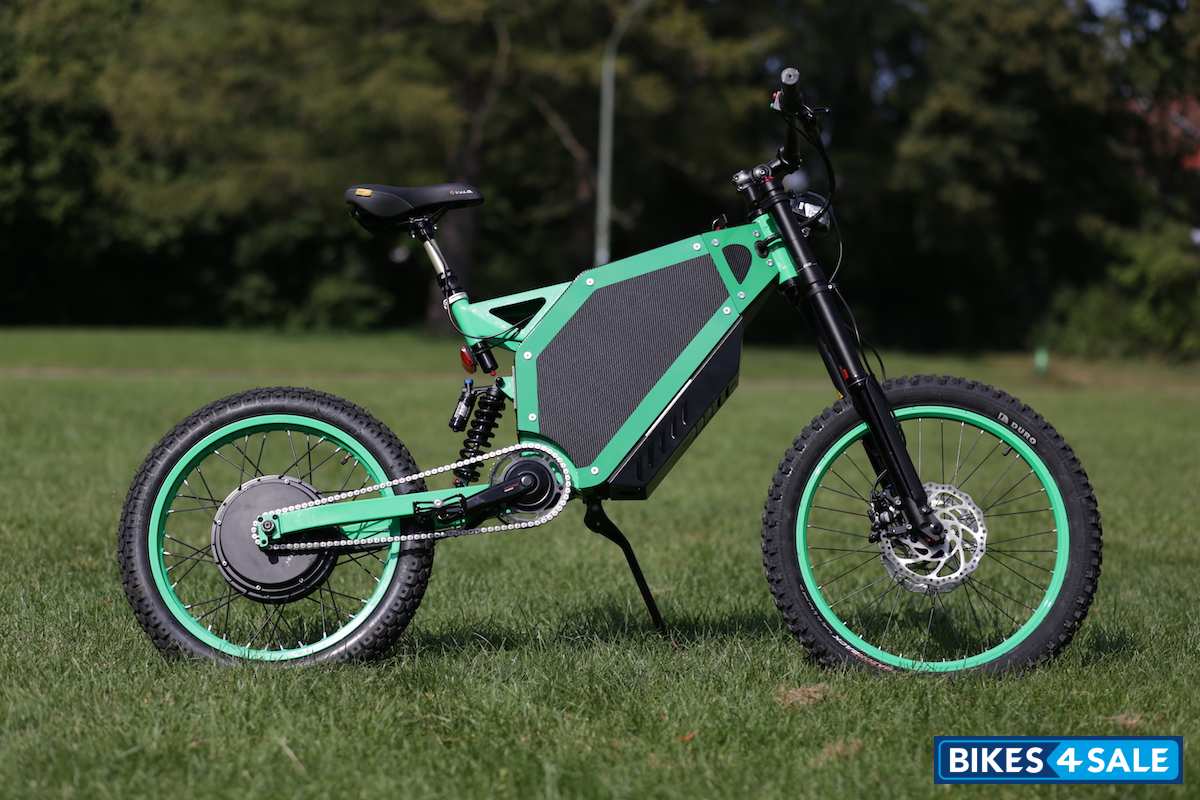

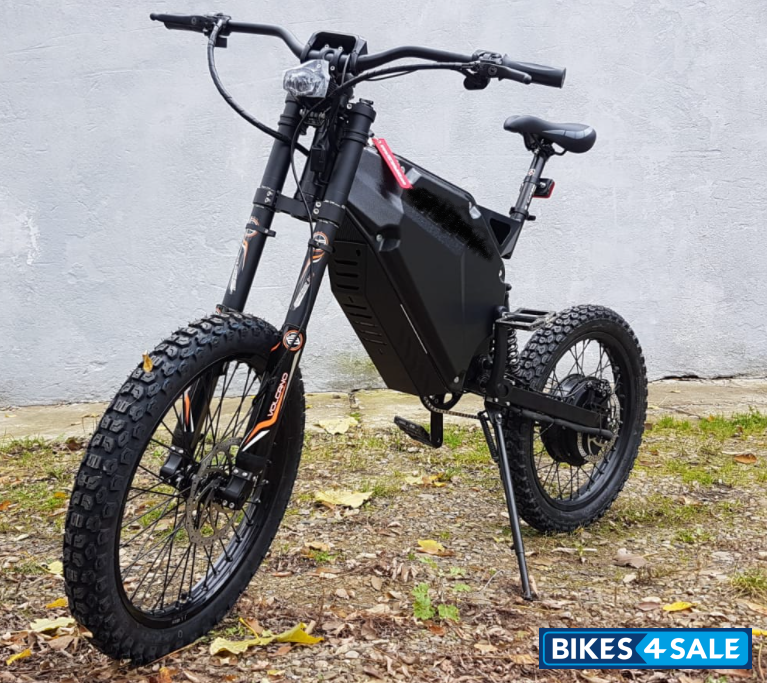

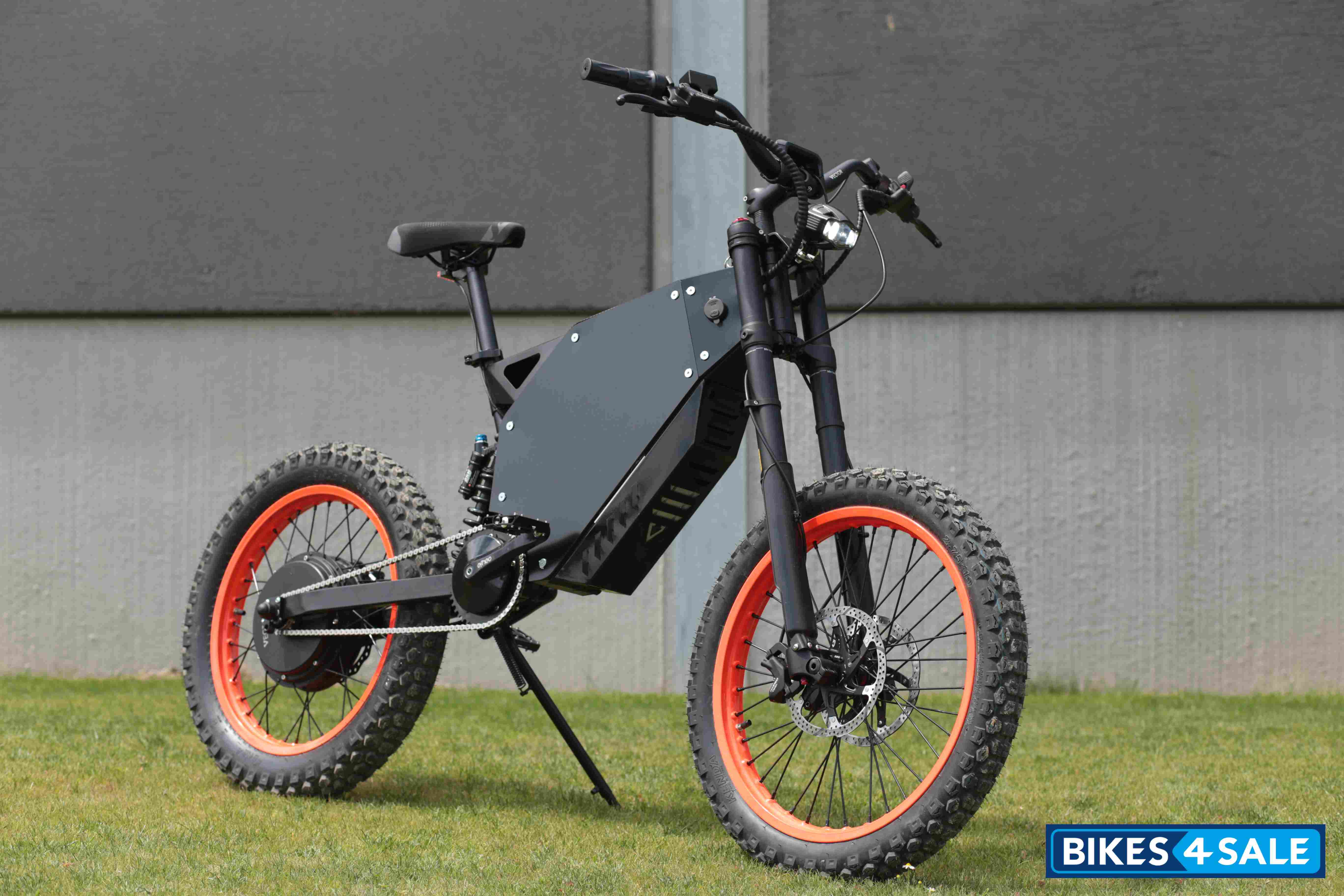

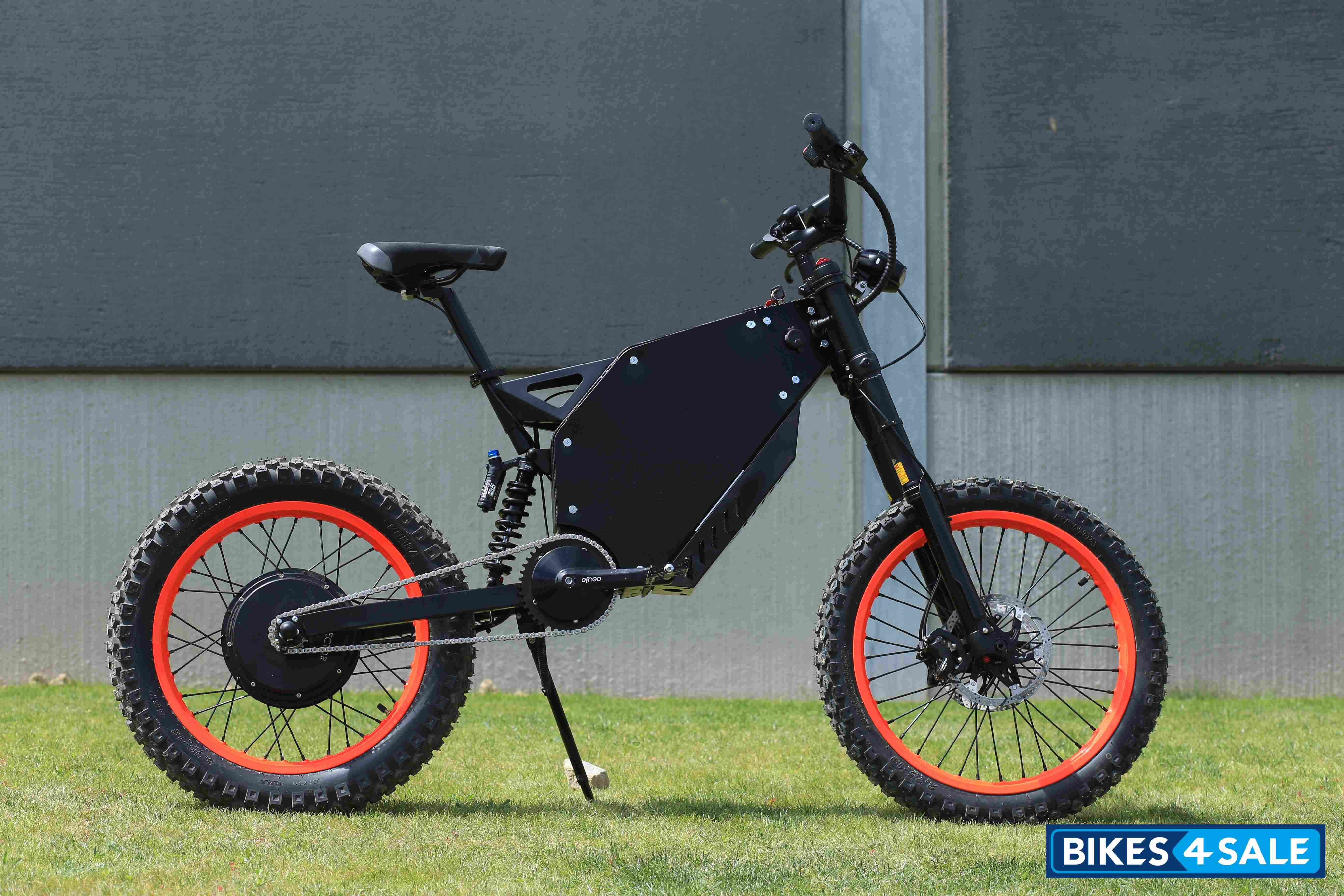

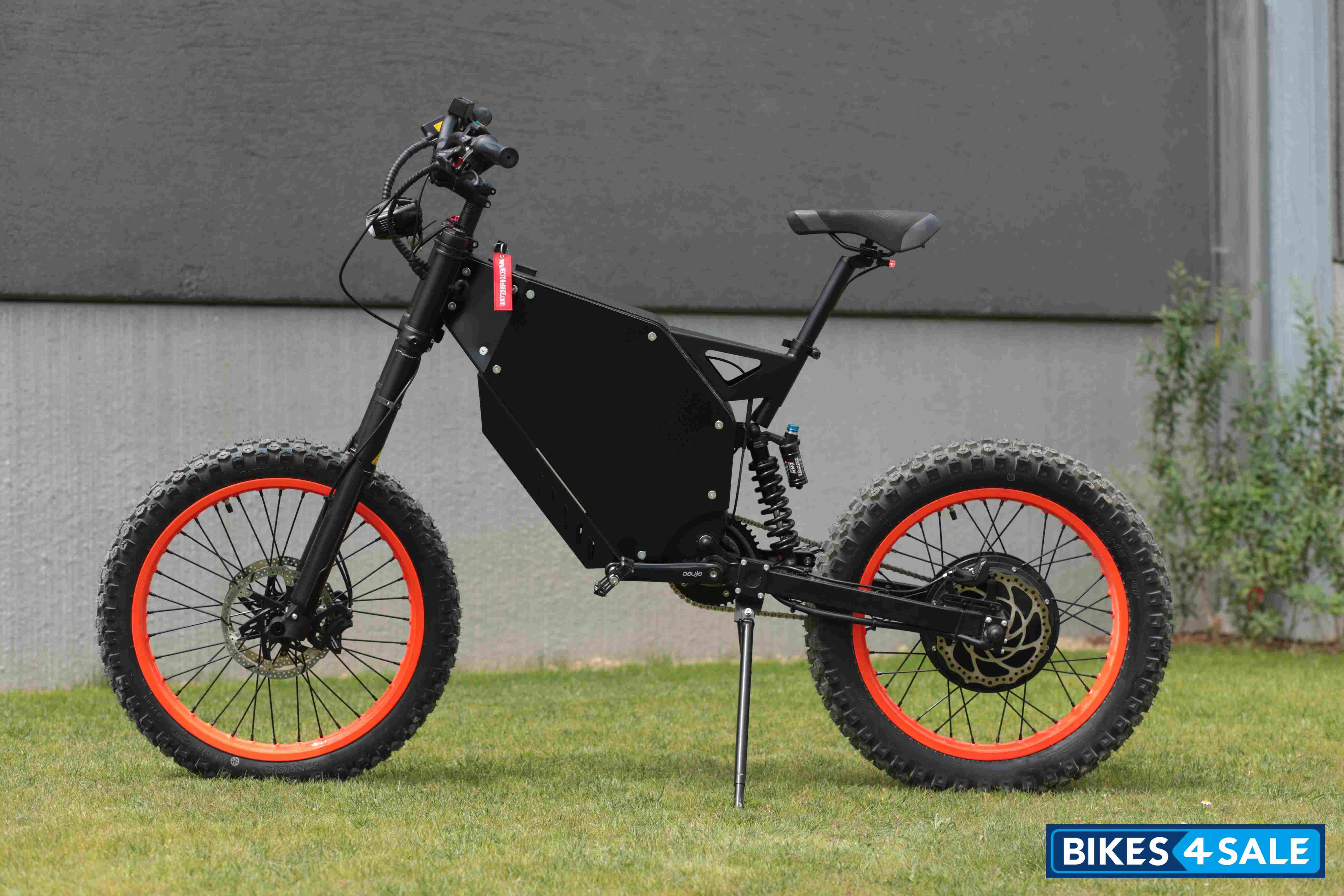

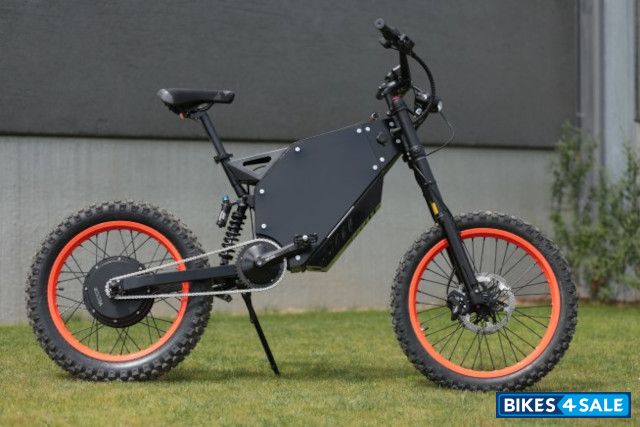

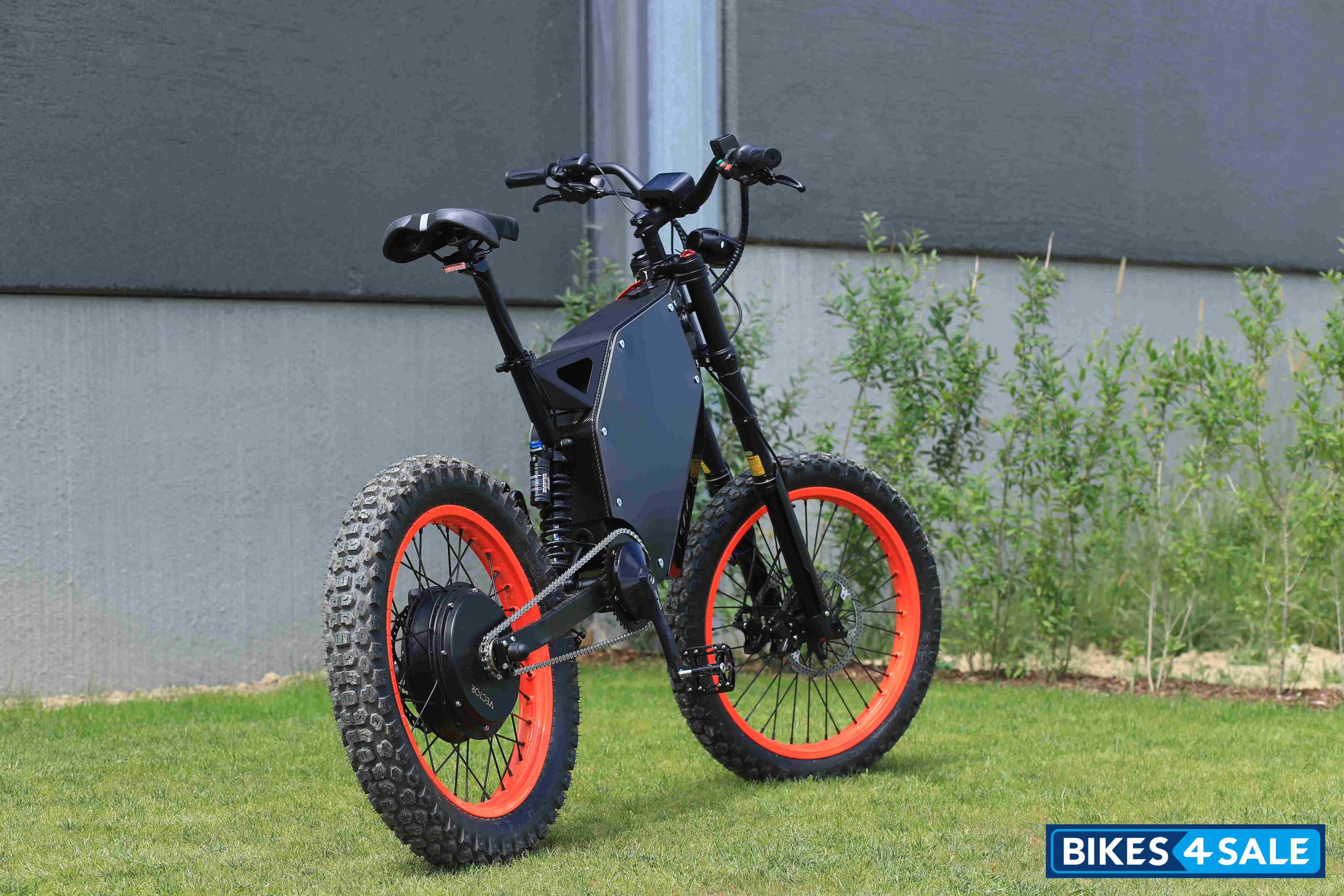

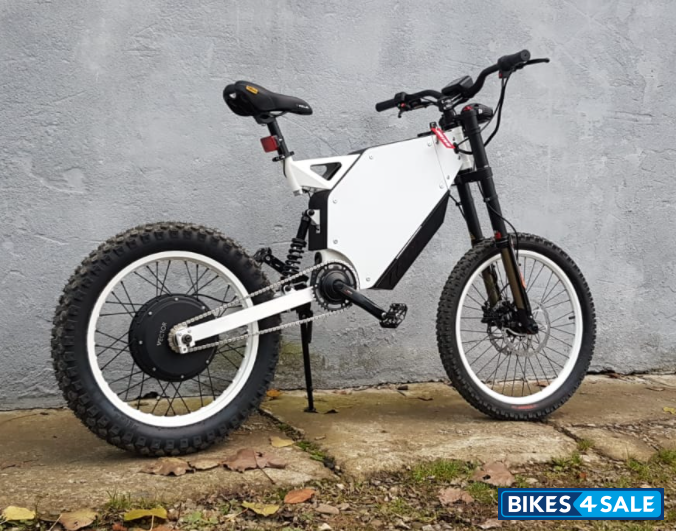

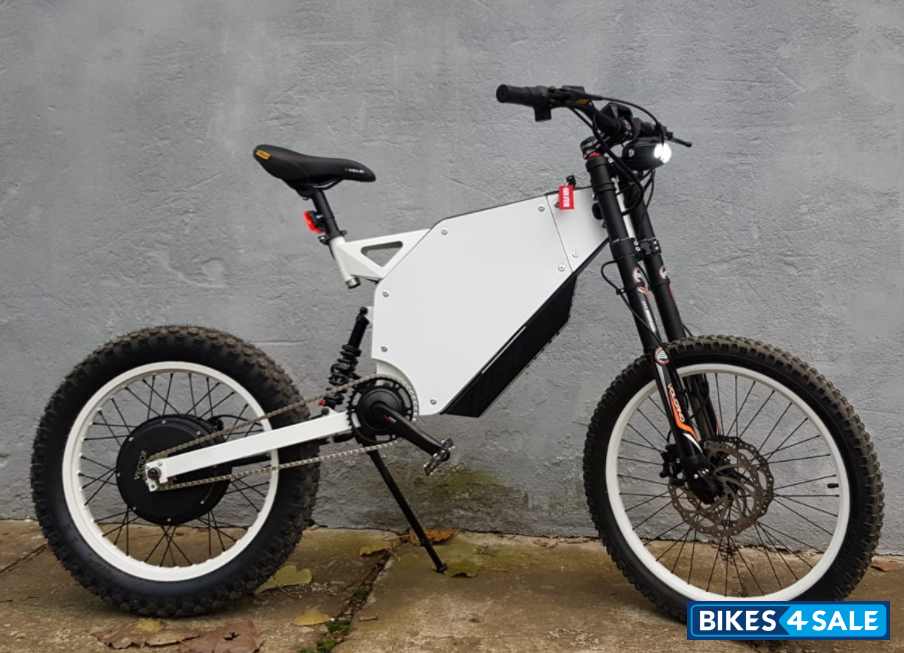

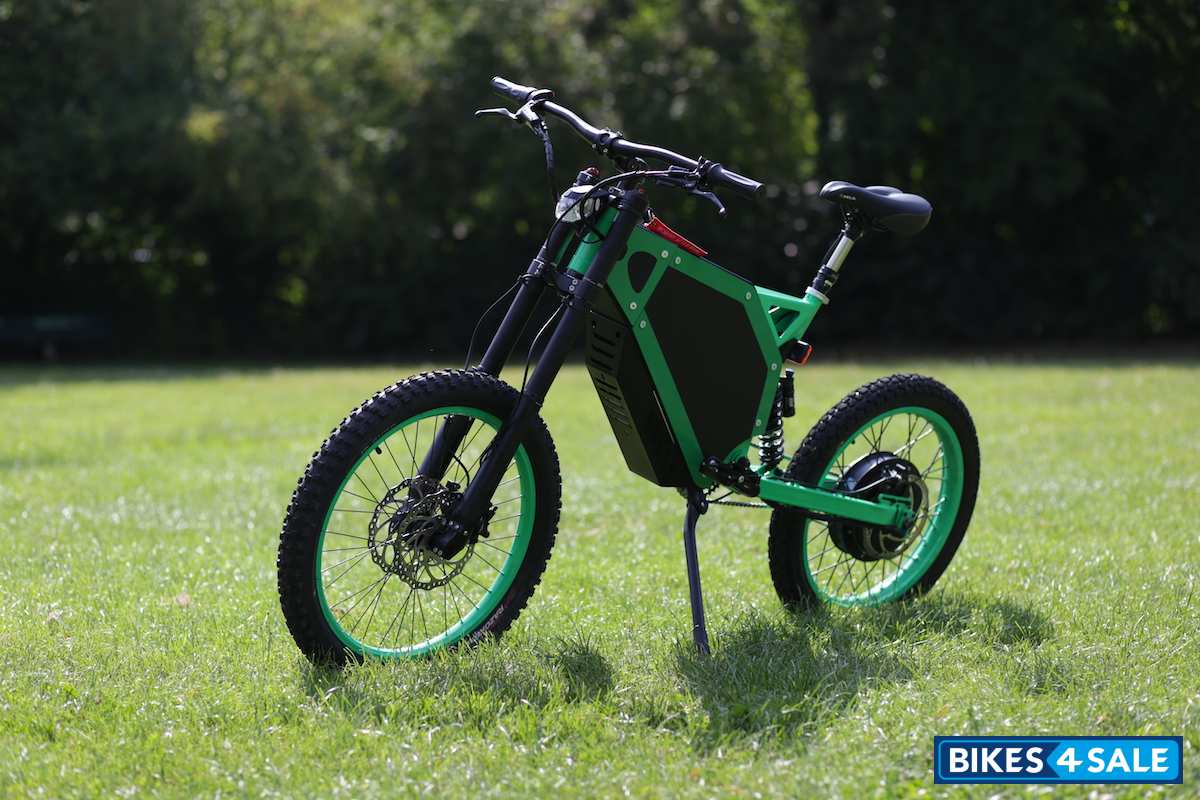

The Vector Typhoon, an electric bicycle, offers a dynamic ride with its 10,000 Watt electric motor. With three distinct power modes – Reverse, Eco, and Boost – it tailors the experience to your preference. The robust chassis, composed of high-tensile steel, combines with a responsive suspension system featuring Custom V crown DNM USD 8 Coil fork and DNM Burner 2S rear shock, ensuring a smooth journey even on rough terrains. The cutting-edge motor with 16 poles and 400-800 rpm accelerates confidently. It boasts an exceptional range of 200+ km with the optional 3.8 kWh battery. A practical choice for eco-conscious adventurers seeking exhilarating electric-powered commutes.
Custom V crown DNM USD 8 Coil, 200 mm travel Rear shock: 650/850 lbs spring, 240 mm DNM Burner 2S
Motor Details
Custom motor 50mm Neodymium magnets 16 poles, 400-800 rpm
Range
200 km+ / 120 mi+ (average speed of 25 km/h, without pedalling) with 3.8kWh optional battery
Charging Time
150 min
Electricals
Battery
3.8 kWh 72V nominal (optional battery)
LG MJ1 battery (3.7kWh, max power 10.8kW) +900$
LG HE4 + Panasonic PF (2.7kWh, max power 16kW) +500$
Original battery LG cells (1.6kWh, max power 20kW) +0$
Controller
Custom Kelly 7230s, 300 Amps
Brakes
Front Brake
Custom hydraulic Tektro Auriga dual calipers, 4piston, 203 mm rotors
Rear Brake
Custom hydraulic Tektro Auriga 4 piston, 203 mm rotor
Chassis and Suspension
Frame
High-tensile steel
Tyres
Wheels / Rim
Front: 24” double wall aluminium rim, or 19”aluminium moto rim
Rear: 18” aluminium moto rim
