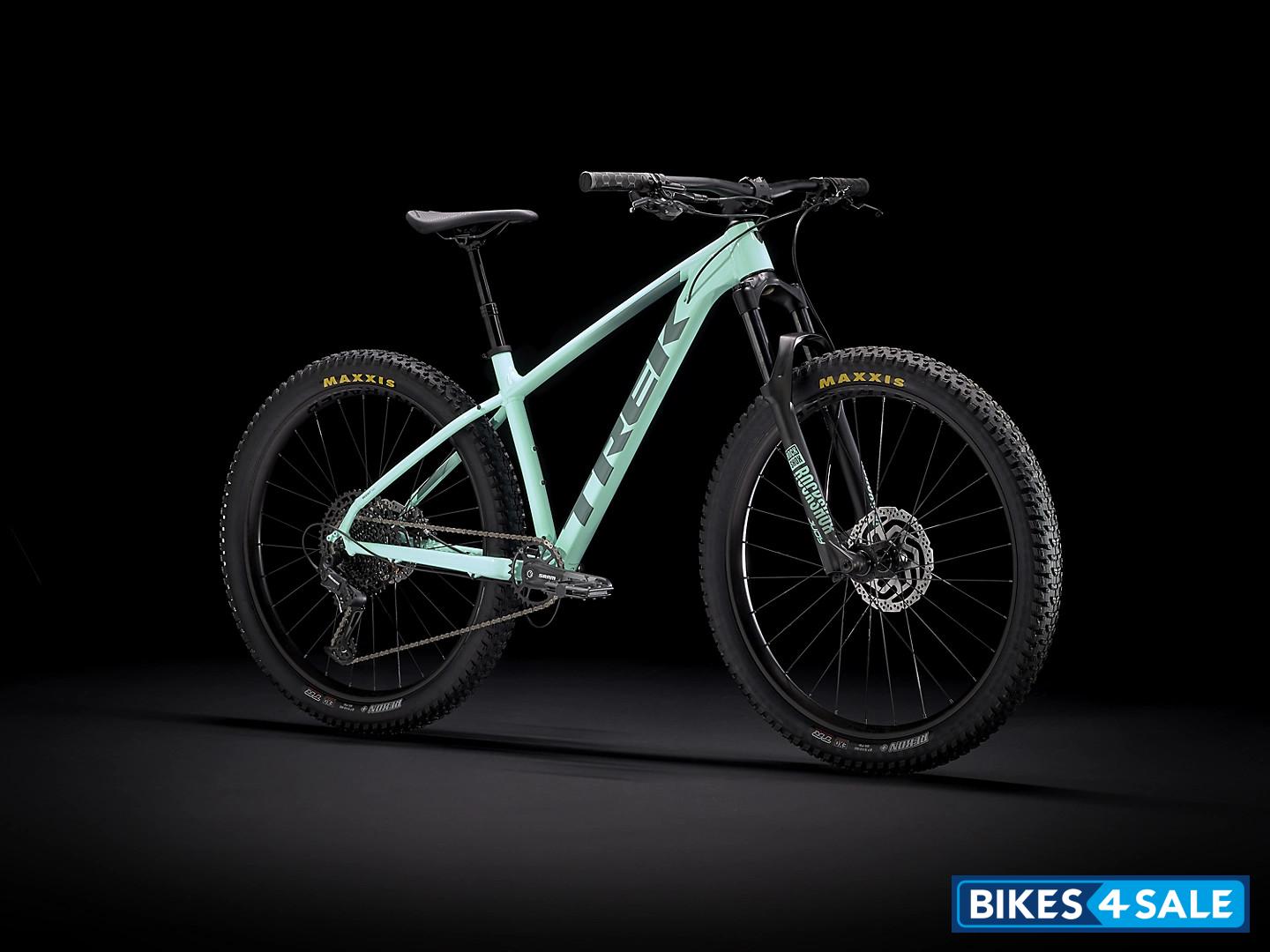

Vehicle Type | Bicycle |
Load Carrying Capacity | Combined weight of bicycle, rider, and cargo of 300 pounds (136 kg) |
Stem | Size : XS, S, M - Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0 degree, 50 mm length
Size : M/L, L, XL, XXL - Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0 degree, 60 mm length |
Handlebar | Size : XS - Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size : S, M, M/L, L, XL, XXL - Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
Fork | RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15 mm Maxle Stealth, 120 mm travel |
Seatpost | Size : XS, S, M - TranzX JD-YSP18, 100mm travel, internal routing, 31.6 mm, 361 mm length
Size : M/L, L, XL, XXL - TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |
Grip | Bontrager XR Trail Comp, nylon lock-on |
Crankset | Size : XS, S, M - SRAM SX Eagle, GXP, 30T steel ring, Boost, 170 mm length
Size : M/L, L, XL, XXL - SRAM SX Eagle, GXP, 30T steel ring, Boost, 175 mm length |
Pedals | VP-536 nylon platform |
Chain | SRAM SX Eagle, 12 speed |
Shifters | SRAM SX Eagle, 12 speed |
Saddle | Bontrager Arvada, steel rails, 138 mm width |
Headset | Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom |
Derailleur : Rear | SRAM SX Eagle |
Hub : Front | Formula DC-2241, alloy, 6-bolt, Shimano 8/9/10 freehub, Boost141, 5 mm QR |
Hub : Rear | Formula DC-511, 6-bolt, Boost110, 15 mm thru axle |
Spoke | 14g stainless steel |
Cassette | SRAM PG-1210 Eagle, 11-50, 12 speed |
Chainrings | 32T |
Bottom Bracket | Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle |
