The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| United States, Alabama | $ 7499 | -- |
| United States, Alaska | $ 7499 | -- |
| United States, Arizona | $ 7499 | -- |
| United States, Atlanta | $ 7499 | -- |
| United States, Austin | $ 7499 | -- |
| United States, Baltimore | $ 7499 | -- |
| United States, Boston | $ 7499 | -- |
| United States, Charleston | $ 7499 | -- |
| United States, Charlotte | $ 7499 | -- |
| United States, Chicago | $ 7499 | -- |

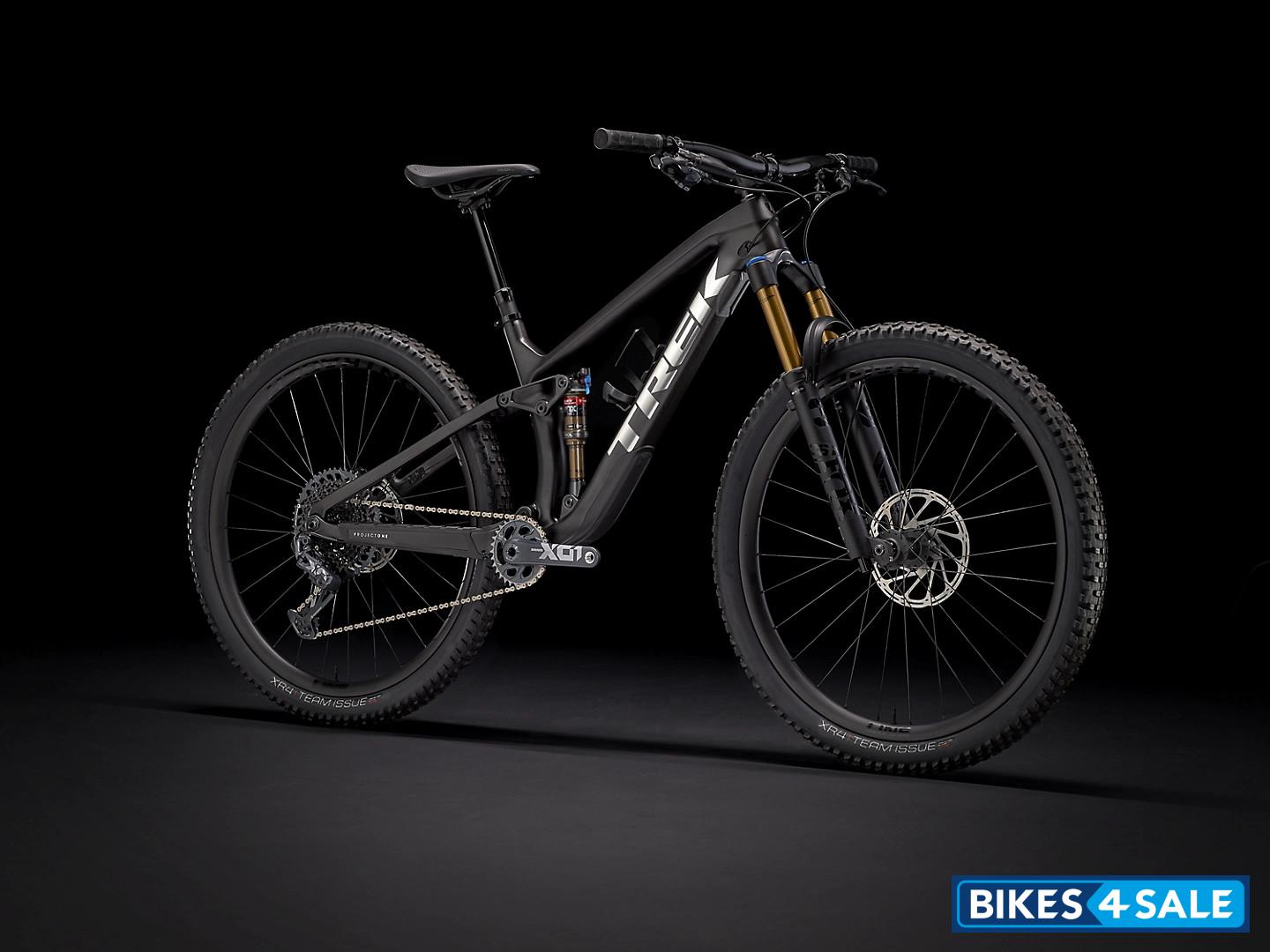

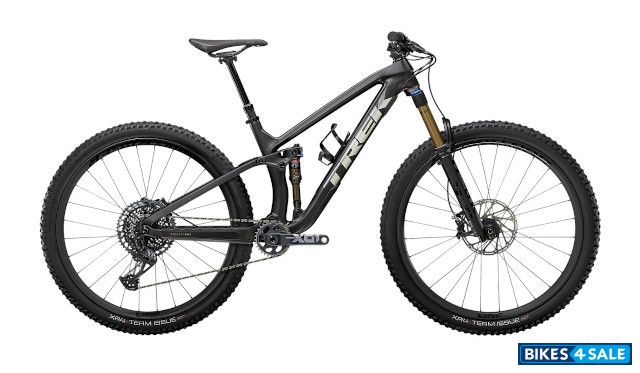

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Fuel EX 9.9 X01.
Raw Carbon/Rage Red
Lithium Grey/Factory Orange
Matte Carbon Smoke
| Vehicle Type | Bicycle |
| Load Carrying Capacity | Combined weight of bicycle, rider, and cargo of 300 pounds (136 kg) |
| Stem | Size : XS, S - Bontrager Line Pro, 35 mm, Knock Block, Blendr compatible, 0 degree, 35 mm length Size : M, ML, L, XL - Bontrager Line Pro, 35 mm, Knock Block, Blendr compatible, 0 degree, 45 mm length |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
| Fork | Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel |
| Seatpost | Size : XS, S - Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length Size : M, ML - Bontrager Line Elite, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 440 mm length Size : L, XL - Bontrager Line Elite, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 480 mm length |
| Grip | Bontrager XR Trail Elite, alloy lock-on |
| Crankset | Size : XS, S - SRAM X01 Eagle carbon, DUB, 30T alloy ring, Boost (52 mm chainline), 170 mm length Size : M, ML, L, XL : SRAM X01 Eagle carbon, DUB, 30T alloy ring, Boost (52 mm chainline), 175 mm length |
| Chain | SRAM GX Eagle, 12 speed |
| Shifters | SRAM X01 Eagle, 12 speed |
| Saddle | Bontrager Arvada Pro, carbon rails, 138 mm width |
| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Derailleur : Rear | SRAM X01 Eagle |
| Hub : Front | Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle |
| Hub : Rear | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Cassette | SRAM Eagle XG-1275, 10-52, 12 speed |
| Chainrings | 34T |
| Bottom Bracket | SRAM DUB, 92 mm, PressFit |
| Brakes | |
|---|---|
| Front Brake | SRAM G2 RSC 4-piston hydraulic disc Brake Rotor : SRAM CenterLine, 6-bolt, round edge, 180 mm |
| Rear Brake | SRAM G2 RSC 4-piston hydraulic disc Brake Rotor : SRAM CenterLine, 6-bolt, round edge, 200 mm |
| Chassis and Suspension | |
|---|---|
| Frame | OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |
| Tyres | |
|---|---|
| Wheels / Rim | Front : NEW Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle Rear : Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle |
| Front Tyre | Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29 x 2.40'' |
| Rear Tyre | Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29 x 2.60'' |
| Dimensions | |
|---|---|
| Weight | 12.98 kg |
| Accessories |
|---|
| Bontrager BITS Internal Frame Storage Bag |
| Additional Details |
|---|
| Shock : Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210 x 55 mm Max compatible fork travel : 150 mm (561 mm axle-to-crown) |
