The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| United States, Los Angeles | $ 4799 | -- |
| United States, New York | $ 4799 | -- |
| United States, San Diego | $ 4799 | -- |
Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern GSD S10.
Gloss Beetle Blue

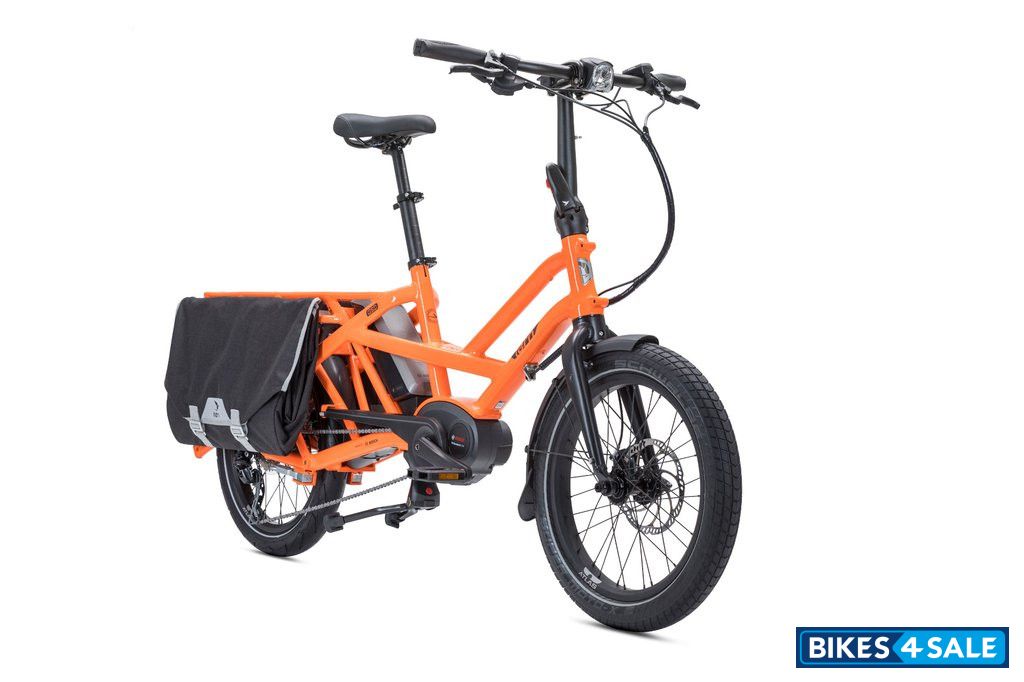

Orange

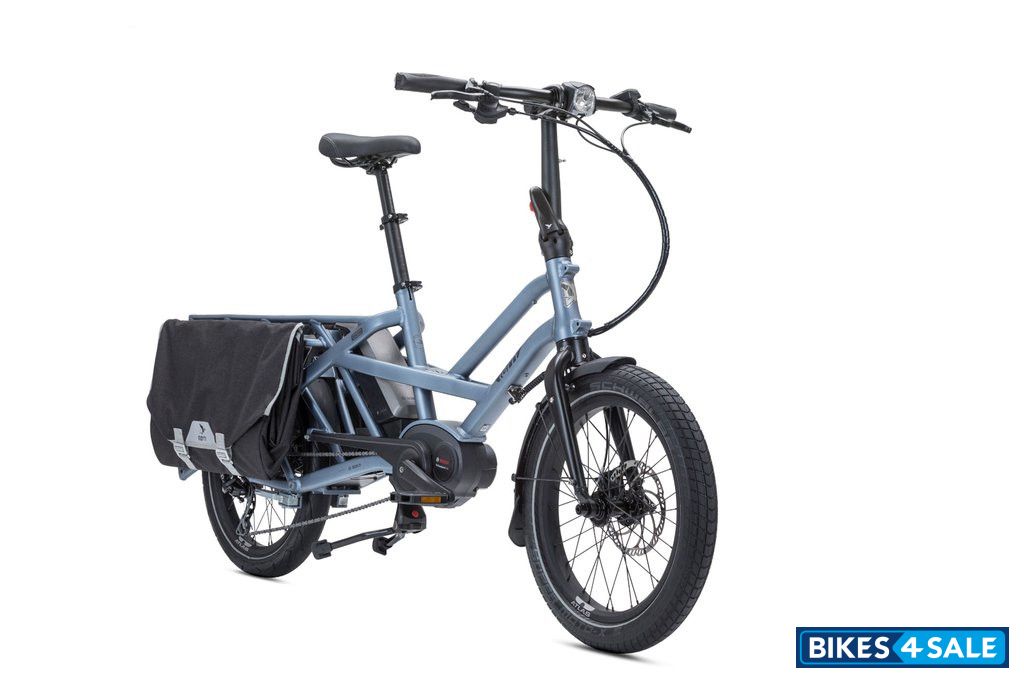

Matte Silver/Blue
| Vehicle Type | Cargo Bike |
| Fuel | Electric |
| Load Carrying Capacity | 400 lb |
| Top Speed | 32 kmph |
| Stem | Tern Andros (G2), adjustable, forged construction, patented technology |
| Handlebar | Tern Sweep, 27 degrees, 6061-Al, Tern Andros adapted |
| Fork | Tern GSD, 1.5" Taper, Boost Thru-axle, 110 mm, 7005-AL |
| Seatpost | Tern Telescope, 34.9 mm, 2014-Al |
| Grip | Ergon, for swept bar |
| Crankset | Tern GSD custom, forged 6061-AL DH crankarm |
| Pedals | Urban with non-slip surface, sealed bearings |
| Chain | 10 spd, DHT for eBike, GST corrosion resistant coating |
| Shifters | Shimano Deore, 1 x 10 spd |
| Saddle | Tern GSD, with rear handle |
| Headset | Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated |
| Derailleur : Rear | Shimano Deore Shadow+ |
| Hub : Front | Tern Atlas, Boost thru-axle, Syntace X-12 standard, ebike reinforced design |
| Hub : Rear | Tern Atlas, Boost thru-axle |
| Spoke | Stainless steel, 13G |
| Cassette | Shimano 11-36T, 10 spd |
| Motor Details |
|---|
| Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
| Range |
|---|
| 400 Wh: 42-85 km (26-53 mi); 900 Wh: 97-195 km (60-121 mi) |
| Display |
|---|
| Bosch Purion, 4 mode selectable, walk assist |
| Electricals | |
|---|---|
| Battery | Bosch Dual Battery system, 400wh/900wh |
| Charger | 220V, 4A (EU); 100-240V, 4A (US) |
| Head Lamp | Tern Valo, integrated, 41 lux/150 lumens |
| Tail Lamp | Herrmans H-Trace, for eBike |
| Brakes | |
|---|---|
| Front Brake | Magura MT5, 4-piston hydraulic disc, 180 mm rotor |
| Rear Brake | Magura MT5, 4-piston hydraulic disc, 180 mm rotor |
| Brake Lever | Magura, hydraulic |
| Chassis and Suspension | |
|---|---|
| Frame | Tern GSD, 7005-Al, patented MultiTruss design |
| Tyres | |
|---|---|
| Wheels / Rim | 20" Rims |
| Front Tyre | Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex |
| Rear Tyre | Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex |
| Dimensions | |
|---|---|
| Weight | 27 kg |
| Accessories |
|---|
| Bell : Aluminum Chainguard : SKS Chainblade Pedal Holder : Yes Kickstand : Heavy-duty double stand, 80 kg capacity Luggage Socket : Barrel Mount |
| Additional Details |
|---|
| Speeds : 1 x 10 Flatpack Dimensions : 71" x 16" x 33” Fold Time : 5 seconds Frame Size : One size Gear Inches : 29" - 95" Distance : Seatpost to Handlebar Min: 24.8" / Max: 27.2" Distance : Saddle to Pedal Min: 19.3" / Max: 22" Suggested Rider Height : 4'11" - 6'5" Handlepost : Tern Physis 3D (G2), 3D forged, 5 patented technologies Shifter Cable & Housing : Jagwire LEX-SL, slick treatment, alloy ferrules |
