High efficiency brushless permanent magnet synchronous mid-drive motor
Motor type : LPMSM
Mounting Position : Middle of the Frame
Weight : 7.0 kg
Motor Ext. Diameter : 180mm
Peak Efficiency: 92%
Range
50 km @ 70 Km/h
Display

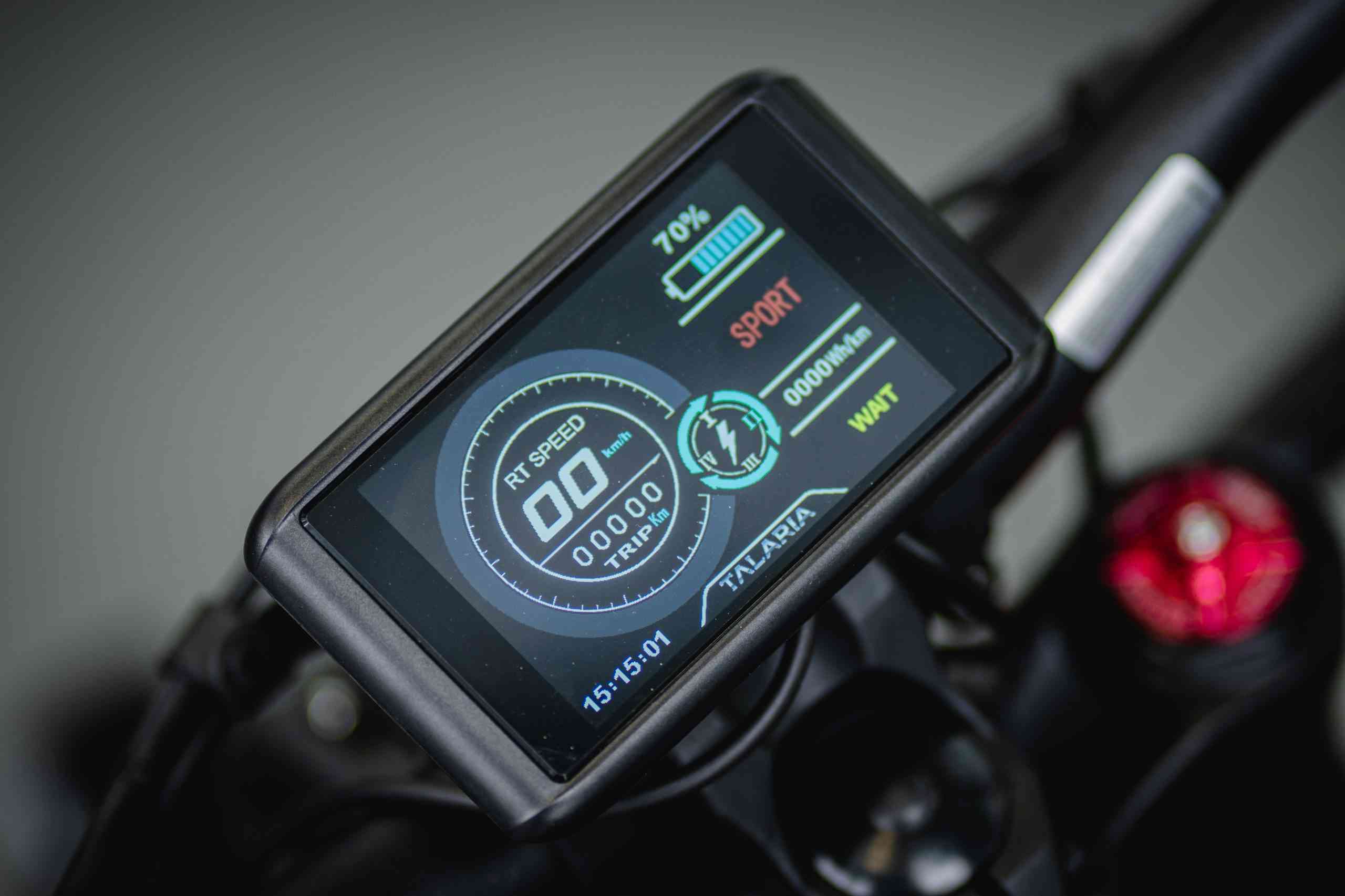

OLED display
Electricals
Controller
Controller Type : FOC
Weight : 2 Kg
Dimension : 248mm x 128mm x 50mm
Peak Efficiency : 92%
Highest Work Temp:100°
Head Lamp
LED
Chassis and Suspension
Frame
6061 T4 & T6 Aluminium Allow
Tyres
Wheels / Rim
Spoke
Dimensions
Length
1850mm
Width
770mm
Height
1075mm
Seat Height
870 mm
Weight
65kg
Ground Clearance
280 mm
Additional Details
Process Method : Forged by 6000 Tons Pressure
Surface Method : Anodizing
Rear Shock : Fastace / HT / Talaria Factory
Handlebar Length: 760mm
Nominal Voltage : 60V (DC)
