RAEV Bullet GTX Electric Bicycle

Price, features and specs

The RAEV Bullet GTX stands out for its speed and efficiency, clocking a top speed of 56 kmph. Its lightweight yet sturdy build is attributed to the aluminum stem and handlebar, while the ergonomic grips and specialized crankset add to rider comfort and bike efficiency. The Pedal Assist System with three levels offers customization, and the drivetrain, featuring a 134-link chain and durable hubs, ensures smooth operation. The motor, a 52V 1000W unit with a peak output of 1500W, provides ample power for a variety of terrains.

When it comes to range and charging, the bike offers flexibility. It can cover 80 km in throttle-only mode and an exceptional 160.934 km in Pedal Assist System mode. Two battery options are available, with reasonable charging times for each. High-quality electrical components, including a fast charger and an enhanced MOSFET sine wave controller, add to the bike's functionality. The frame, made of 6061 Aluminum Alloy, combines strength and lightness, making the RAEV Bullet GTX a well-rounded choice for both casual and committed riders.

Rate RAEV Bullet GTX:
4.0/5 (5 votes)
RAEV Bullet GTX Price $ 2499 [Los Angeles, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Los Angeles $ 2499 --
United States, New York $ 2499 --
Buy new RAEV Bullet GTX

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for RAEV Bullet GTX.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
6566
Colours

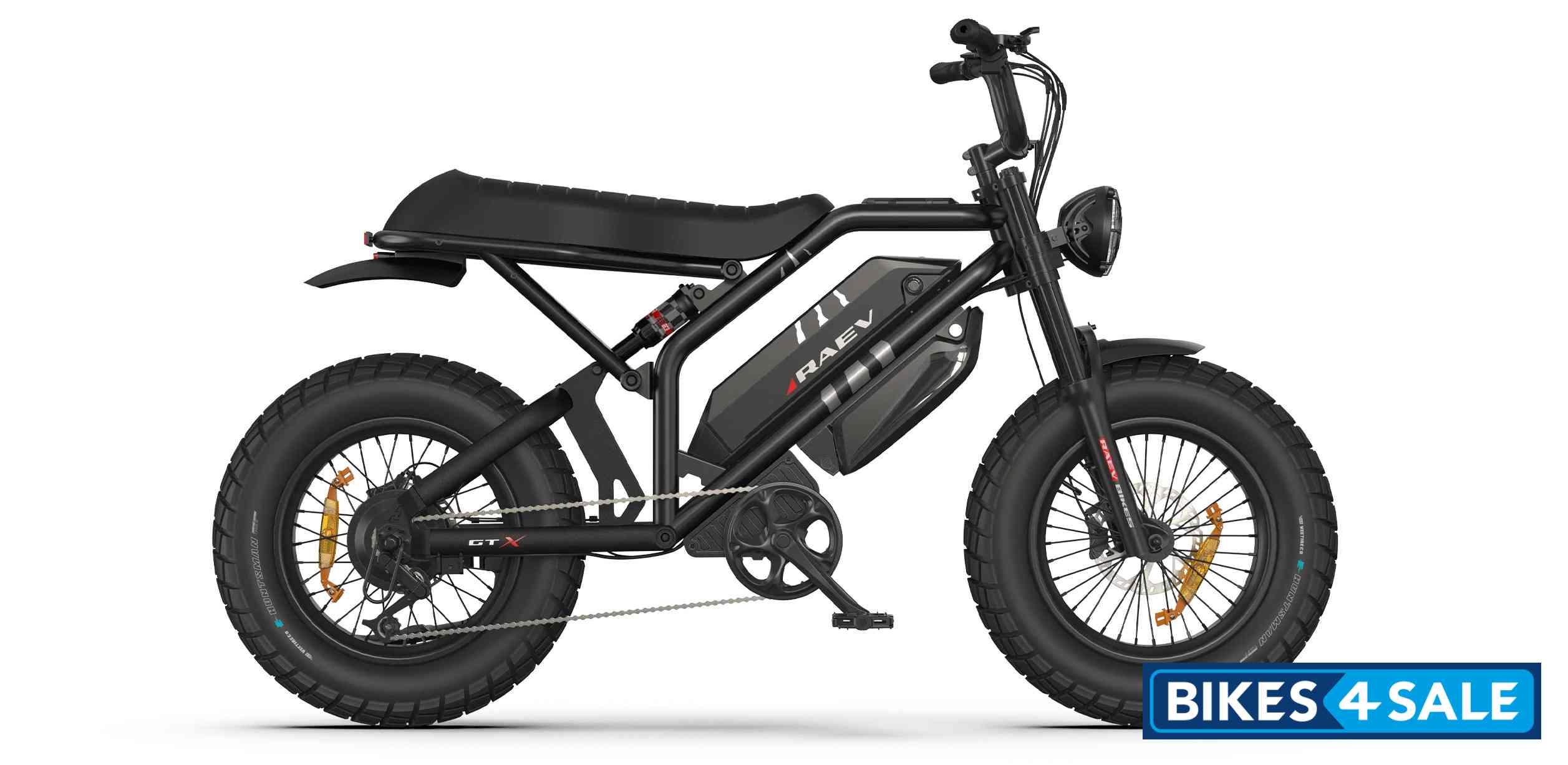

Metallic Black

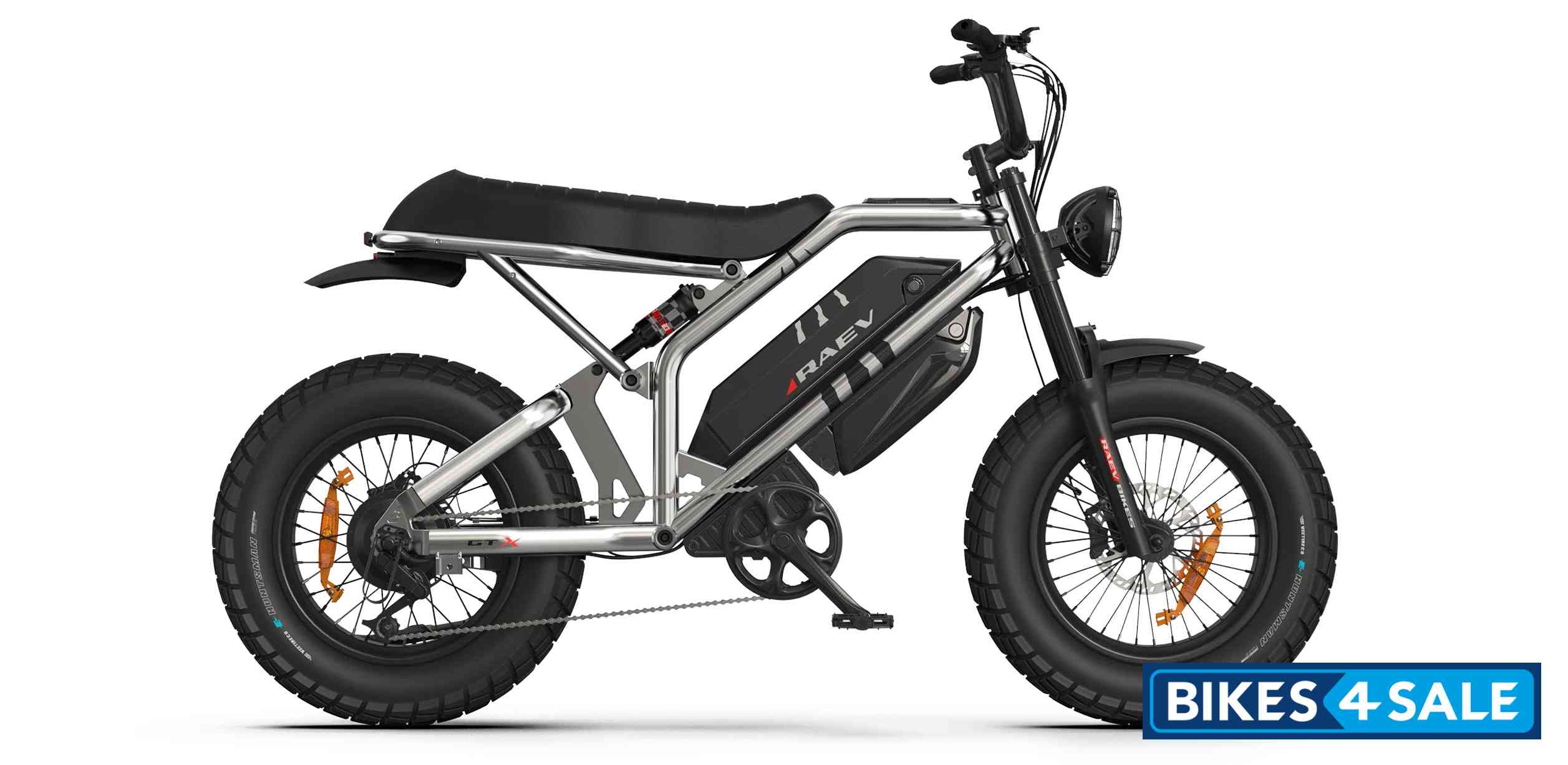

Mark II Limited Edition

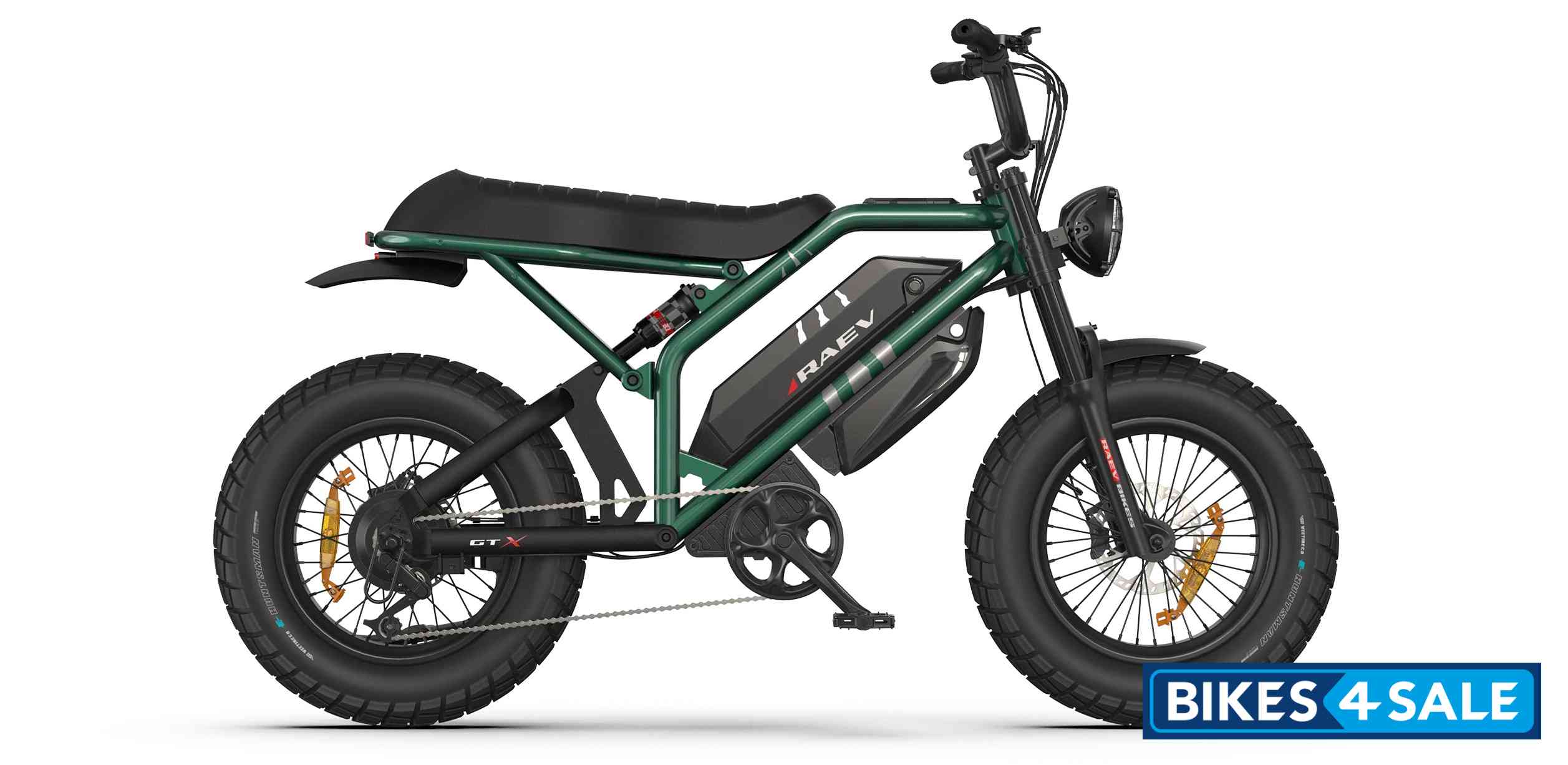

Metallic Green

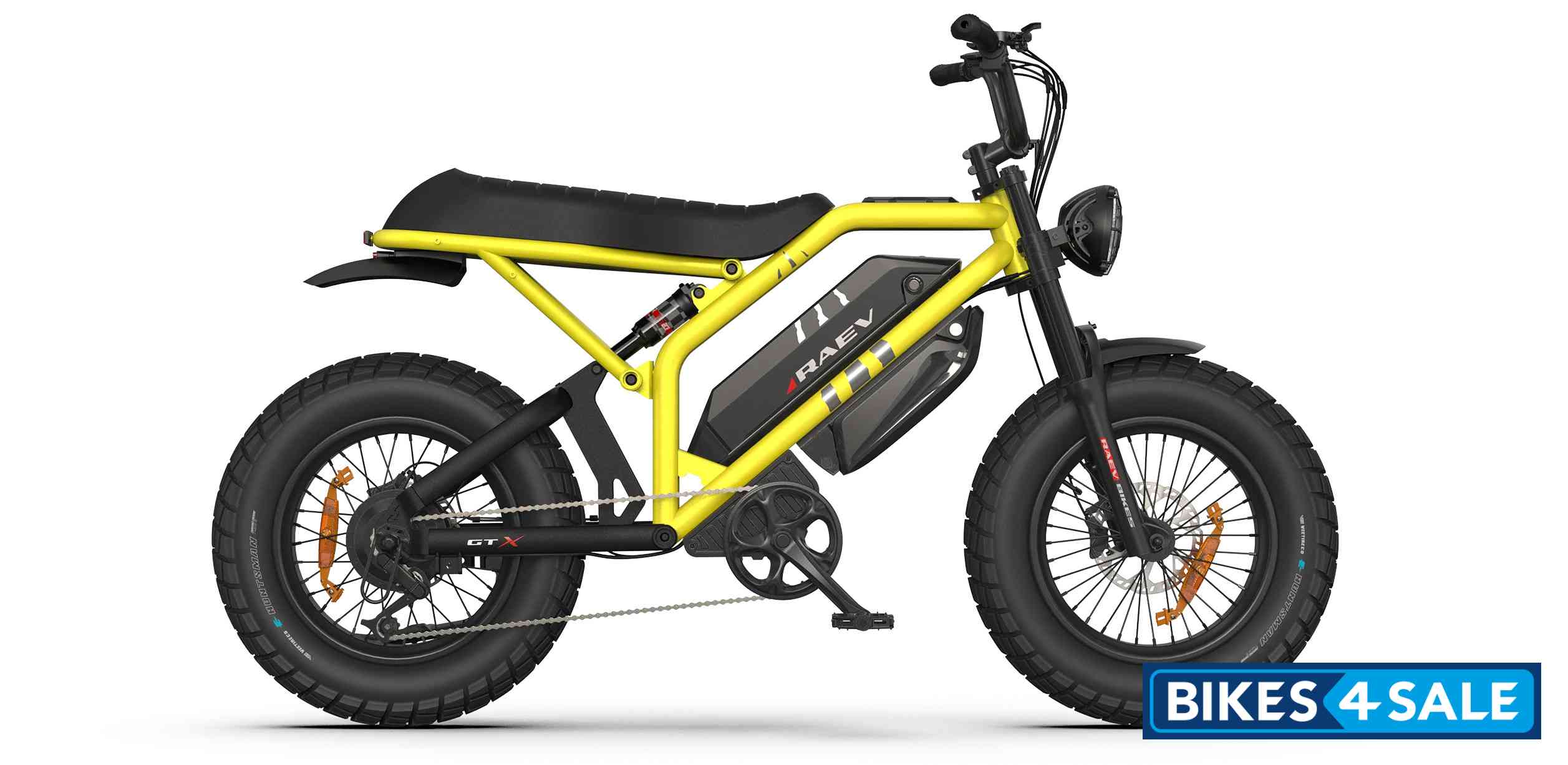

Yellow

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Load Carrying Capacity1580 kg
Top Speed56 kmph
StemAluminum D31.8 * H42mm
HandlebarAluminum 680mm Wide
GripDurable Ergonomic Grips
Crankset160mm Crank Length, 52T Chainring
Pedals9/16”Alloy, Composite Platform Pedals w/ Reflectors
Pedal Assist System - PAS3 Levels
Chain134 Links
Hub : Front36H Disc Thru-axle
Hub : RearNutted
Motor Details
52V 1000W (Peak 1500W) Brushless Rear Hub Motor
Range
80 km in Class-2 throttle-only mode, 160.934 km in Class-1 PAS mode
Charging Time
20Ah Battery: 7 Hours, 8Ah Battery: 2.5 Hours
Display
Easy Read 2.2” LCD Display
Electricals
Battery52V20Ah Battery (Samsung 21700 50E) 52V8AhBattery (Samsung 21700 40T)
Charger52V3A Fast Charger
Controller52V 30A 12 Enhanced MOSFET Sine Wave
Head LampMoto Style Round Headlight, 120 LUX
Tail LampIntegrated Taillight w/ Brake Light
Brakes

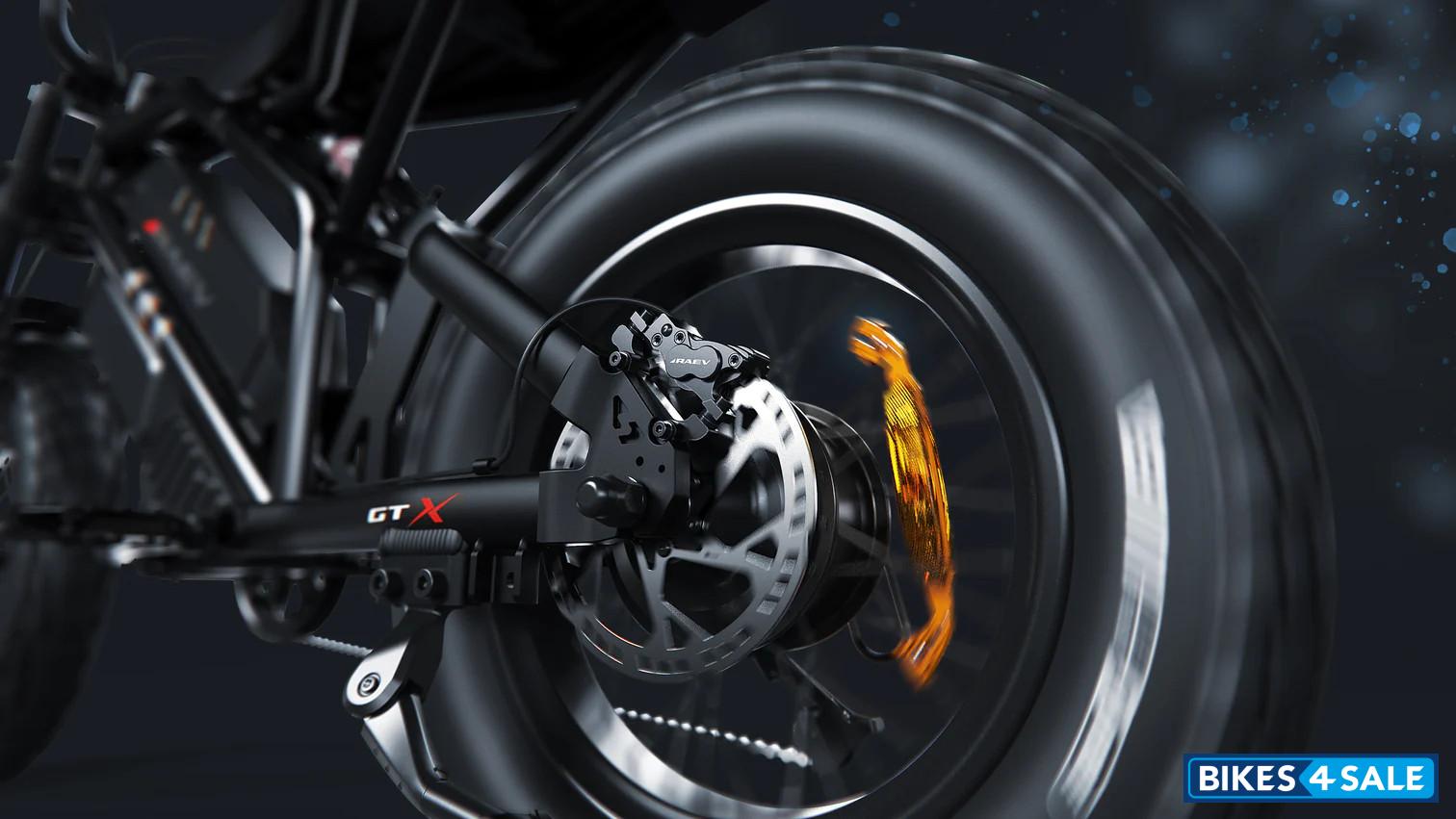

Front Brake4-Piston RAEV Hydraulic Disc Brakes w/ Electric Cut-Off Sensor
Rear Brake4-Piston RAEV Hydraulic Disc Brakes w/ Electric Cut-Off Sensor
Chassis and Suspension
Frame6061Aluminum Alloy

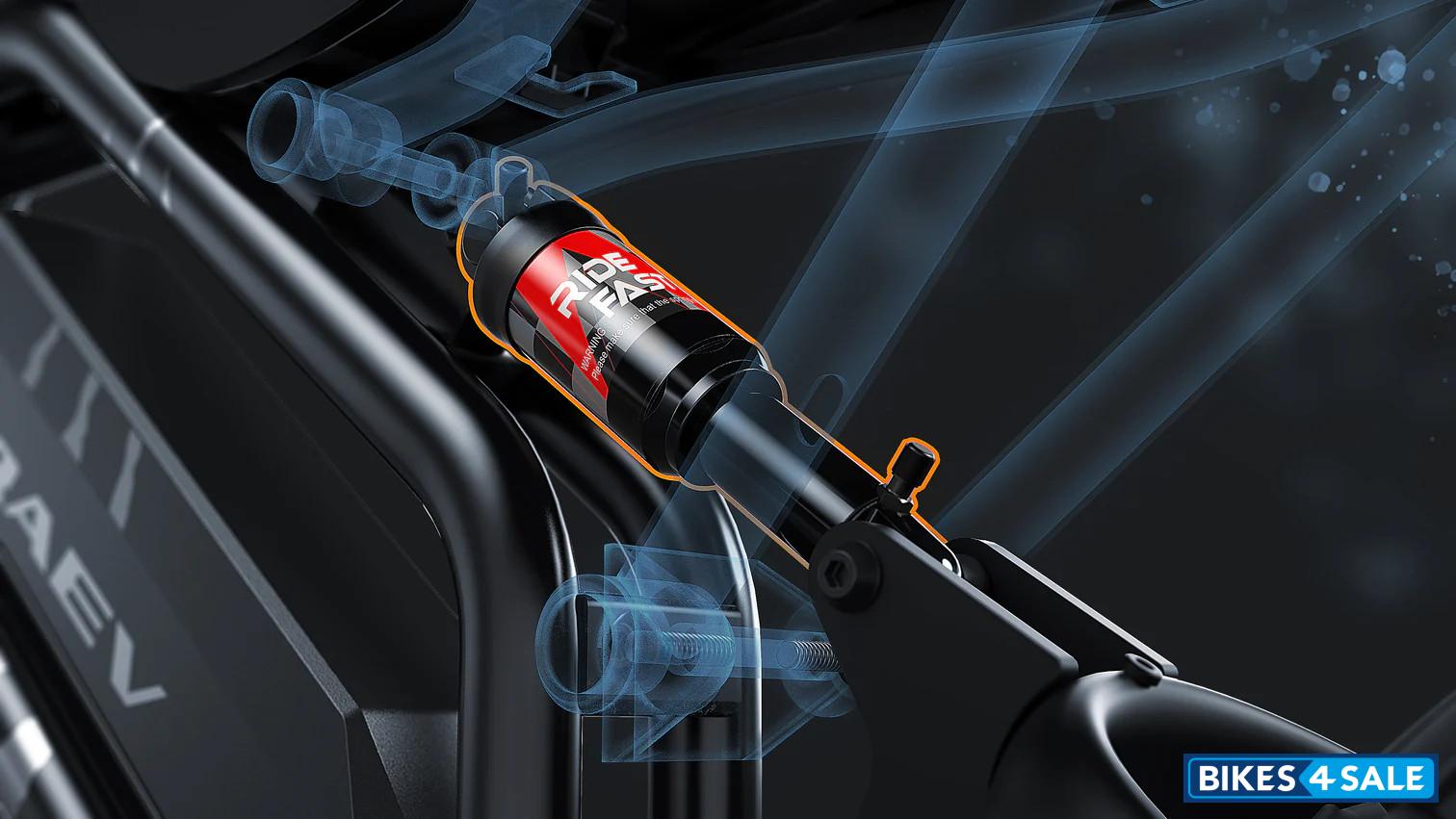

Front SuspensionHydraulic Suspension, 60mm Travel w/ Lockout& Adjustment
Rear SuspensionFASTACE Dual Air Chamber Air Shock
Tyres
Wheels / RimDouble Wall Aluminum 36H Front & Rear, Black Stainless 13-Gauge Front/ 12-Gauge Rear

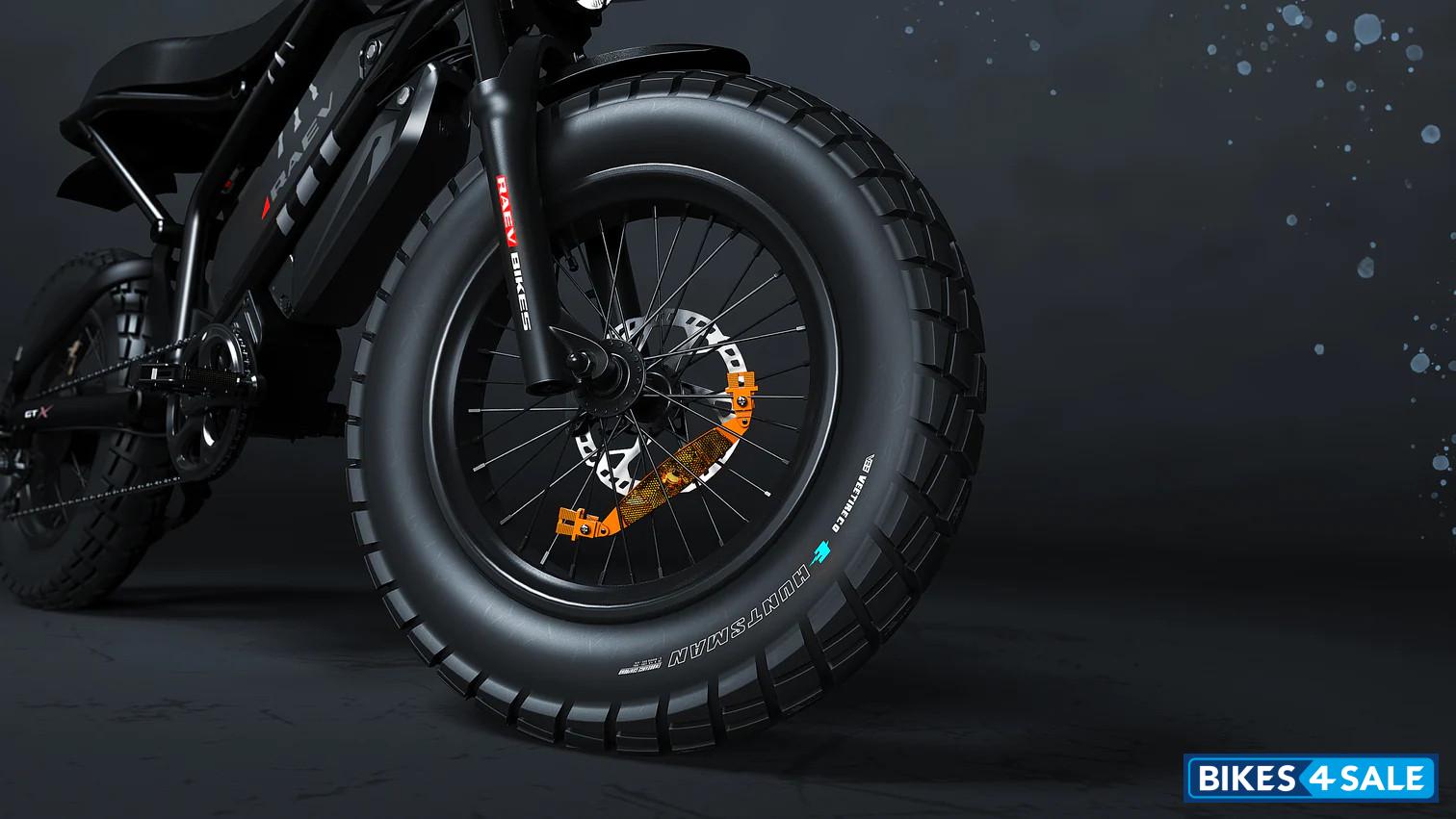

Front TyreVee E-Huntsman 20” * 4.0” Dual-Sport Fat Tire
Rear TyreVee E-Huntsman 20” * 4.0” Dual-Sport Fat Tire
Dimensions
Length1778 mm
Width690 mm
Height1089 mm
Seat Height830 mm
Wheelbase1186 mm
Weight41 kg
Additional Details
Thumb Twist Throttle
