Aluminum alloy high rise, 680 mm wide, 10.3" rise, 20 degree handlebar sweep
Seatpost
440 mm x 27.2 mm
Grip
Durable ergonomic rubber grips
Crankset
42T, 152 mm crank length, square-taper, steel chainring, alloy crank
Gear
Single speed
Saddle
Cushioned saddle with adjustable height backrest

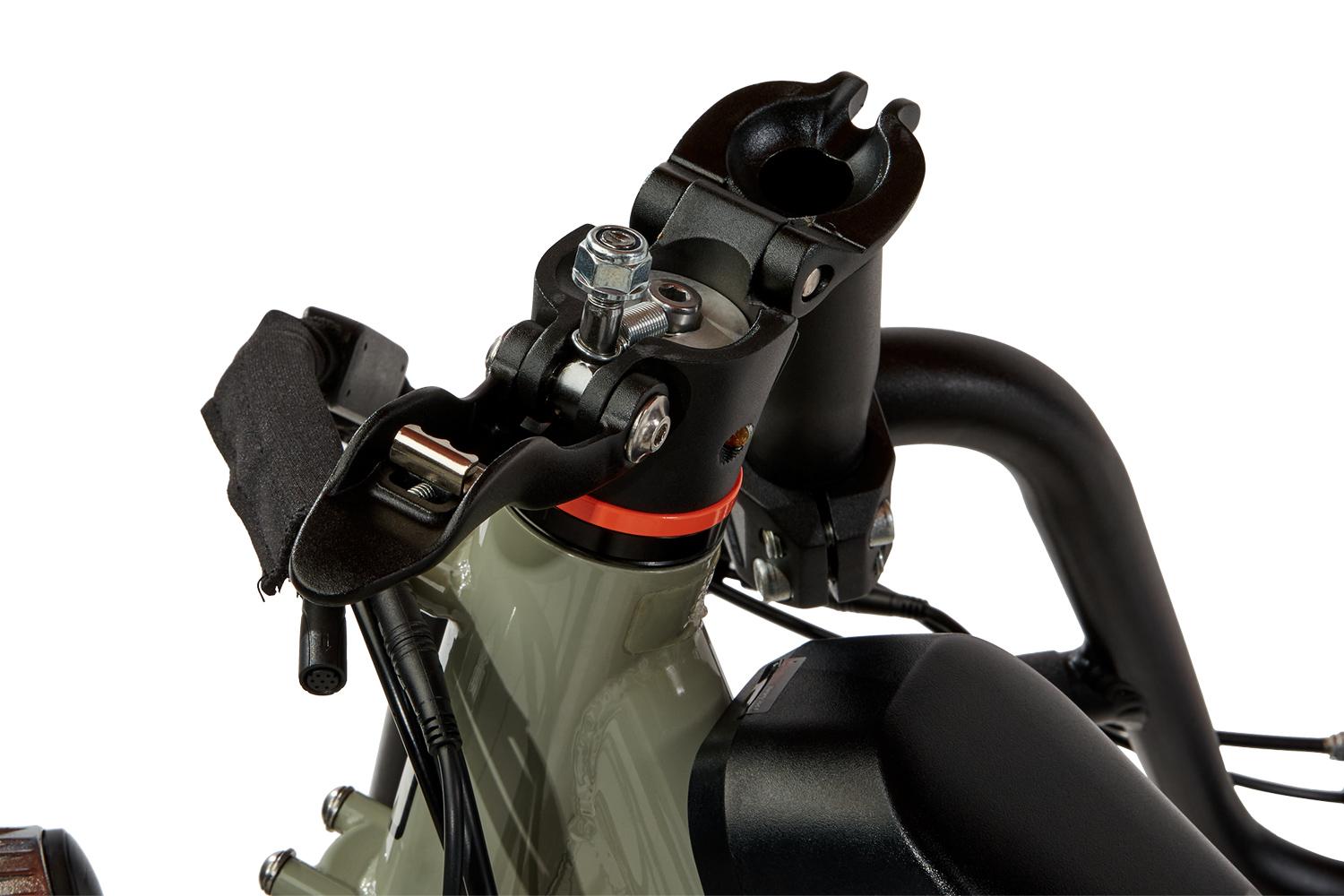

Headset
Semi-integrated, 1-1/8" straight steerer tube
Spoke
14 gauge stainless steel, black
Motor Details
750W brushless Rad Power Bikes geared hub motor, 5:1 planetary gear reduction. Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.
Range
Estimated 20-55+ miles per charge (32-88 km)
Electricals

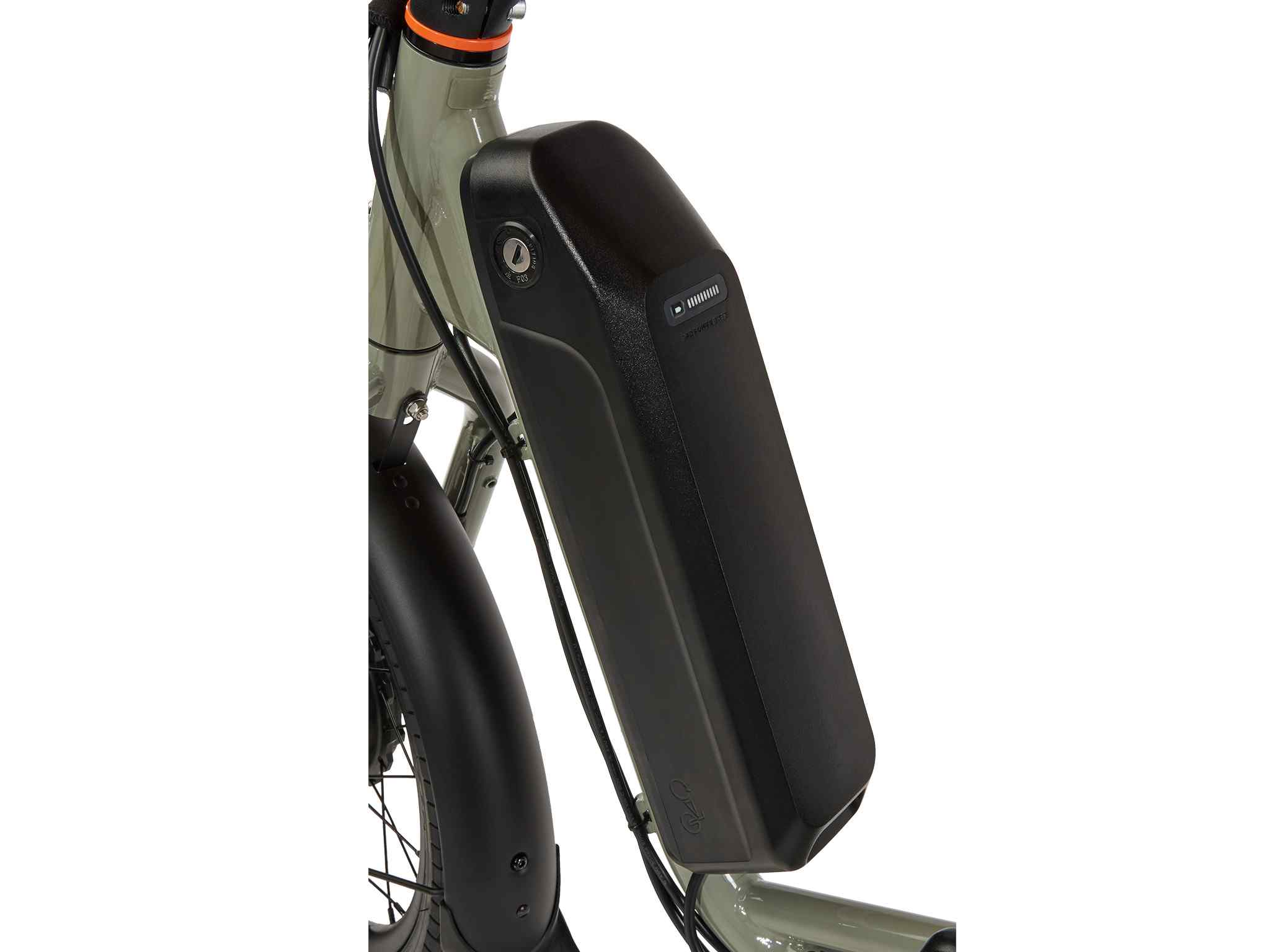

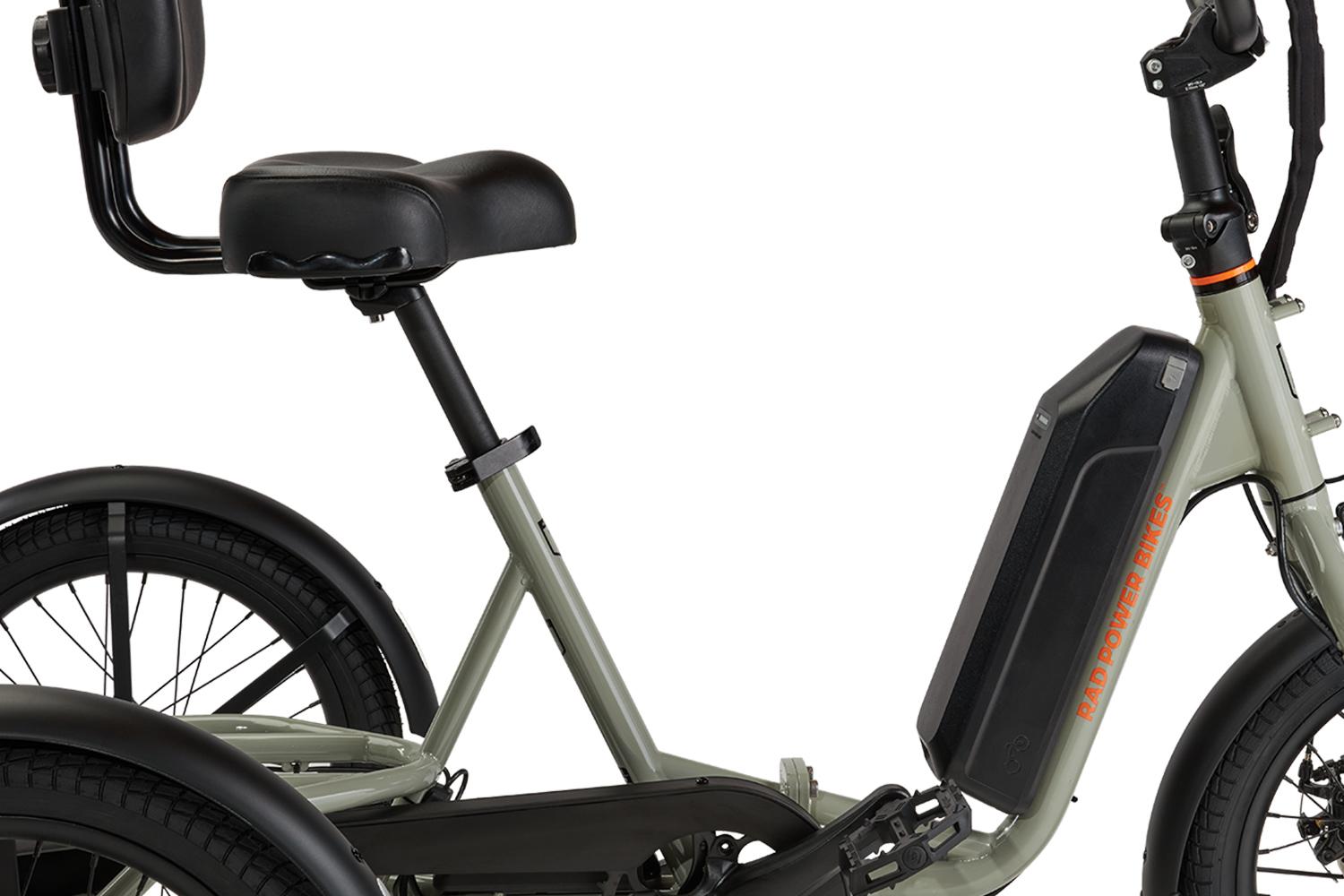

Battery
480 Wh
Charger
48V, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
Controller
Custom Rad Power Bike controller; 48V, 750W

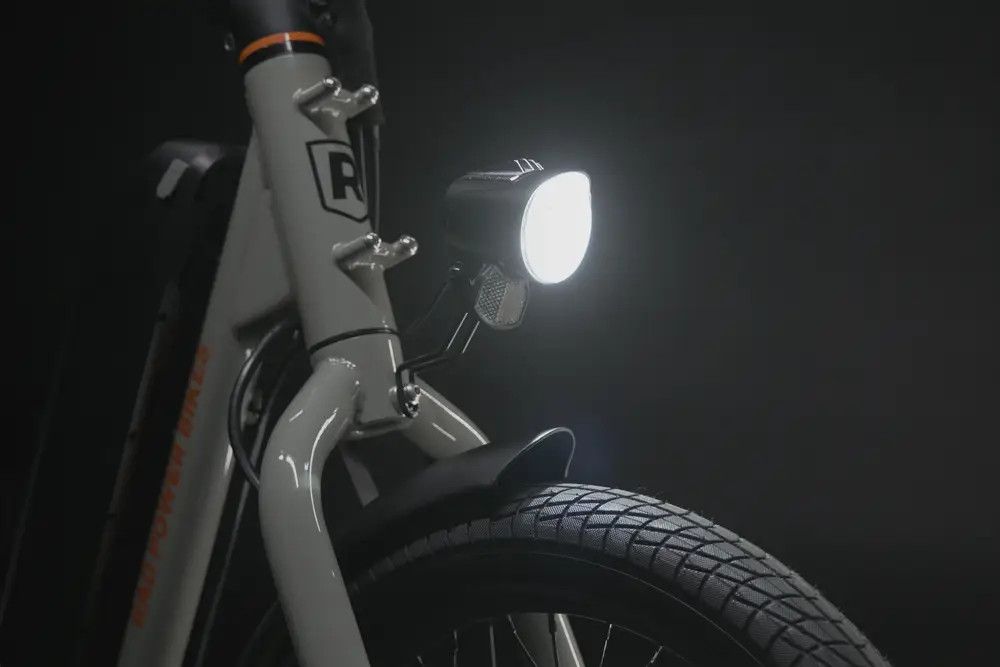

Head Lamp
LED headlight
Tail Lamp
LED
Brakes
Front Brake
Mechanical disk brake
Rear Brake
Coaster (foot-operated) brake
Brake Lever
Single aluminum alloy comfort grip lever with motor cutoff switch and orange parking brake
Chassis and Suspension
Frame
Chromoly steel
Tyres
Wheels / Rim
Rims: Single wall aluminum, 32 hole
Rim width: 30 mm
Front Tyre
Exclusive Rad Power Bikes by Kenda Kontact 18" x 2.25", K-Shield puncture-resistant liner
Rear Tyre
Exclusive Rad Power Bikes by Kenda Kontact 18" x 2.25", K-Shield puncture-resistant liner
Additional Details

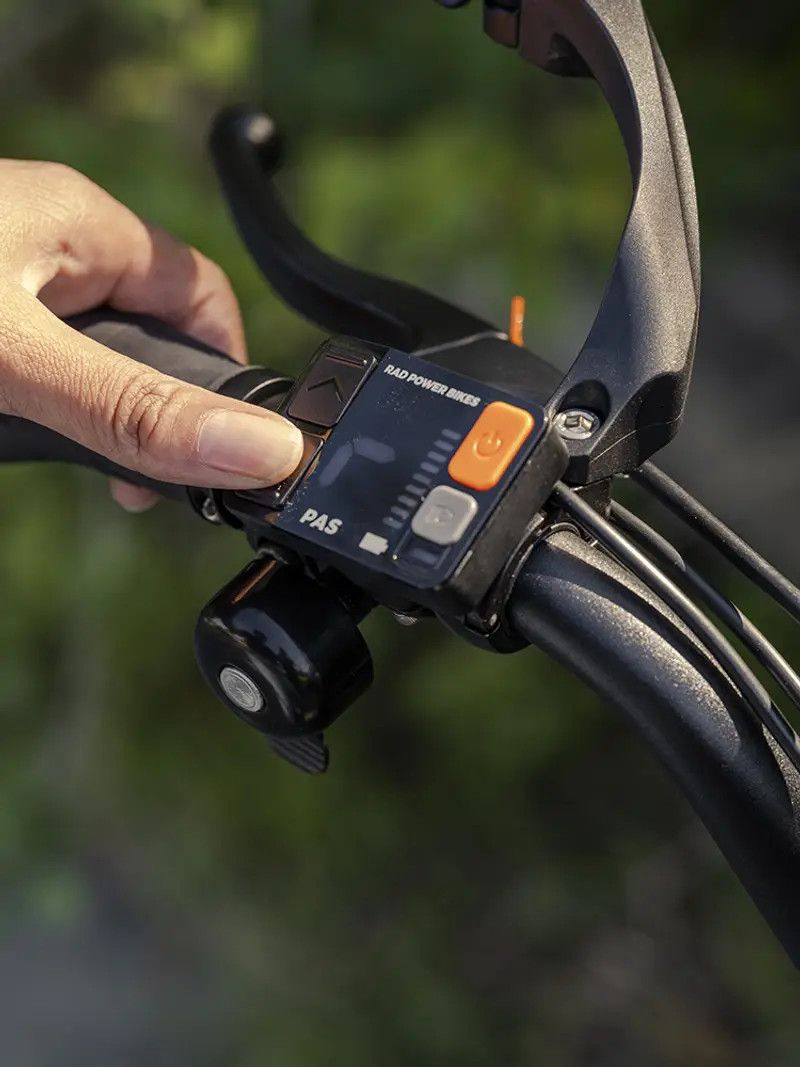

Pedal Assist: Intelligent 5 level pedal assist with low profile cadence sensor
Throttle: Half twist throttle
Brake Rotors C-star 180 mm on front wheel
Brake Pad Material: Semi-metallic
Freewheel:16 tooth freewheel on rear axle
Racks: Rear: Integrated, 60 lb carrying capacity
Seatpost Clamp: Quick release
