The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| United States, Seattle | $ 1599 | -- |
Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Rad Power Bikes RadExpand 5.

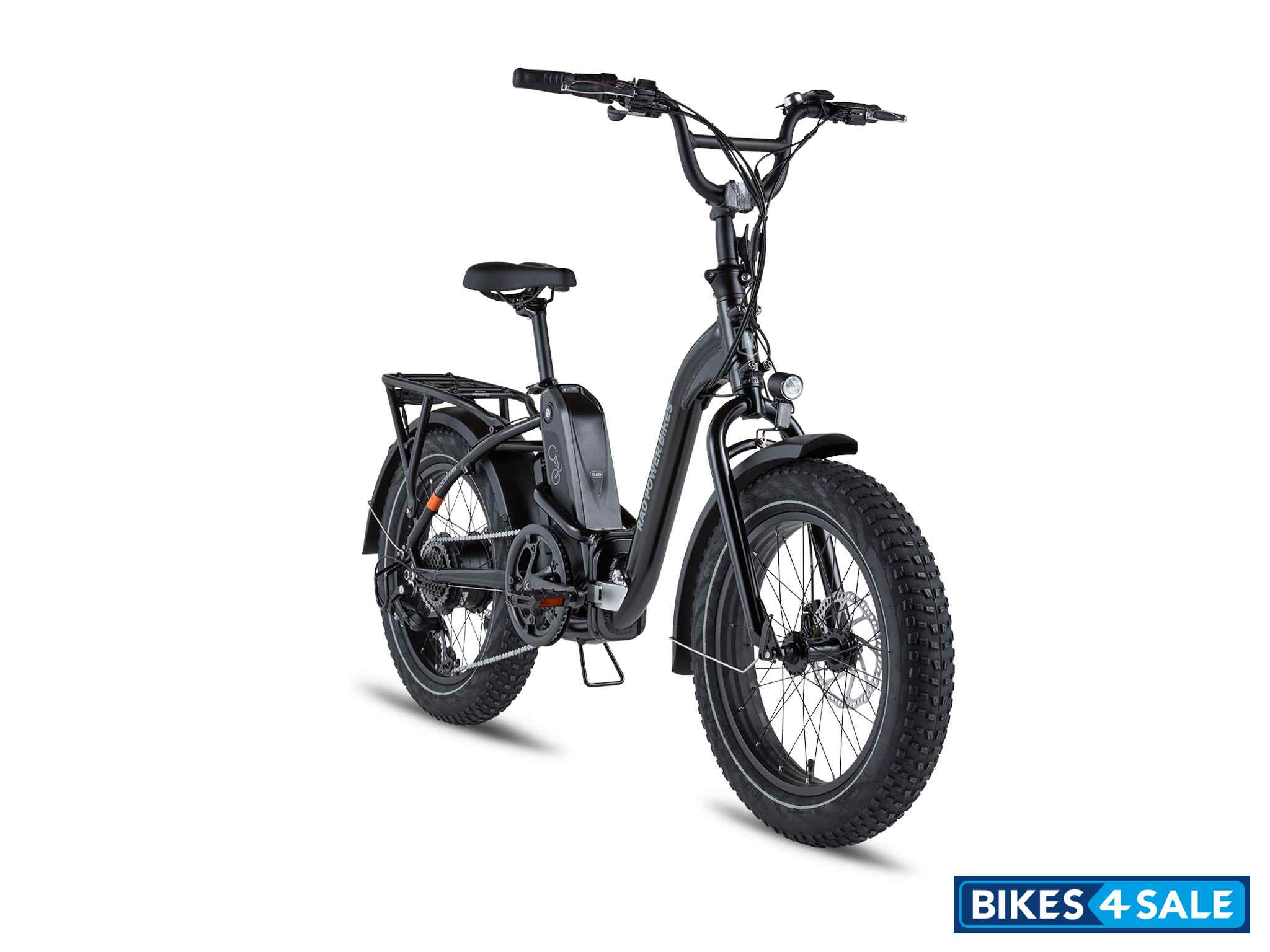

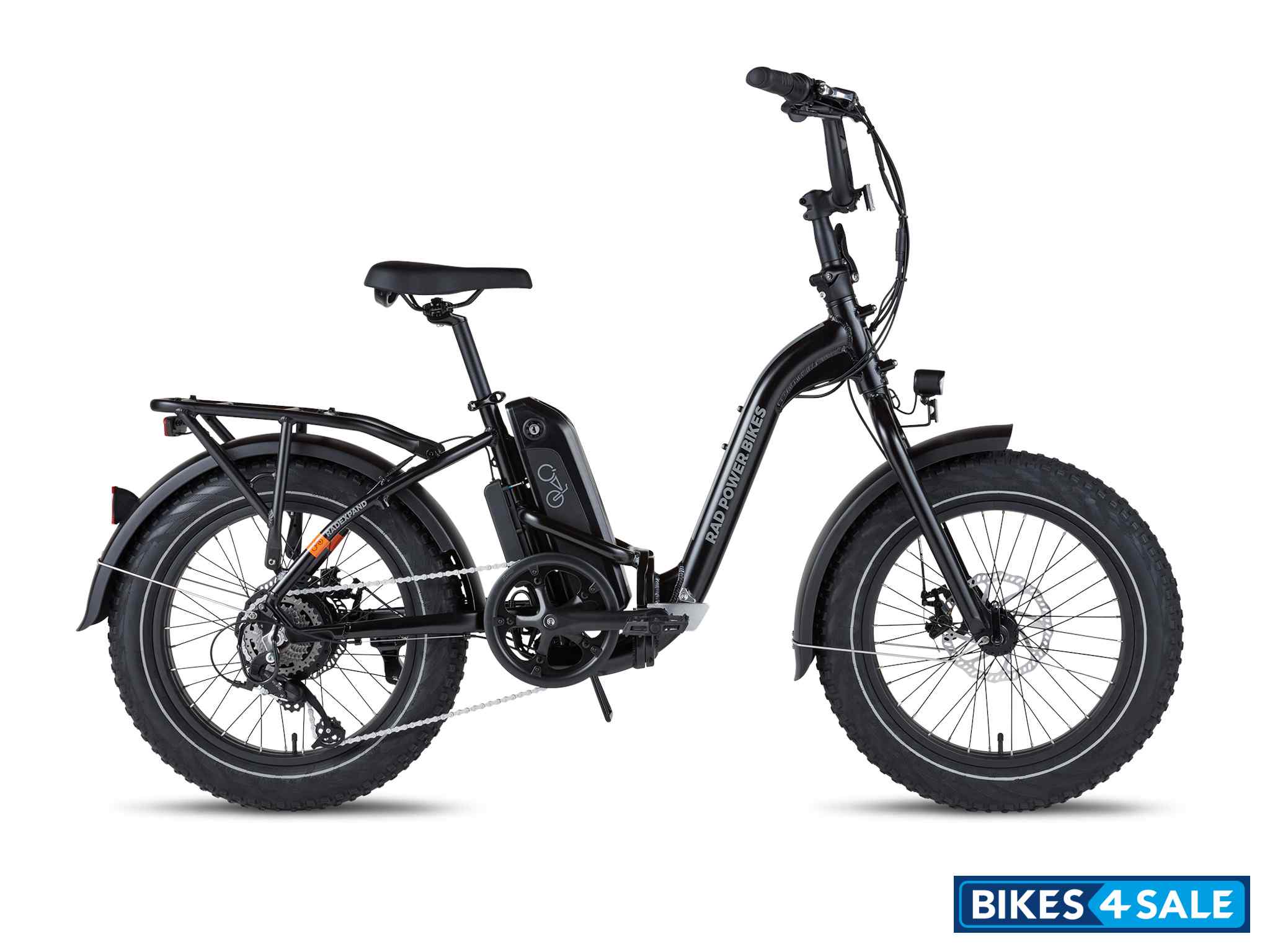

Black

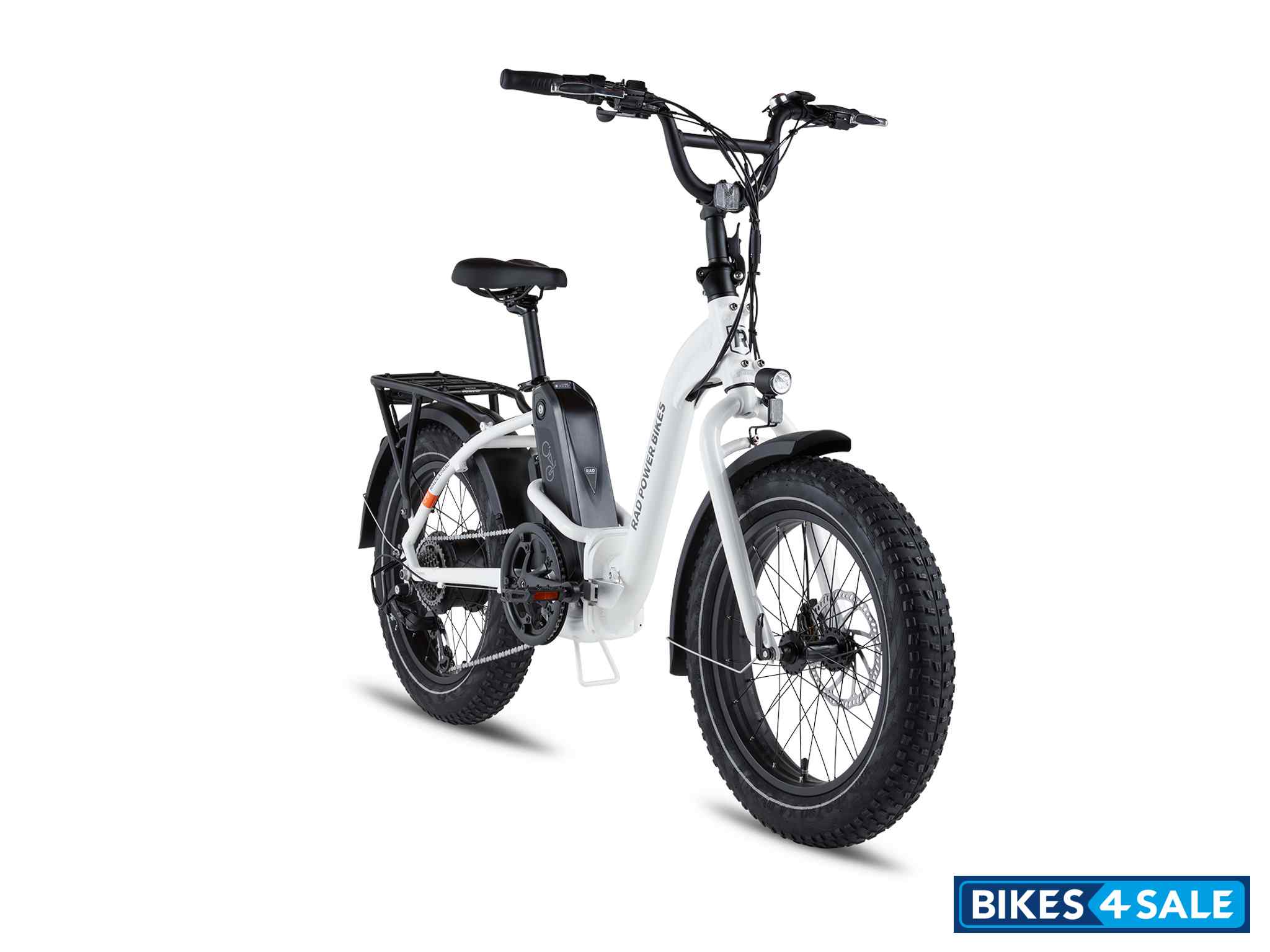

White
| Vehicle Type | Bicycle |
| Fuel | Electric |
| Maximum Power | 750W |
| Top Speed | 32-45 kmph |
| Stem | 45 mm length, + 3º rise. |
| Handlebar | Alloy, 27" wide, 6.9" rise |
| Fork | Rad custom steel 135 mm hub width, 9 mm quick release |
| Seatpost | Aluminum alloy, 390 mm x 27.2 mm |
| Grip | Ergonomically designed, made of soft yet durable rubber |
| Crankset | 48T, 170 mm forged alloy, dual-sided chainring guard |
| Pedals | Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading |
| Pedal Assist System - PAS | Low-Profile Cadence Sensing Pedal Assist, Half-Grip Twist Throttle |
| Chain | KMC Z7, 124 links |
| Shifters | MicroShift TS71-7 -R under bar thumb shifter, 7-speed |
| Gear | 1 x 7-speed |
| Saddle | Rad Power Bikes with lifting handle |
| Headset | Semi-integrated, 1-1/8" straight steerer tube |
| Derailleur : Rear | 7-Speed MicroShift RD-M26 |
| Spoke | 12-gauge stainless steel, black |
| Stand | Side-mounted, adjustable lean angle |
| Motor Details |
|---|
| 750W brushless geared hub motor, 5:1 planetary gear reduction. Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions. |
| Range |
|---|
| 25 - 45 miles per charge (estimate) |
| Display |
|---|
| Rad Power Bikes custom LED display with Charge indicator, pedal assist level / error display, headlight/taillight indicator and more |
| Electricals | |
|---|---|
| Battery | 672 Wh |
| Charger | 48V, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
| Controller | Rad Power Bikes controller, 48V, 750W |
| Head Lamp | Rad Power Bikes branded standard LED |
| Tail Lamp | Integrated taillight with brake light indicator functionality |
| Brakes | |
|---|---|
| Front Brake | 180 mm |
| Rear Brake | 180 mm |
| Brake Lever | Rad Power Bikes approved aluminum alloy levers with motor cutoff switch |
| Chassis and Suspension | |
|---|---|
| Frame | 6061 aluminum |
| Tyres | |
|---|---|
| Wheels / Rim | Aluminum alloy, 36 hole |
| Front Tyre | CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip |
| Rear Tyre | CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip |
| Dimensions | |
|---|---|
| Length | 1727 mm |
| Height | 406 mm |
| Seat Height | 787 mm |
| Wheelbase | 1143 mm |
| Additional Details |
|---|
| Throttle : Half twist grip throttle Wiring : Water resistant connectors and wiring harness Brake Calipers : Mechanical caliper Brake Pad : Semi-Metallic compound Fenders : Full coverage front and rear fenders with hardware included Freewheel : 7-speed freewheel 14-32T Racks Front : Optional, 30 lb (14kg) carrying capacity Rear : Integrated, 55 lb (25kg) carrying capacity Seatpost Clamp : 31.8 mm diameter |
