Price, features and specs
Rate Orange 2023 Stage 6 Evo Factory:

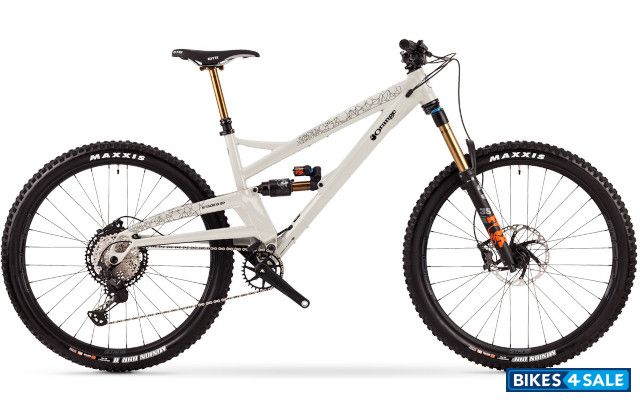

Orange 2023 Stage 6 Evo Factory Price
£
6500
[London, United Kingdom]
The given price can change depending on the colour, accessories and other features.
Country, City |
Showroom Price |
On Road Price |
United Kingdom, London |
£ 6500 |
-- |
Buy new Orange 2023 Stage 6 Evo Factory
Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Orange 2023 Stage 6 Evo Factory.
For Exciting Offers, Book a Test Drive
Features
- New Aggressive Evo geometry optimised for 150mm front/140mm rear travel
- Asymmetrical swingarm with increased longitudinal stiffness
- New Progressive suspension kinematics.
- More neutral pivot location allowing less drivetrain/suspension interaction
- Low position Asymmetric pivot – neutral suspension feel
- Off-set pivot for chainring clearance
- Geometry for reduced offset fork
- New Improved dropout with UDH gear hanger
- Boost 148 rear hub spacing
- New Top tube accessory mounts
- Bottle cage mounts
- Internal cable/hose routing
Colours
Gloss Cyan Blue
Fizzy Orange
Norlando Grey
Matt Charcoal Grey
Smoke White
British Racing Green
Gloss Laser Blue
Gloss Silver Shadow
Technical Specifications
Vehicle Type | Bicycle |
Seating Capacity | 1 |
Stem | Hope M35 x 35mm Black |
Handlebar | Renthal FatBar M35 800mm |
Fork | Fox Factory 36 Float 150mm 29 |
Seat | Strange Bolted |
Seatpost | Fox Factory Transfer 150/175mm Drop |
Grip | Strange Grappler Lock-On |
Crankset | E13 Helix 32t 170mm |
Chain | KMC 12spd |
Shifters | Shimano XT 12spd |
Saddle | SDG Strange Bel Air III |
Headset | Cane Creek 49mm for Tapered Steerer |
Hub : Rear | 12 x 148mm Boost |
Cassette | Shimano XT 10-51T 12spd |
Bottom Bracket | E13 |
Brakes |
---|
Front Brake | Shimano XT Trail 203/180 |
Chassis and Suspension |
---|
Frame | 6061-T6 Monocoque UK Formed Custom Aluminium Tubing |
Rear Suspension | Fox Float X2 Factory 210x55 |
Tyres |
---|
Wheels / Rim | Spoke |
Front Tyre | Maxxis Minion DHF 2.5 3c EXO+ / DHR II 2.4 3c EXO+ 29 |
Dimensions |
---|
Wheelbase | 1272 mm |
Additional Details |
Swingarm: Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Rear Mech: Shimano XT 12spd
Wheelset: Stans Flow Mk4 + Hope Pro 4 (Black) 29
Seatpost : 30.9 mm
Seatclamp : 34.9 mm
BB Shell: 73 mm ISCG05
Tapered Headset: Upper: ZS49/28.6
Lower: EC49/40 |
Vehicle Warranty |
5 year frame warranty with Limited Lifetime Crash Replacement |
