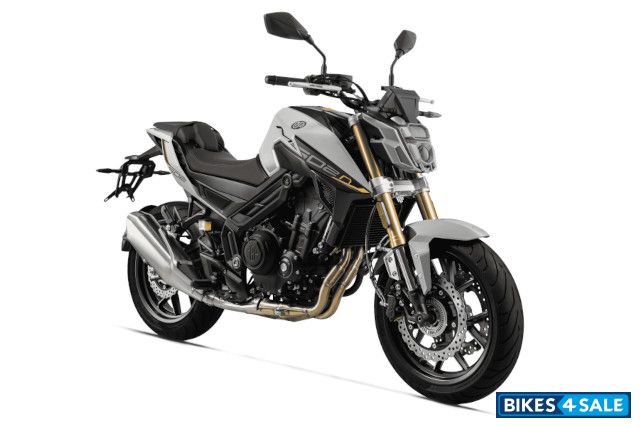

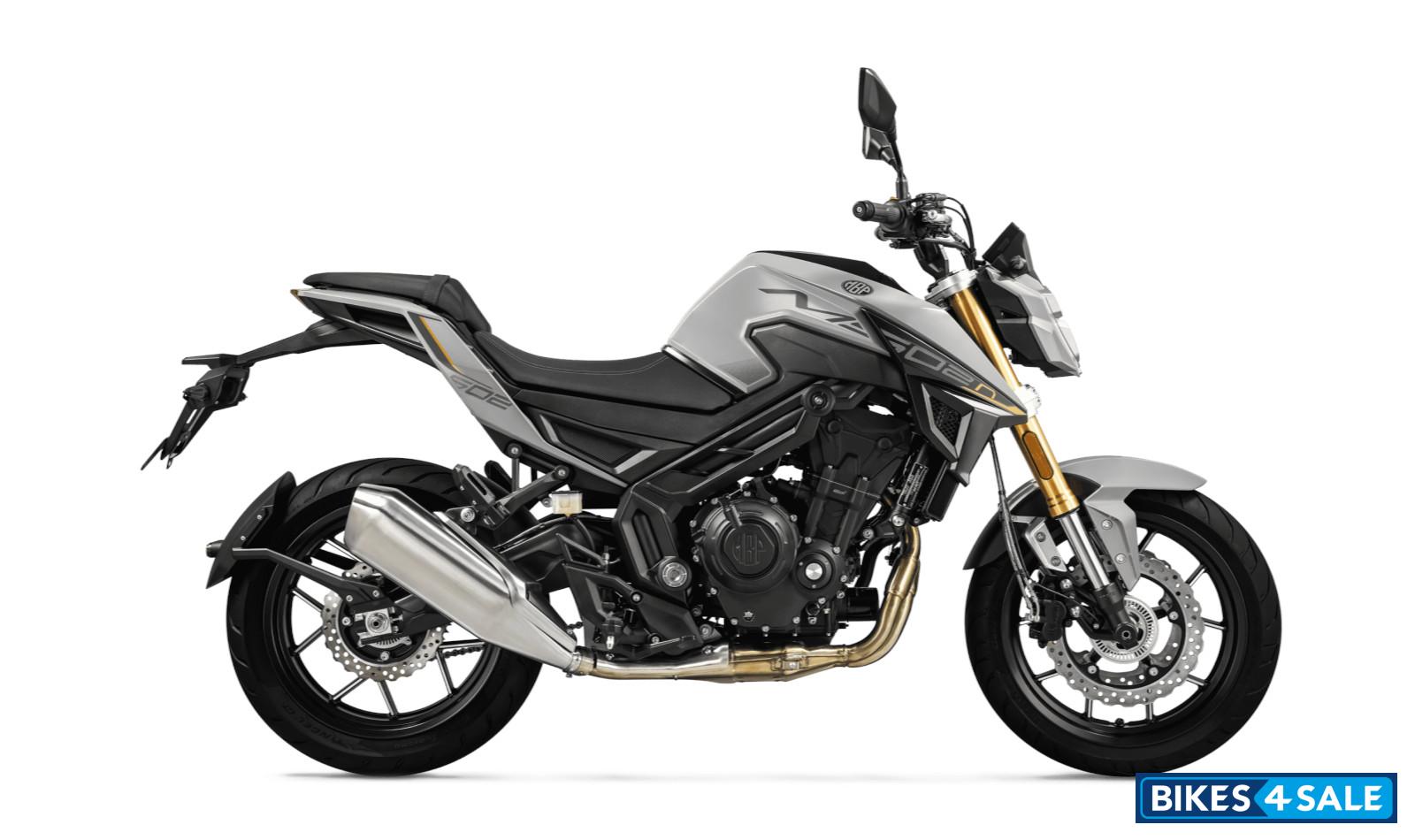

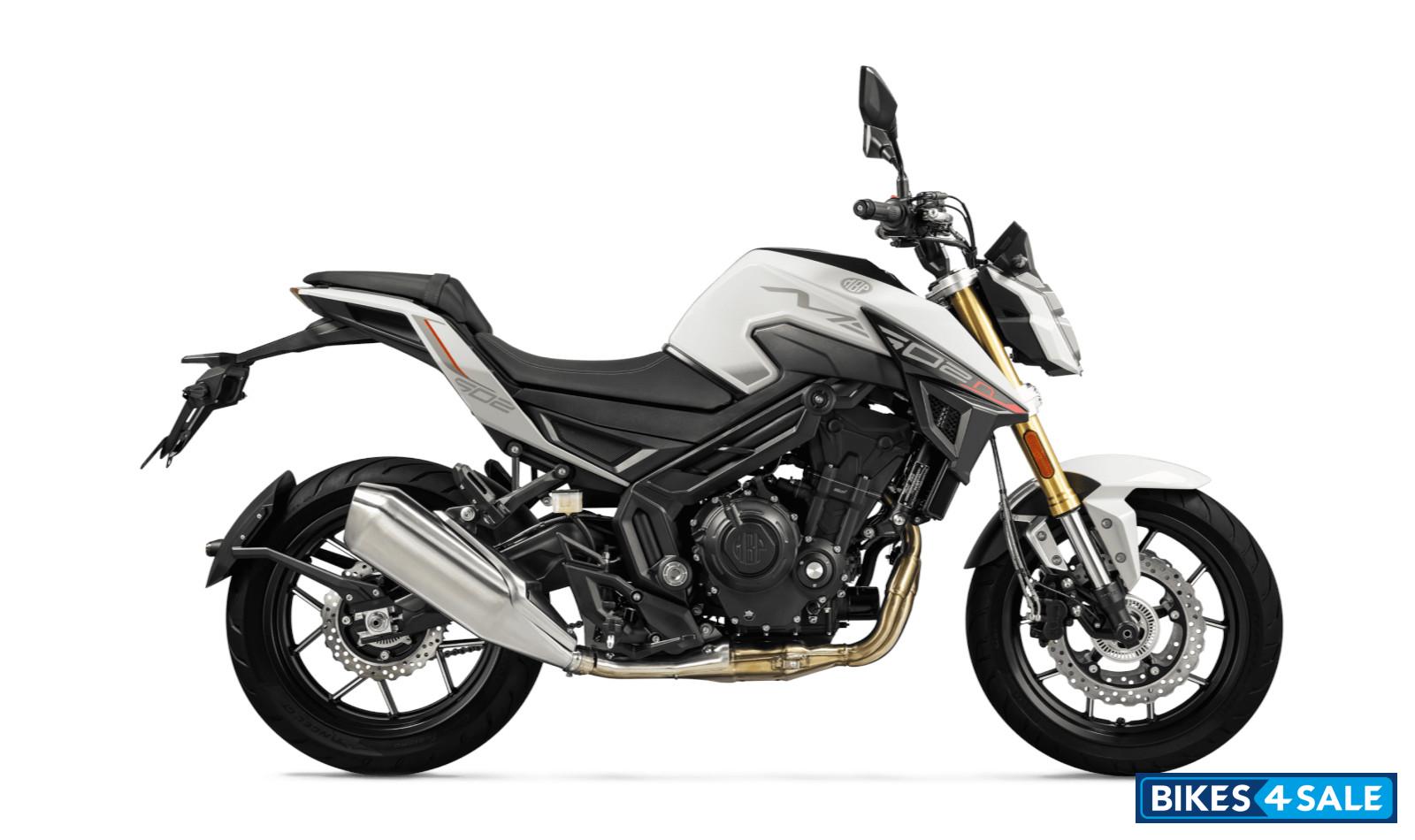

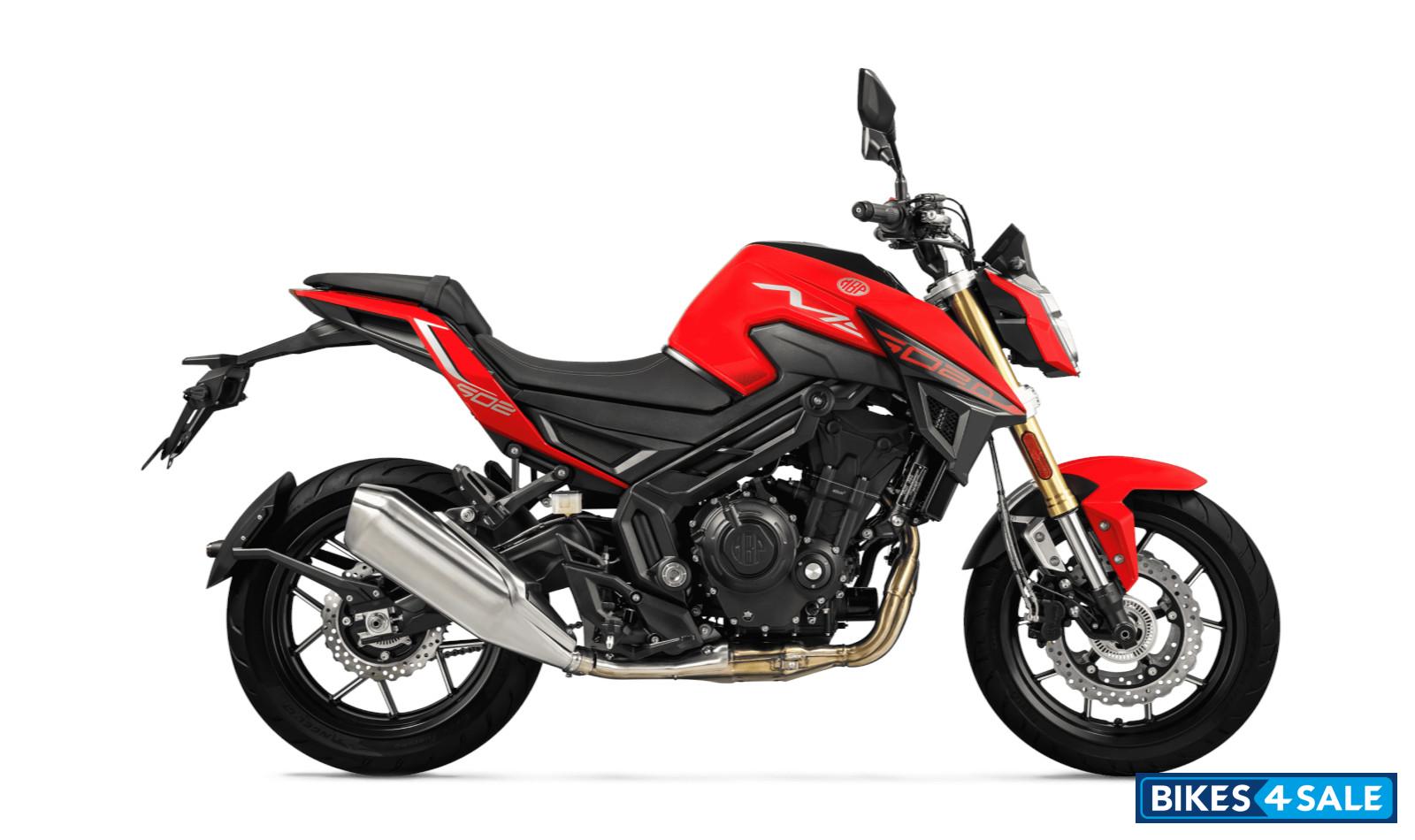

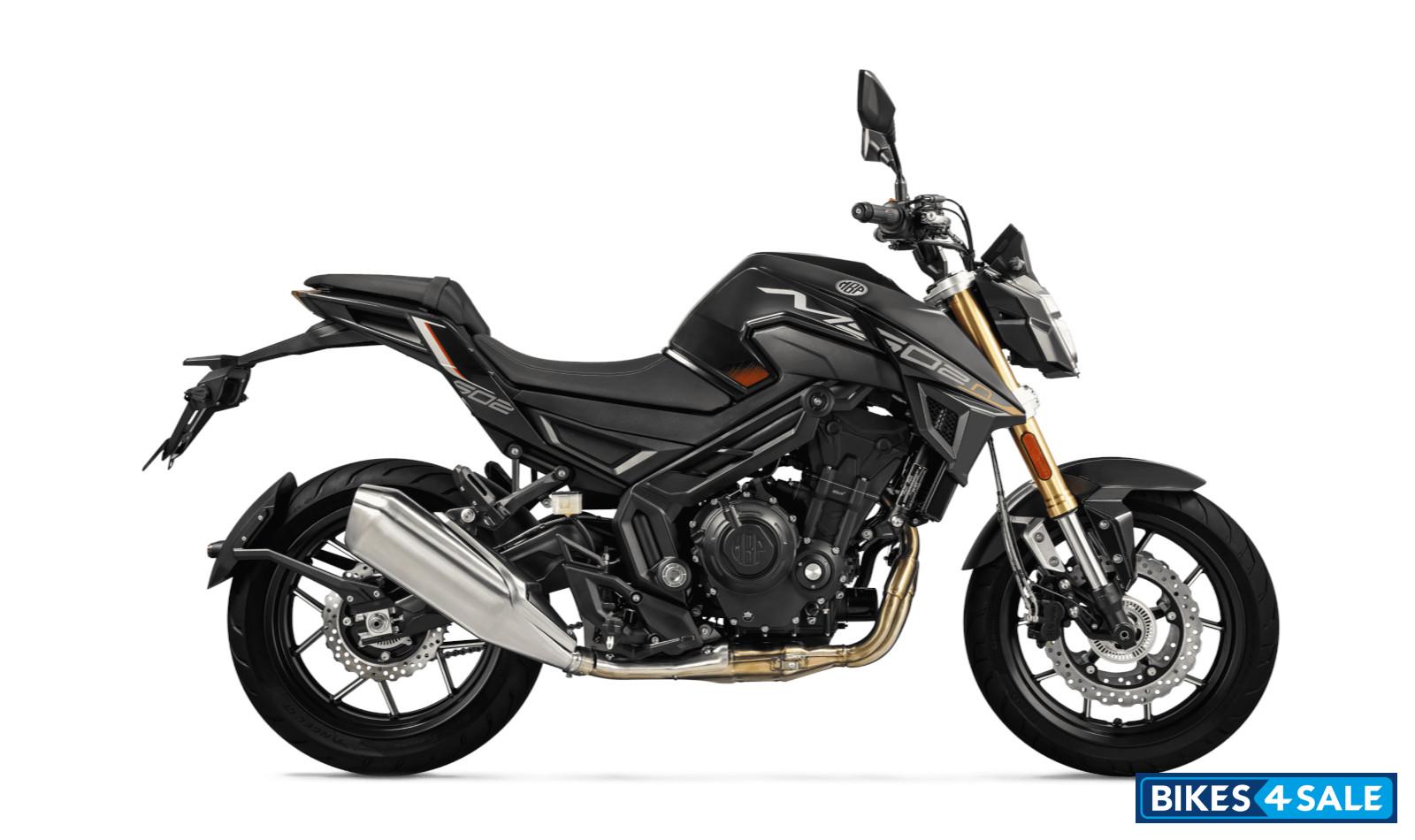

The Morbidelli M502N is a naked machine built for pure riding pleasure. Its 486 cc twin-cylinder engine delivers smooth yet commanding power, making every twist of the throttle exhilarating.
Not Available
Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Morbidelli M502N.
| Vehicle Type | Motorcycle |
| Fuel | Petrol |
| Engine Displacement | 486.00 cc |

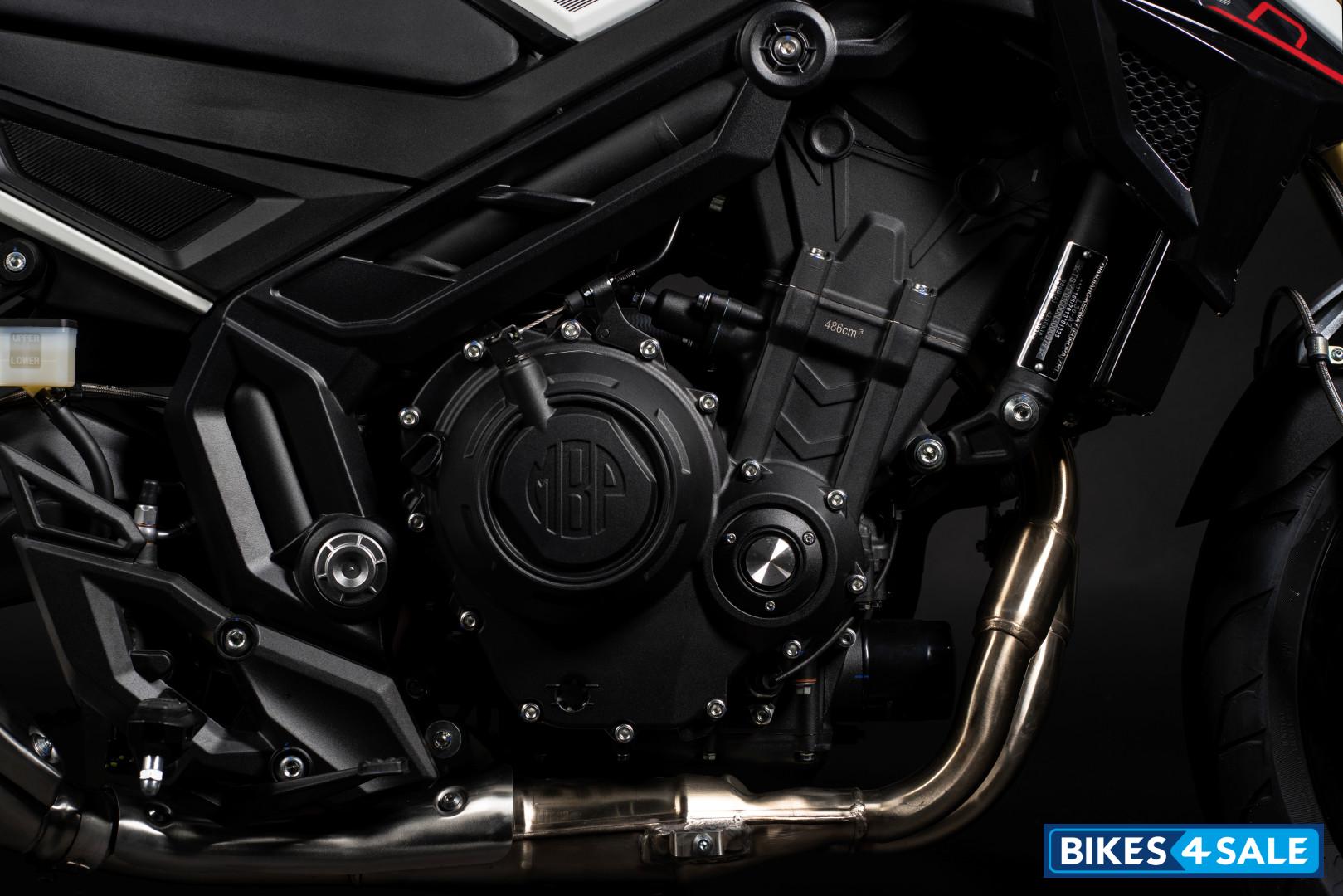

| Engine Details | 2-cylinder/4-stroke/8-valve/DOHC |
| Engine Starting | Electric |
| Bore x Stroke | 68mm x 67mm |
| Compression Ratio | 10.7:1 |
| Engine Lubrication | Pressure splash lubrication |
| Clutch | Wet multi-plate |
| Fuel System | Bosch EFI |
| Ignition | TCI |
| Cooling System | Liquid-cooled |
| Maximum Power | 46.94 hp @ 8500 rpm |
| Maximum Torque | 45.0 Nm @ 6750 rpm |
| Load Carrying Capacity | 185 kg Max Load Capacity |
| Transmission | 6-speed |
| Drivetrain | Chain |
| Top Speed | 160 kmph |
| Display |
|---|
| 4.2” TFT LCD display |
| Electricals | |
|---|---|
| Battery | 12V, 8Ah, maintenance free |
| Head Lamp | LED headlights |

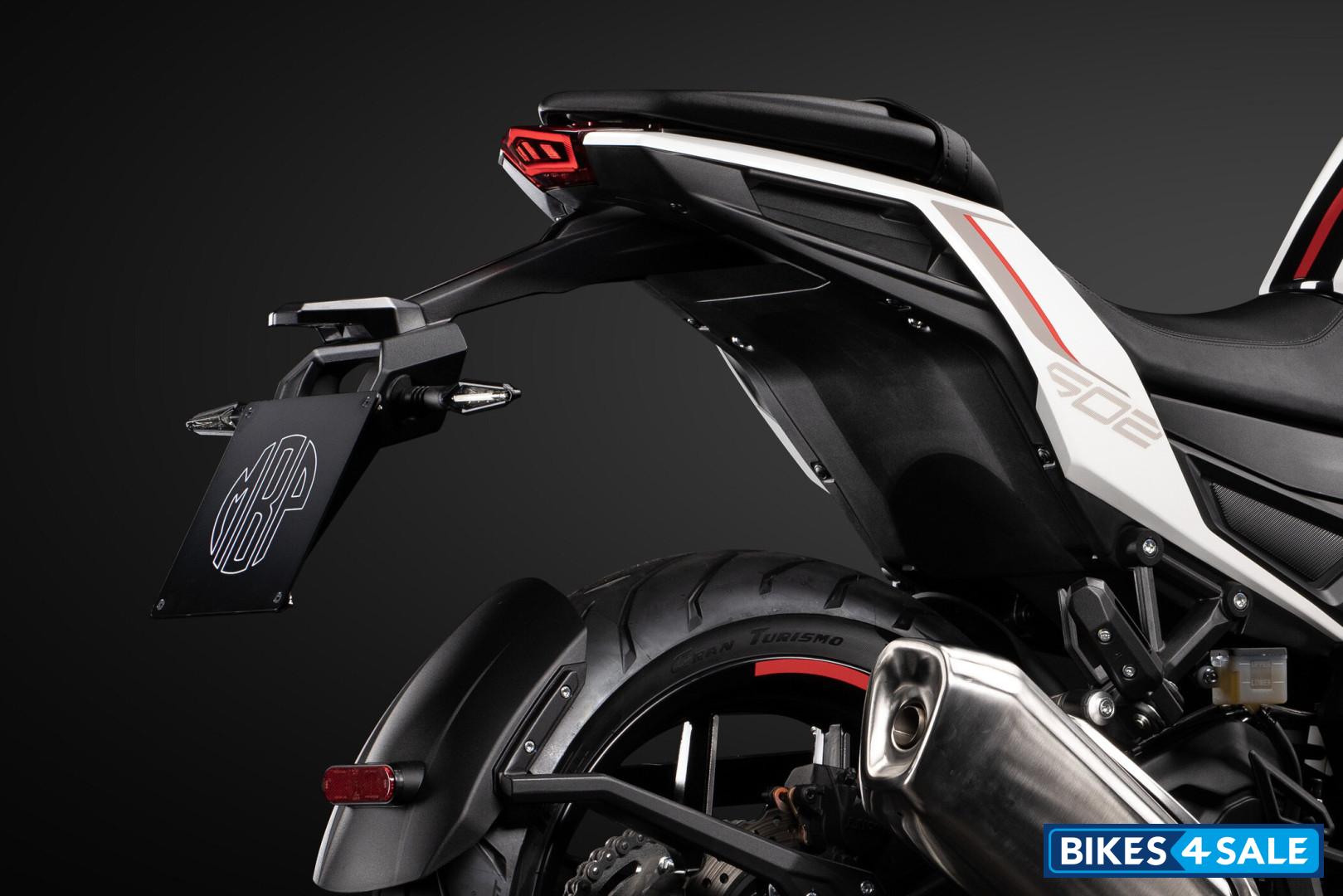

| Tail Lamp | LED taillights |
| Brakes | |
|---|---|

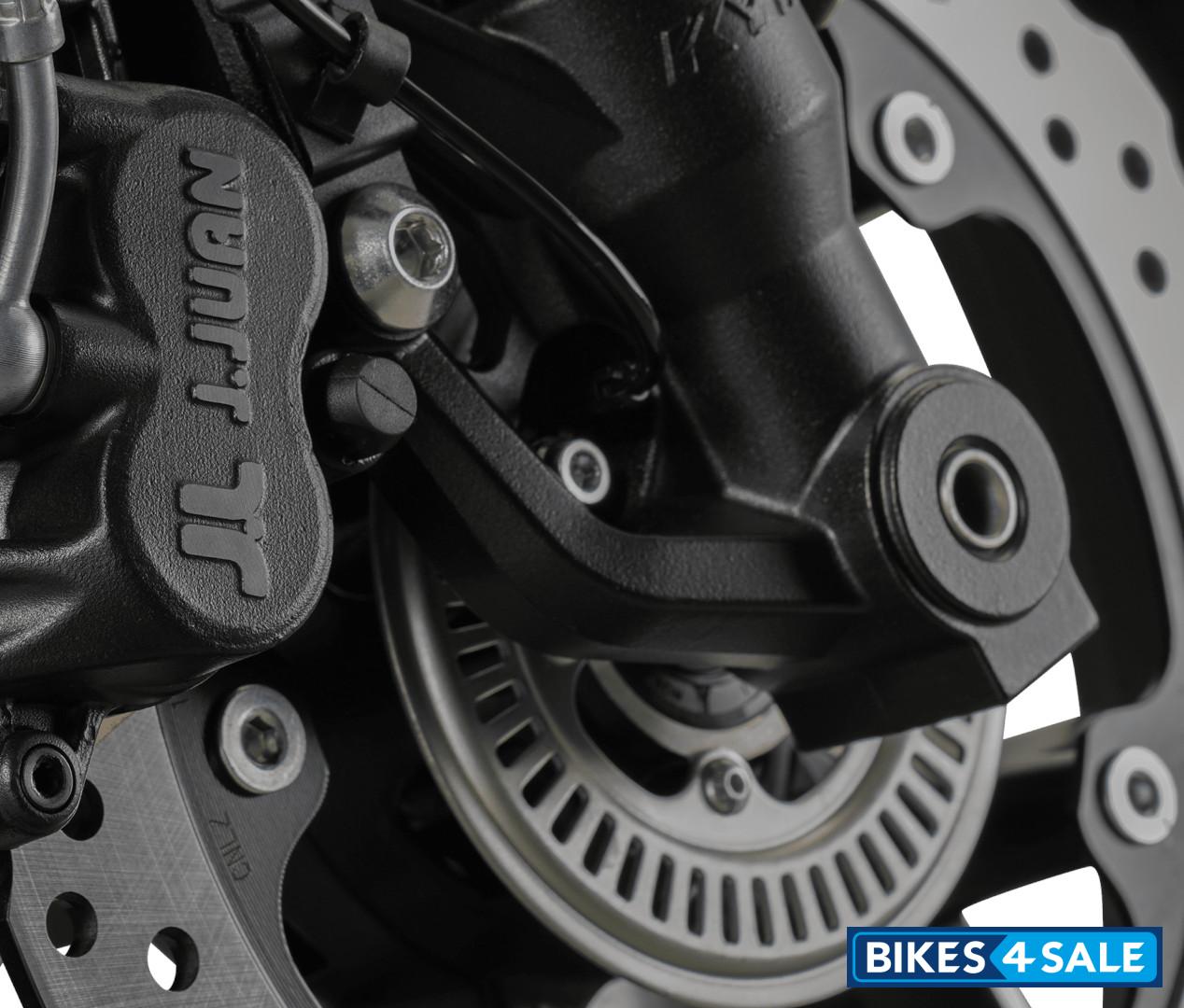

| Front Brake | 300 mm Dual Disc with ABS system |

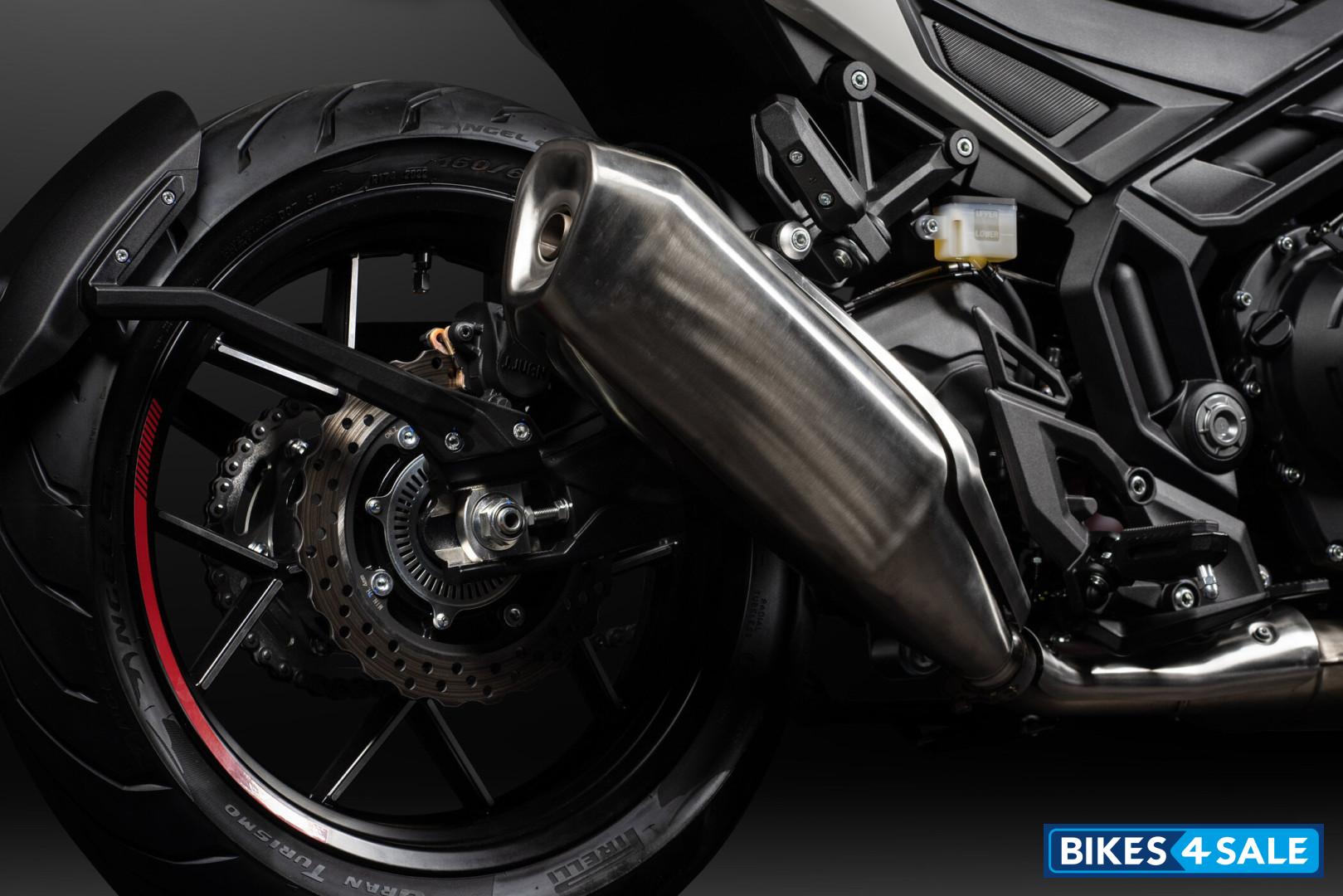

| Rear Brake | 240 mm Disc with ABS system |
| ABS System | Bosch ABS |
| Chassis and Suspension | |
|---|---|
| Frame | Diamond frame |
| Front Suspension | Upside-down telescopic forks 119.5 mm suspension travel |
| Rear Suspension | Pro-link Mono shock- absorber, adjustable 55 mm suspension travel |
| Tyres | |
|---|---|
| Wheels / Rim | Aluminum alloy |
| Front Tyre | Pirelli Angel GT 120/70 ZR17 |
| Rear Tyre | Pirelli Angel GT 160/60 ZR17 |
| Dimensions | |
|---|---|
| Length | 2145 mm |
| Width | 775 mm |
| Height | 1100 mm |

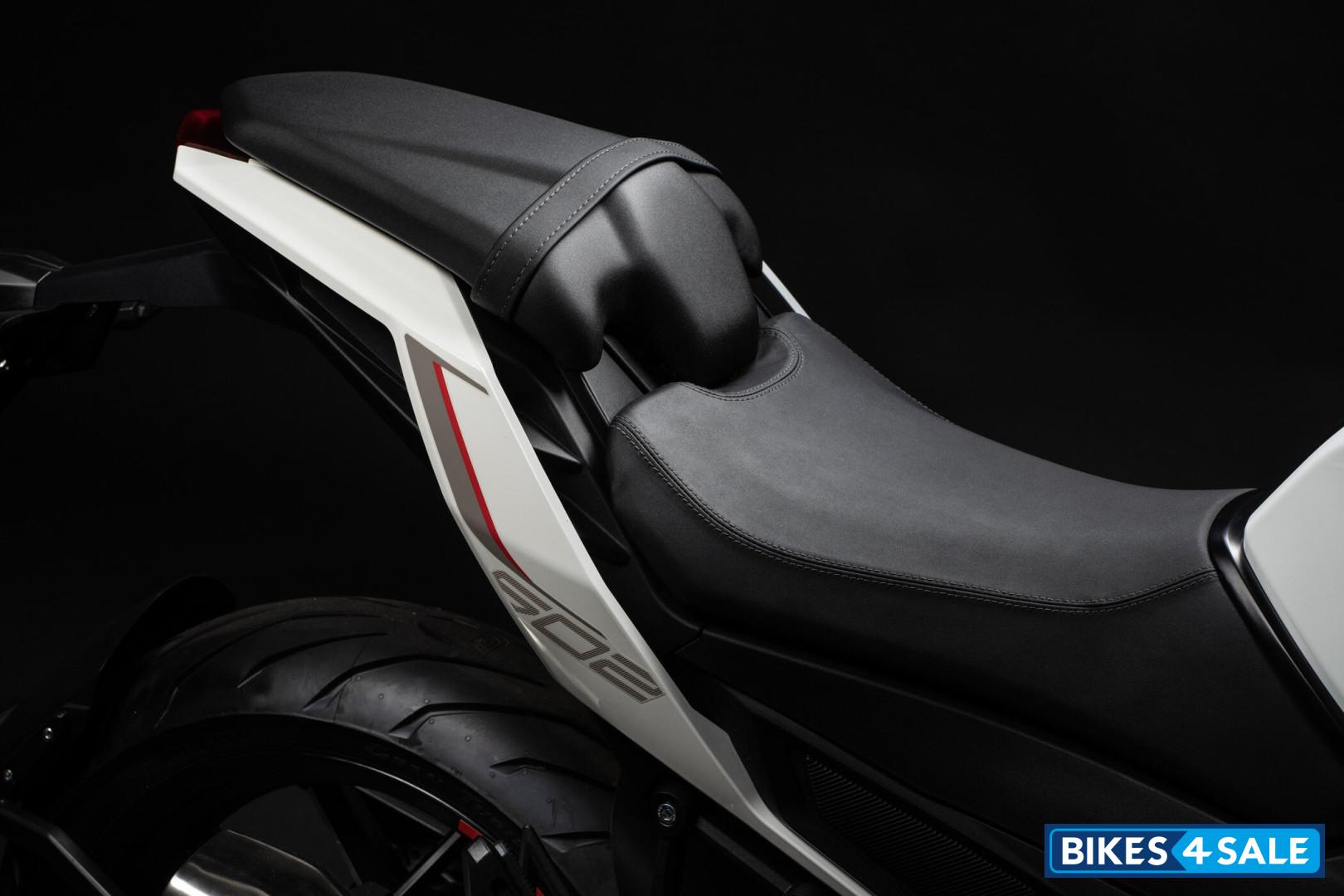

| Seat Height | 790 mm |
| Wheelbase | 1420 mm |
| Kerb Weight | 208 kg |
| Ground Clearance | 165 mm |
| Fuel Tank Capacity | 17 litres |
