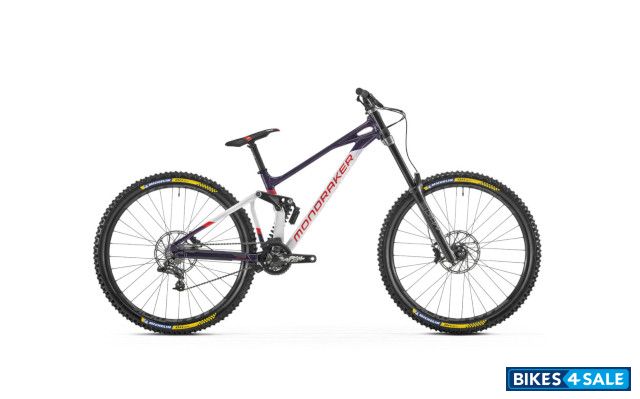

Mondraker Summum Bicycle Price, Specs and Features

Price, features and specs

Rate Mondraker Summum:

4.5/5 (2 votes)

Add To Compare
Write a Review

Mondraker Summum Price

Not Available

Buy new Mondraker Summum

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker Summum.

For Exciting Offers, Book a Test Drive

Similar Bicycles

Malvern Star Freedom M2 Compare

Apollo Transfer 30 Compare

Giant Cross City Disc 2 Equipped Compare

Ares STN-AL Compare

Ares Aplus Compare

Ares Sword 2023 Compare

Mondraker Dealers

BIOBIKE

Calle Lanzarote Nº 15 Local – 1 Spain

Contact Dealer

Bikeobiker

AVENIDA FRANCISCO AGUIRRE, 426, TALAVERA DE LA REINA Spain

Contact Dealer

More Dealers

View all Mondraker Showrooms

View All Showrooms

Technical Specifications

Vehicle Type	Bicycle
Fork	Rockshox Boxxer Select RC 29, 200mm, DebonAir, 1-1 / 8 ”steerer tube, Boost 20x110mm axle, 56mm offset. Settings: low-speed compression, rebound, air preload
Chain	SRAM PC-951, 9v
Saddle	SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sidewalls
Derailleur : Rear	SRAM X7, 9s, short cage, X-ACTUATION 1: 1
Hub : Front	MDK DA4352B, 12x157mm, Sealed Bearings, IS 6 Bolt
Hub : Rear	MDK DA4371B-M20, Boost 20x110mm, IS 6 bolts
Spoke	36T
Bottom Bracket	Race Face BSA, 83mm

Brakes
Front Brake	SRAM Code R, 4-piston oversized caliper, 6-bolt IS one-piece 200mm Centerline rotor, sintered pads
Rear Brake	SRAM Code R, 4-piston oversized caliper, 6-bolt IS one-piece 203mm Centerline rotor, sintered pads
Brake Lever	SRAM Code R, tool-free reach adjustment

Tyres
Front Tyre	Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, DH Shield reinforced shell, with rigid bead
Rear Tyre	Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, DH Shield reinforced shell, with rigid bead

Additional Details
Derailleur hanger : Mondraker M068 Pinions : SRAM PG-950, 11-26T, 9s Controls - change buttons : SRAM trigger X5, 9v, X-ACTUATION 1: 1 Chain guide : E.13 Vario Compact Adjustable Upper Slider, Alloy Mount for ISCG 05, DMB, Lower Slider compatible with 34-36t Connecting rods : Race Face Chester, alloy, 165mm Shank : SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustable Power : ONOFF Krypton DH CNC FG integrated, 25-30mm adjustable, for 31.8mm handlebar, 6061, 2x6mm spacer Cuffs : ONOFF Diamond, 1 lock-on, 135mm Shock absorber : Fox Van RC Performance, 225x70mm. Settings: low compression, low rebound, spring preload. Trunnion upper anchor, 30x8mm lower bushings. Sizes : S / M / L / XL 29 "and MX

Additional Details

Derailleur hanger : Mondraker M068
Pinions : SRAM PG-950, 11-26T, 9s
Controls - change buttons : SRAM trigger X5, 9v, X-ACTUATION 1: 1
Chain guide : E.13 Vario Compact Adjustable Upper Slider, Alloy Mount for ISCG 05, DMB, Lower Slider compatible with 34-36t
Connecting rods : Race Face Chester, alloy, 165mm
Shank : SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustable
Power : ONOFF Krypton DH CNC FG integrated, 25-30mm adjustable, for 31.8mm handlebar, 6061, 2x6mm spacer
Cuffs : ONOFF Diamond, 1 lock-on, 135mm
Shock absorber : Fox Van RC Performance, 225x70mm. Settings: low compression, low rebound, spring preload. Trunnion upper anchor, 30x8mm lower bushings.
Sizes : S / M / L / XL 29 "and MX
