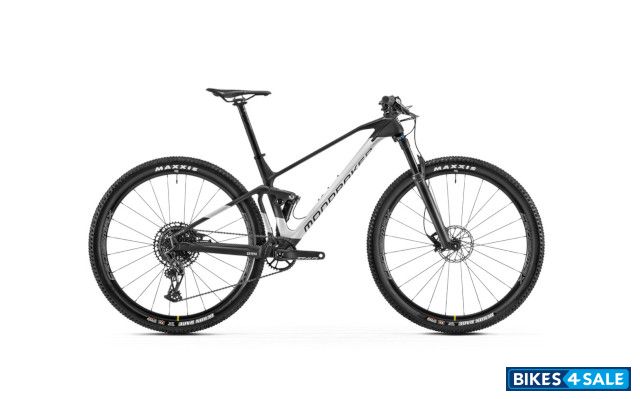

Mondraker F-Podium Carbon Bicycle Price, Specs and Features

Price, features and specs

Rate Mondraker F-Podium Carbon:

4.5/5 (2 votes)

Add To Compare
Write a Review

Mondraker F-Podium Carbon Price

Not Available

Buy new Mondraker F-Podium Carbon

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker F-Podium Carbon.

For Exciting Offers, Book a Test Drive

Similar Bicycles

Malvern Star Freedom M2 Compare

Apollo Transfer 30 Compare

Giant Cross City Disc 2 Equipped Compare

Ares STN-AL Compare

Ares Aplus Compare

Ares Sword 2023 Compare

Mondraker Dealers

BIOBIKE

Calle Lanzarote Nº 15 Local – 1 Spain

Contact Dealer

Bikeobiker

AVENIDA FRANCISCO AGUIRRE, 426, TALAVERA DE LA REINA Spain

Contact Dealer

More Dealers

View all Mondraker Showrooms

View All Showrooms

Technical Specifications

Vehicle Type	Bicycle
Handlebar	ONOFF Sulfur 0.2, double butted 6061 alloy, height: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, diameter 31.8mm
Fork	Fox 34 Step Cast Float Grip Evol Performance, 110mm, tapered tube, 15x110mm Boost axle, 44mm offset. Settings: remote control 2pos Push-unlock, rebound, air preload
Chain	SRAM SX Eagle, 12v, Powerlock
Saddle	Fizik Antares R7
Derailleur : Rear	SRAM GX Eagle, Type 3 needle bearing clutch, box lock, 1x12v, X-ACTUATION 1: 1
Hub : Front	DT 370, Boost 12x148mm, LN 18 pawl system, IS 6 bolt
Hub : Rear	DT 370, Boost 15x110mm, IS 6 bolts
Spoke	34T, steel, X-SYNC 2
Bottom Bracket	SRAM DUB BSA, sealed bearings, 73mm

Brakes
Front Brake	SRAM Level T, two-piece caliper, one-piece IS 180mm 6-bolt Centerline rotor, organic pickups
Rear Brake	SRAM Level T, two-piece caliper, one-piece IS 160mm 6-bolt Centerline rotor, organic pickups
Brake Lever	SRAM Level T, Direct Link actuation, reach adjust with tools, lever spindle with bushings

Tyres
Front Tyre	Maxxis Rekon Race 29x2.35, EXO shell, tubeless ready, 120TPI, folding bead

Additional Details
Pinions : SRAM PG-1230, 11-50T, 12v Derailleur hanger : SRAM UDH Controls - change buttons : SRAM Trigger SX Eagle, 12v, X-ACTUATION 1: 1 Shank : ONOFF Helium Carbon 0-R, diameter 31.6mm, length 400mm Power : MDK, 6061 T6 alloy, for 31.8mm handlebars, rise: +/- 5º, length depending on bike size: S / M: 50mm, L: 60mm, XL: 70mm Shock absorber : Fox Float DPS SV Performance Elite, 185x47.5mm. Adjustments: 2 position remote compression adjustment (open / lock), low rebound, air preload. Trunnion top anchor, 22.2x10mm bottom bushings. Connecting rods : SRAM X1 Carbon Eagle, Boost, DUB axle, Direct Mount, S: 170mm, M / L / XL: 175mm Radios : DT Champion, straight rise Cuffs : ONOFF Diamond, 1 lock-on, 135mm Damper adjustment : Firm compression, light bounce, token 0.2 Sizes : S: 390mm / M: 420mm / L: 470mm / XL: 510mm Fork remote control : Fox double shot

Additional Details

Pinions : SRAM PG-1230, 11-50T, 12v
Derailleur hanger : SRAM UDH
Controls - change buttons : SRAM Trigger SX Eagle, 12v, X-ACTUATION 1: 1
Shank : ONOFF Helium Carbon 0-R, diameter 31.6mm, length 400mm
Power : MDK, 6061 T6 alloy, for 31.8mm handlebars, rise: +/- 5º, length depending on bike size: S / M: 50mm, L: 60mm, XL: 70mm
Shock absorber : Fox Float DPS SV Performance Elite, 185x47.5mm. Adjustments: 2 position remote compression adjustment (open / lock), low rebound, air preload. Trunnion top anchor, 22.2x10mm bottom bushings.
Connecting rods : SRAM X1 Carbon Eagle, Boost, DUB axle, Direct Mount, S: 170mm, M / L / XL: 175mm
Radios : DT Champion, straight rise
Cuffs : ONOFF Diamond, 1 lock-on, 135mm
Damper adjustment : Firm compression, light bounce, token 0.2
Sizes : S: 390mm / M: 420mm / L: 470mm / XL: 510mm
Fork remote control : Fox double shot
