Price, features and specs
Rate MERIDA eSpresso CC XT-Edition EQ:

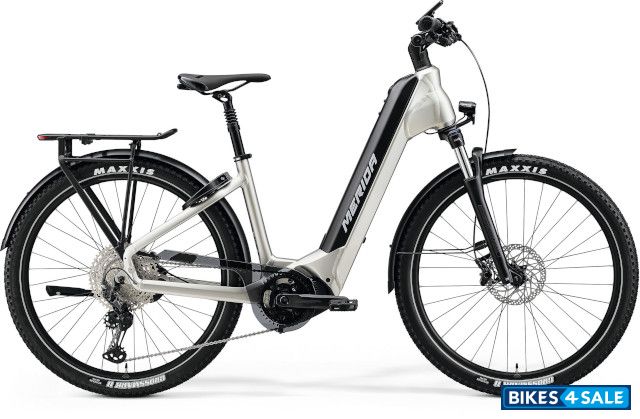

MERIDA eSpresso CC XT-Edition EQ Price
€
4410
[Hamburg, Germany]
The given price can change depending on the colour, accessories and other features.
Country, City
Showroom Price
On Road Price
Germany, Hamburg
€ 4410
--
Features
- Sporty and powerful Shimano EP8 drive unit
- Benchmark Shimano XT 12-speed drivetrain
- Agile 650b wheels with grippy high-volume tyres
- Super low step-through ENERGY CRADLE frame design with internally mounted 630 Wh battery
- Suspension fork and seat post for comfort and control
- Fully equipped with guards, lights, lock, rack and kickstand
Colours
BLUE (BLACK)
SILK TITAN (BLACK)
WHITE (BLACK)
Technical Specifications
Vehicle Type Bicycle Fuel Electric Drivetrain Shimano EP8
85Nm Stem MERIDA EXPERT TK II
Material: aluminium
31.8mm diameter
Adjustable
80 mm- XS/S/M/L/XL Handlebar MERIDA EXPERT TK
Material: aluminium
680mm width
15mm rise Fork SR Suntour Mobie A32 NLO
Coil
75mm suspension travel
lockout
27,5x2,4" max wheelsize Seatpost MERIDA EXPERT TK
30.9mm diameter
15mm setback
40mm seatpost suspension travel Grip MERIDA EXPERT TK Crankset Shimano FC-EM600
165 mm Pedals VP VPE-889 Chain KMC e12T EPT Shifters Shimano XT Saddle MERIDA EXPERT TK
V-mount Headset Acros Trekking Derailleur : Rear Shimano XT M8100
SGS Hub : Front Shimano MT400 / Shimano MT500
100x15mm width front hub
32 spoke holes
Centerlock Hub : Rear Shimano MT400 / Shimano MT500
135x9mm width rear hub
36 spoke holes
Centerlock Spoke Black stainless Stand Atranvelo 1219-PC-7
Electricals Battery Shimano E8036
630Wh
BATTERY LOCK : Abus Key Head Lamp Lezyne E-Bike Mini E65
StVZO Tail Lamp Spanninga Commuter Glow XE
STVZO
Integrated in MERIDA MIK HD carrier
Brakes Front Brake Shimano Deore T6000
2 piston Rear Brake Shimano Deore T6000
2 piston
Chassis and Suspension Frame eSPRESSO CC LITE II
Material: aluminium
27,5x2,25" max. wheelsize
135x9mm axle standard
Internal
FRAME SIZE : XS, S, M, L, XL
Tyres Wheels / Rim MERIDA COMP TK
20mm inner width
Material: aluminium Front Tyre Maxxis Crossmark II
27.5x2.25"
Wire
Reflecting line Rear Tyre Maxxis Crossmark II
27.5x2.25"
Wire
Reflecting line
Additional Details
Rotors : Shimano RT 30 / Shimano RTEM300
180 mm
Seat Clamp : MERIDA EXPERT
ChainGuard : Sunnywheel SW-CG-173A
ChainWheel : Samox NWP203
38 teeth
FreeWheel : Shimano M6100
10-51 teeth
12 speed
Carrier : MERIDA MIK HD
Spring clip
Spanninga rear light
FENDER : Sunnywheel SW-FA-311-65A(MSB)
FRAME LOCK : Abus 4650 XL
