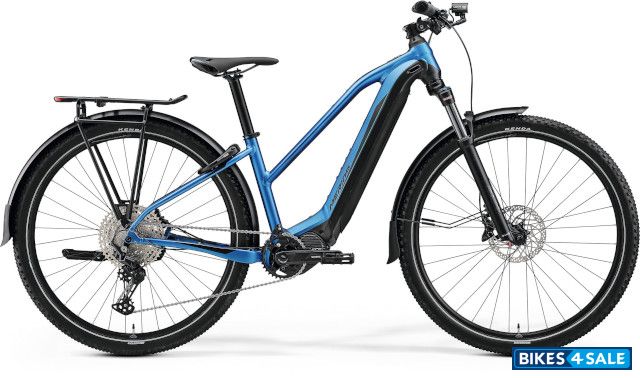

MERIDA eBig.Tour 675 EQ Electric Bicycle Price, Specs and Features

Price, features and specs

Rate MERIDA eBig.Tour 675 EQ:

4.0/5 (3 votes)

Add To Compare
Write a Review

MERIDA eBig.Tour 675 EQ Price

Not Available

Buy new MERIDA eBig.Tour 675 EQ

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for MERIDA eBig.Tour 675 EQ.

For Exciting Offers, Book a Test Drive

Features

- Lightweight aluminium frame with integrated 750 Wh battery and low step-through frame design
- SR Suntour air suspension fork for improved comfort and control
- 29er wheels with high volume tyres can handle city or countryside terrain
- Powerful and smooth Shimano EP8 drive unit
- Standard fit mudguards, rack, lights, wheel lock and kickstand
- Smooth Shimano drivetrain and powerful disc brakes

Similar Bicycles

Blix Vika X Compare

Ridgeback Butcher Compare

Ridgeback Errand Compare

Norco 2025 Scene VLT Compare

Trek Verve Plus 2 Gen 2 Compare

Ribble Allroad SL R E - Hero Compare

Colours

SILK BLUE/BLACK
GREY/BLACK

MERIDA Dealers

Andes Industrial LTDA.

Santa Elena 1511, Chile United States

Contact Dealer

More Dealers

View all MERIDA Showrooms

View All Showrooms

Technical Specifications

Vehicle Type	Bicycle
Fuel	Electric
Drivetrain	Shimano E7000 60Nm
Stem	MERIDA EXPERT CT Material: aluminium 31.8mm diameter Adjustable 90 mm
Handlebar	MERIDA EXPERT CC Material : Aluminium 720mm width 10mm rise
Fork	SR Suntour XCR34 LOR DS Air Boost 100mm Tapered 51mm fork offset 29x2.4" max wheelsize
Seatpost	MERIDA EXPERT CC Material: aluminium 34.9mm diameter 0mm setback
Grip	MERIDA EXPERT TK
Crankset	Shimano FCEM600 165 mm
Pedals	VP VPE-537
Chain	KMC e11S EPT
Shifters	Shimano Deore M5100
Saddle	MERIDA EXPERT TK V-mount
Headset	MERIDA 8155
Derailleur : Rear	Shimano Deore RDM5100 11
Hub : Front	Shimano MT400-B 110x15mm width front hub 32 spoke holes Centerlock
Hub : Rear	Shimano MT400-B 148x12mm width rear hub 36 spoke holes Centerlock
Spoke	Black stainless
Stand	Massload CL-KA98

Display
Shimano SC-E5000A

Electricals
Battery	Simplo Internal Battery 750Wh Battery Lock : Abus key
Head Lamp	Lezyne E-Bike Power E115 StVZO X-Lock stem mount
Tail Lamp	Spanninga Commuter Glow XE STVZO Integrated in MERIDA MIK HD carrier

Brakes
Front Brake	Shimano M4100 4 piston 2 piston
Rear Brake	Shimano M4100 4 piston 2 piston

Chassis and Suspension
Frame	eBIG.TOUR LITE IV Material: aluminium 29x2.35" without fender max./ 29" x2.25" with fender max. wheelsize 148x12mm axle standard Intube FRAME SIZE : S, M, L, XL

Tyres
Wheels / Rim	MERIDA COMP CC 20mm inner width Material: aluminium
Front Tyre	Kenda Booster 29x2.2" Wire
Rear Tyre	Kenda Booster 29x2.2" Wire

Dimensions
Weight	140 kg

Additional Details
Rotors : Shimano RT 30 / Shimano RTEM300 180 mm Seat Clamp : MERIDA EXPERT ChainWheel : Shimano CRE70-B 34 teeth FreeWheel : Shimano M5100 11-51 teeth 11 speed Axles : MERIDA EXPERT TR Including removeable lever, 6/4mm allen key Carrier : MERIDA MA008-1 Spring clamp Spanninga GLOW XE rear light FENDER Sunnywheel SW-FA311-65A/ SW-FA311-65E1 FRAME LOCK : Abus 5650 LH-3 lock
