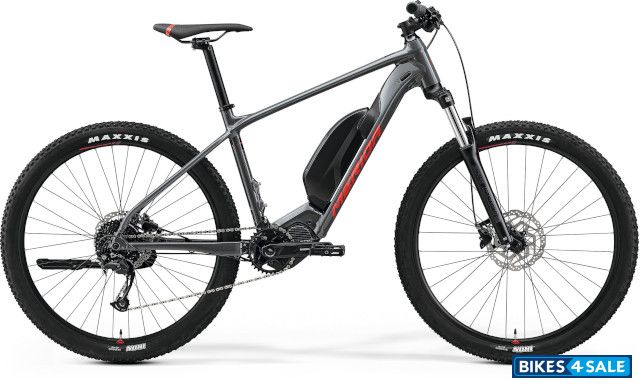

MERIDA eBig.Seven LTD Electric Bicycle

Price, features and specs

Rate MERIDA eBig.Seven LTD:
4.0/5 (3 votes)
MERIDA eBig.Seven LTD Price 5387 [Hamburg, Germany]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
Germany, Hamburg € 5387 --
Buy new MERIDA eBig.Seven LTD

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for MERIDA eBig.Seven LTD.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
2621
Features
- Lightweight aluminium frame with 27.5" wheels
- Long-lasting 630 Wh battery
- Versatile enough for the trail or the commute
- Value for money Shimano E7000 assistance
- Confidence inspiring mountain bike handling
- Comfort and control enhancing suspension fork
Colours

COOL GREY (RED/BLACK)

Technical Specifications
Vehicle TypeBicycle
FuelElectric
DrivetrainShimano EP8
85Nm
StemMERIDA EXPERT CC
Material: aluminium
31.8mm diameter
5° stem angle
70 mm-XS/S, 80 mm-M
HandlebarMERIDA EXPERT CC
Material : Aluminium
720mm width
10mm rise
ForkSR Suntour XCM32 DS
Coil
100mm
Tapered
47mm fork offset
27.5x2.2" max wheelsize
SeatpostMERIDA EXPERT
30.9mm diameter
15mm setback
GripMERIDA EXPERT EC
CranksetShimano FCEM600
165 mm
PedalsVP VPE-537
ChainKMC e9s
ShiftersShimano Alivio
SaddleMERIDA COMP SL
V-mount
HeadsetMERIDA 2341
Derailleur : RearShimano Alivio M3100
SGS
Hub : FrontShimano MT400-B
110x15mm width front hub
32 spoke holes
Centerlock
Hub : RearShimano MT400-B
148x12mm width rear hub
36 spoke holes
Centerlock
SpokeBlack stainless
StandMassload CL-KA98
Display
Shimano SC-E5000A
Electricals
BatteryShimano E8016
630Wh
Battery Lock : Abus key
Head LampDlight CG-119PG
StVZO
X-Lock stem mount
Tail LampDlight CG-404RG
STVZO
Brakes
Front BrakeTektro M275
2 piston
Rear BrakeTektro M275
2 piston
Chassis and Suspension
FrameeBIG.SEVEN LITE
Material: aluminium
27x2.20" without fender max./ 27.5"x2.00" with fender max. wheelsize
148x12mm axle standard
External
FRAME SIZE : XS, S, M
Tyres
Wheels / RimMERIDA COMP CC
20mm inner width
Material: aluminium
Front TyreMaxxis Ikon
27.5x2.2"
Rear TyreMaxxis Ikon
27.5x2.2"
Dimensions
Weight140 kg
Additional Details
Rotors : Shimano RT10
180 mm
Seat Clamp : MERIDA EXPERT
ChainWheel : Shimano CRE70-B
34 teeth
FreeWheel : Shimano HG200
11-36 teeth
9 speed
Axles : MERIDA COMP TR
Including removeable lever, 6/4mm allen key
