MERIDA eBig.Nine LTD Electric Bicycle Price, Specs and Features

Price, features and specs

Rate MERIDA eBig.Nine LTD:

4.0/5 (4 votes)

Add To Compare
Write a Review

MERIDA eBig.Nine LTD Price

Not Available

Buy new MERIDA eBig.Nine LTD

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for MERIDA eBig.Nine LTD.

For Exciting Offers, Book a Test Drive

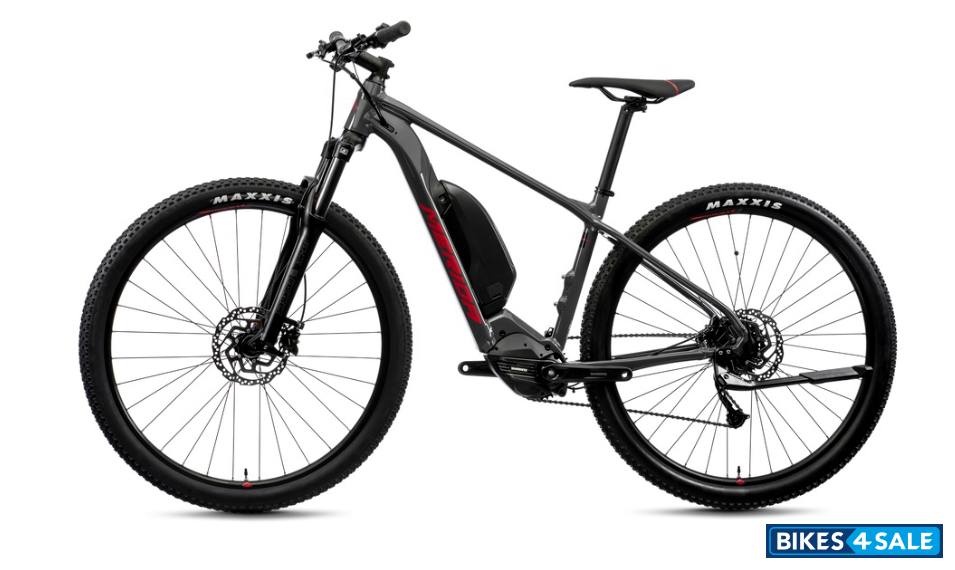

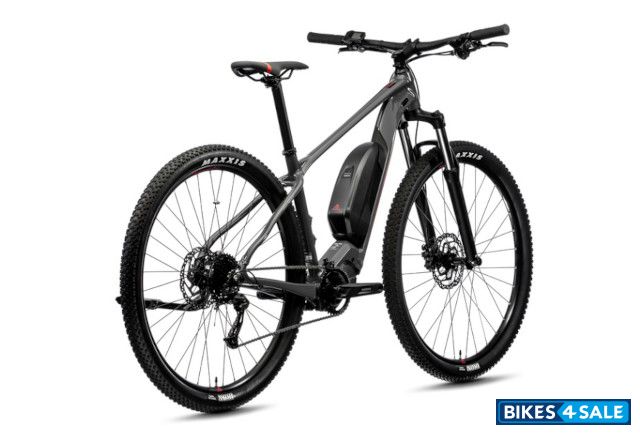

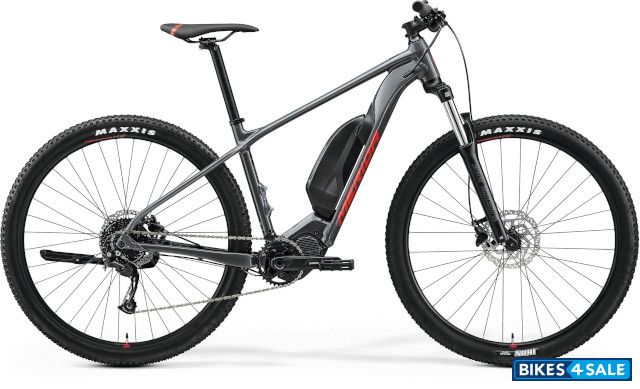

Picture Gallery

COOL GREY (RED/BLACK)

Features

- Lightweight aluminium frame with 29er wheels
- Long-lasting 630 Wh battery
- Comfort and control enhancing suspension fork
- Powerful and refined Shimano EP8 assistance
- Confidence inspiring mountain bike handling
- Comes fully equipped with lights, kickstand, rack and mudguards

Similar Bicycles

Blix Vika X Compare

Ridgeback Butcher Compare

Ridgeback Errand Compare

Norco 2025 Scene VLT Compare

Trek Verve Plus 2 Gen 2 Compare

Ribble Allroad SL R E - Hero Compare

Colours

COOL GREY (RED/BLACK)

MERIDA Dealers

Andes Industrial LTDA.

Santa Elena 1511, Chile United States

Contact Dealer

More Dealers

View all MERIDA Showrooms

View All Showrooms

Technical Specifications

Vehicle Type	Bicycle
Fuel	Electric
Drivetrain	Drive Unit : Shimano EP8 85 Nm
Stem	MERIDA EXPERT CC Material: aluminium 31.8mm diameter 5° stem angle 80 mm-M, 90 mm-L, 100 mm-XL
Handlebar	MERIDA EXPERT CC Material : Aluminium 720mm width 10mm rise
Fork	SR Suntour XCM32 DS Coil 100mm Tapered 47mm fork offset 29x2.4" max wheelsize
Seatpost	MERIDA EXPERT Material: aluminium 30.9mm diameter 15mm setback
Grip	MERIDA EXPERT EC
Crankset	Shimano FCEM600 165 mm
Pedals	VP VPE-537
Chain	KMC e9s
Shifters	Shimano Alivio
Saddle	MERIDA COMP SL V-mount
Headset	MERIDA 2341
Derailleur : Rear	Shimano Alivio M3100 SGS
Hub : Front	Shimano MT400 / Shimano MT400-B 110x15mm width front hub 32 spoke holes Centerlock
Hub : Rear	Shimano MT400 / Shimano MT400-B 148x12mm width rear hub 36 spoke holes Centerlock
Spoke	Black stainless
Stand	Massload CL-KA98

Display
Shimano SC-E5003A

Electricals
Battery	Shimano E8016 630Wh Battery Lock : Abus key
Head Lamp	Dlight CG-119PG StVZO
Tail Lamp	Dlight CG-404RG STVZO

Brakes
Front Brake	Tektro M275 2 piston
Rear Brake	Tektro M275 2 piston

Chassis and Suspension
Frame	eBIG.NINE LITE Material: aluminium 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize 148x12mm axle standard External FRAME SIZE : M, L, XL

Tyres
Wheels / Rim	MERIDA COMP CC 20mm inner width Material: aluminium
Front Tyre	Maxxis Ikon 29x2.2"
Rear Tyre	Maxxis Ikon 29x2.2"

Dimensions
Weight	140 kg

Additional Details
Rotors : Shimano RT10 180 mm Seat Clamp : MERIDA EXPERT ChainWheel : Shimano CRE70-B 34 teeth FreeWheel : Shimano HG200 11-36 teeth 9 speed Axles : MERIDA COMP TR Including removeable lever, 6/4mm allen key
