Price, features and specs

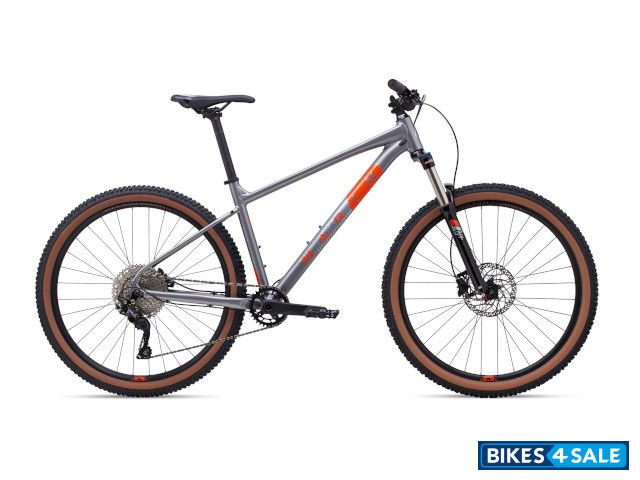

Rate Marin Bobcat Trail 5:
Marin Bobcat Trail 5 Price
$
949
[Sparks, United States]
The given price can change depending on the colour, accessories and other features.
| Country, City |
Showroom Price |
On Road Price |
| United States, Sparks |
$ 949 |
-- |
Buy new Marin Bobcat Trail 5
Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Marin Bobcat Trail 5.
For Exciting Offers, Book a Test Drive
Features
- Series 2 Aluminum Frame
- 29” OR 27.5” Wheels
- Trail Geometry
- Fastback Seatstay Design
Technical Specifications
| Vehicle Type | Bicycle |
| Stem | Marin Alloy, 31.8 Bar Bore, 45 mm |
| Handlebar | Marin 31.8 Riser, 12 mm Rise, 780 mm Width |
| Fork | SR Suntour XCR LOR-DS, Thru-Axle, 120 mm Travel, Hydraulic Lockout, Damping Adjustment, 42 mm (27.5") & 46 mm (29") Offsets |
| Seatpost | Marin Alloy, 30.9 |
| Grip | Marin MTB, Closed End |
| Crankset | Marin Forged Alloy 1 x 11, Hollow Spindle, Steel Narrow-Wide 32T Chainring, 76 mm BCD |
| Pedals | Nylon Platform |
| Chain | KMC X11 |
| Shifters | Shift Lever : MicroSHIFT 1x11-Speed |
| Saddle | Marin MTB |
| Headset | FSA No.10-P |
| Derailleur : Rear | Shimano Deore Shadow Plus SGS |
| Hub : Front | Forged Alloy, Centerlock Disc, 32H |
| Hub : Rear | Formula, 100 x 15 mm, Sealed Cartridge Bearings, Centerlock Disc, 32H |
| Spoke | 14 g Black Stainless Steel |
| Cassette | SunRace 11-Speed, 11-46T |
| Brakes |
|---|
| Front Brake | Shimano BR-MT201 Hydraulic Disc 180 mm Rotor |
| Rear Brake | Shimano BR-M201 Hydraulic Disc 160 mm Rotor |
| Brake Lever | Shimano BL-MT201 |
| Chassis and Suspension |
|---|
| Frame | Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68 mm BB shell, 135 mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing Routing |
| Tyres |
|---|
| Wheels / Rim | Marin Aluminum Double Wall, 29 mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
| Front Tyre | WTB Trailboss Comp, 27.5/29 x 2.25, Wire Bead |
| Rear Tyre | WTB Trailboss Comp, 27.5/29 x 2.25, Wire Bead |
| Additional Details |
|---|
| Bottom Bracket : External Sealed Cartridge Bearings |
