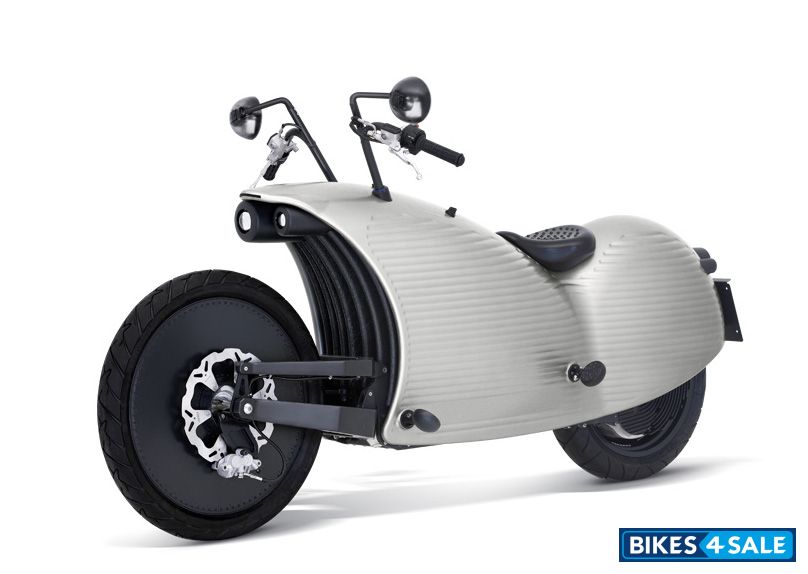

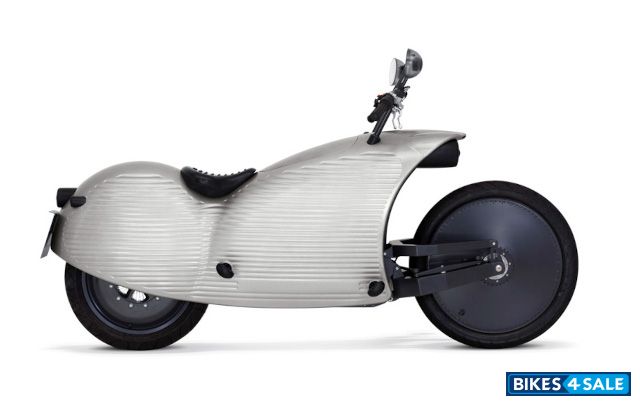

Rear fork: single-arm cast aluminium fork with integrated drive unit
Front fork: twin-arm aluminium fork featuring parallel aluminium box-section arm to equalise braking torque
Range
200 km
Electricals
Battery
Li-ion battery 12,7 kWh
Peak power output: 16kW
Charger
3,5 h (optional 80 min)
Charging capacity: 16A using 230 V wall socket and 3 kW onboard charger
optional: 16A using 400 V standardised socket and 8 kW onboard charger
Brakes
Front Brake
Dual-piston brake callipers front and rear, disc diameter 300 mm
Rear Brake
Dual-piston brake callipers front and rear, disc diameter 300 mm
Chassis and Suspension
Frame
Central aluminium frame, bolted
Dimensions
Length
2200mm
Height
1200mm
Seat Height
650 mm
Handlebar Width
814 mm
Wheelbase
1455 mm
Weight
178kg
Additional Details
Lean angle: 43°
Centre of gravity: 350 mm
Electric engine brake with power recuperation
Service life: in excess of 100,000 km and 80% residual capacity
