Book a Test Drive through Bikes4Sale and we will try to get you the best offer for HORWIN EK1 DS PLUS.

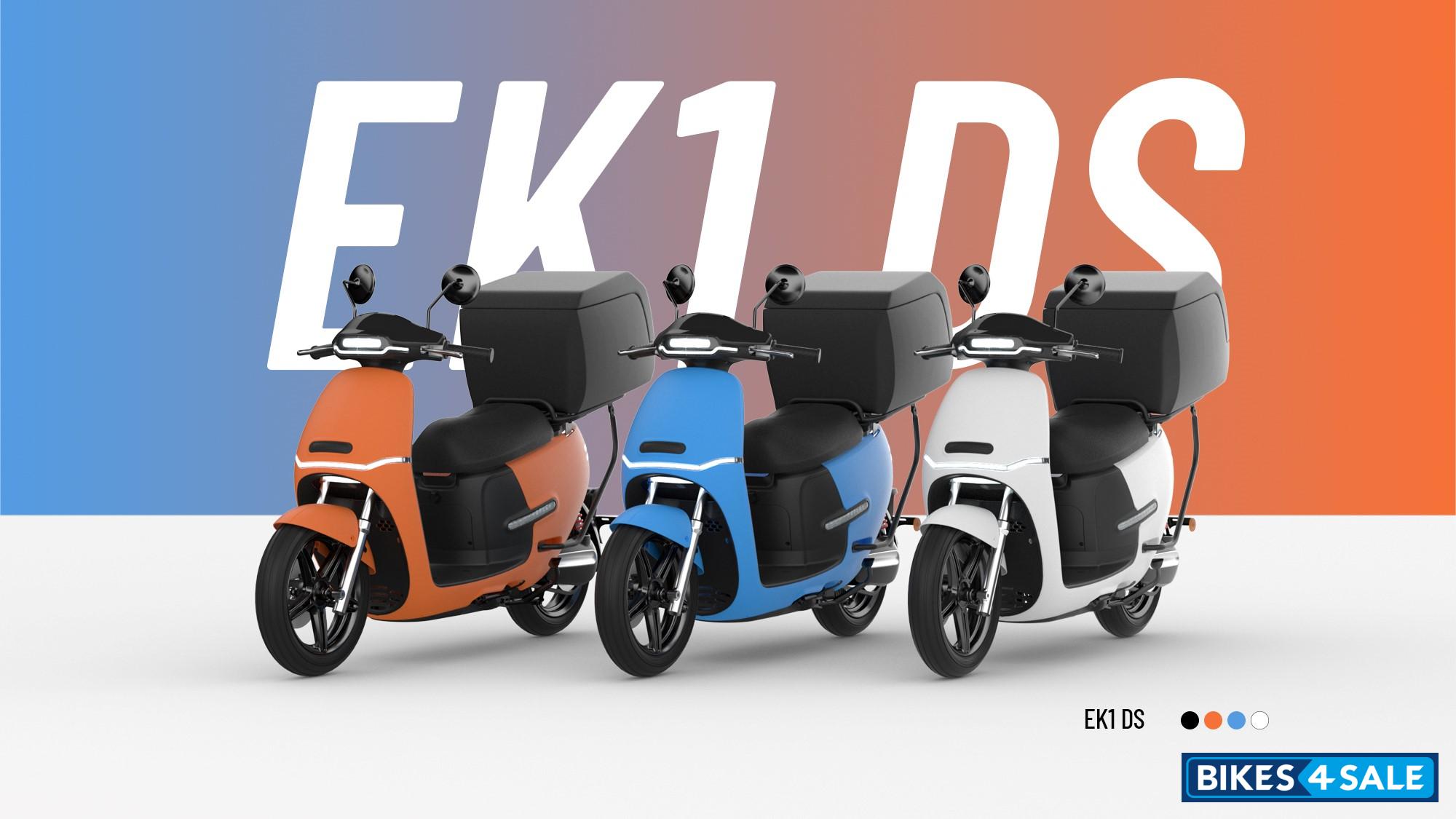

ORANGE
MEDIUM BLUE
WHITE
MATT BLACK
| Vehicle Type | Scooter |
| Fuel | Electric |
| Maximum Power | 3.7 PS @ 480 RPM |
| Maximum Torque | 145 NM |
| Load Carrying Capacity | 281 kg |
| Top Speed | 45 kmph |
| Hub : Front | MT 3.0×13 |
| Hub : Rear | MT 2.5×14 |
| Motor Details |
|---|
| Hub motor |
| Range |
|---|
| ≥ 176 km | 2 batteries with 40 Ah each (according to EEC test) |
| Charging Time |
|---|
| Approx. 5 h (0-100 %) |
| Display |
|---|
| LCD Display |
| Electricals | |
|---|---|
| Battery | 72 V, 40 Ah (optionally 80 Ah with second battery) |
| Charger | 5A |
| Controller | FOC |
| Head Lamp | LED |
| Tail Lamp | LED |
| Brakes | |
|---|---|
| Front Brake | Disc brake |
| Rear Brake | Disc brake |
| Chassis and Suspension | |
|---|---|
| Frame | Aluminium alloy |
| Tyres | |
|---|---|
| Wheels / Rim | 14" Alloy Wheels |
| Front Tyre | 100/ 80-14 |
| Rear Tyre | 110/ 70-13 |
| Dimensions | |
|---|---|
| Length | 1900 mm |
| Width | 690 mm |
| Height | 1130 mm |
| Seat Height | 780 mm |
| Wheelbase | 1320 mm |
| Weight | 92 kg |
| Ground Clearance | 125 mm |
| Additional Details |
|---|
| Loading cycles: ≥ 1000 times |
