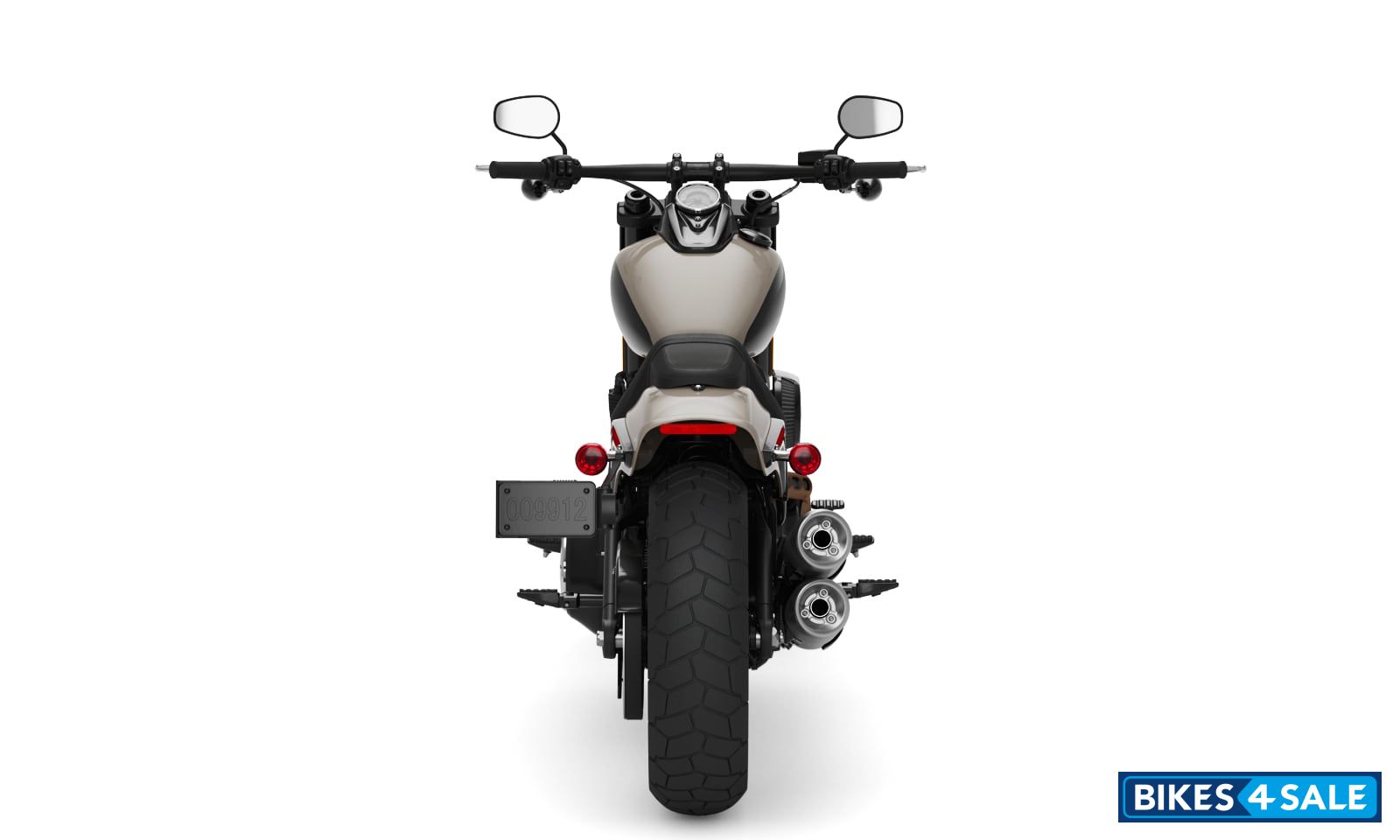

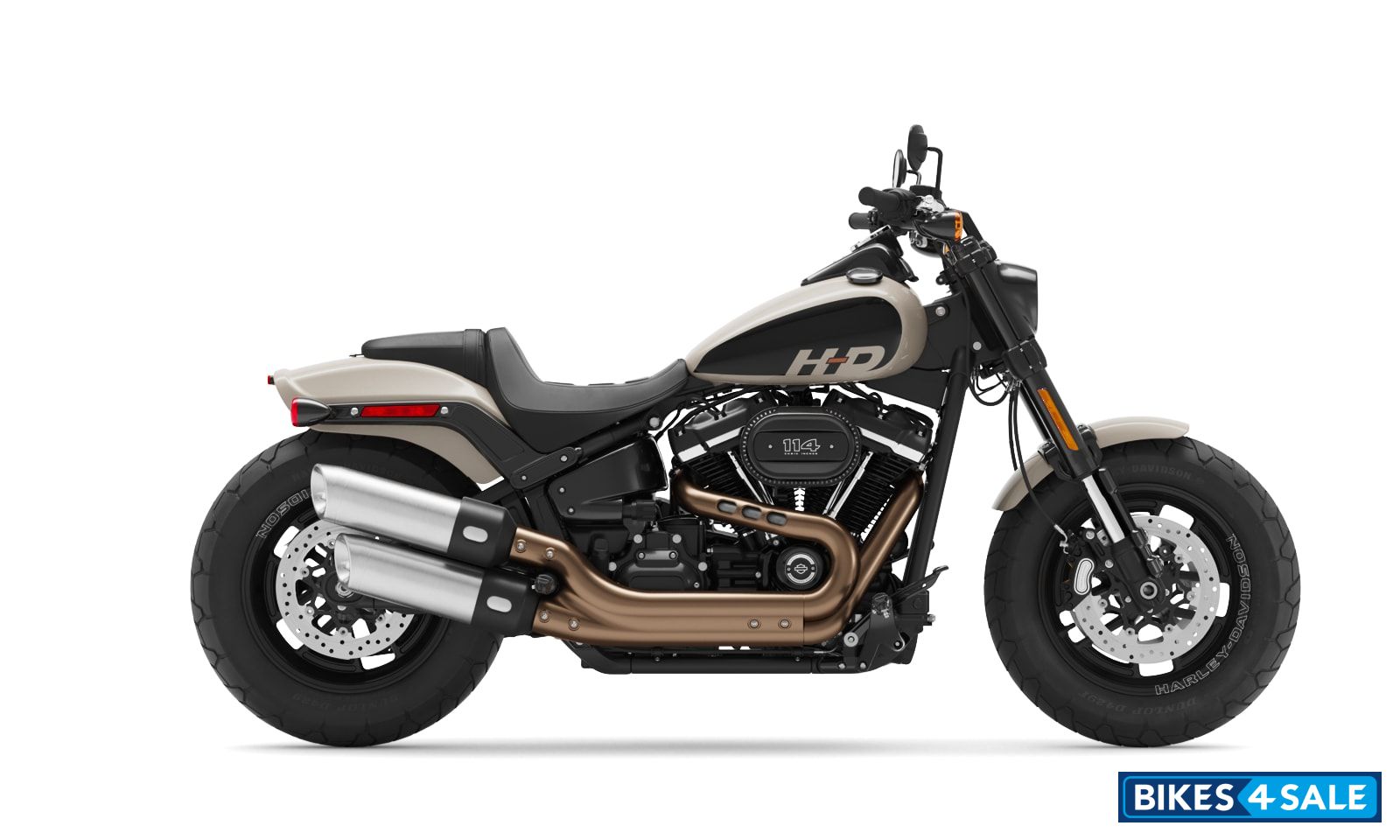

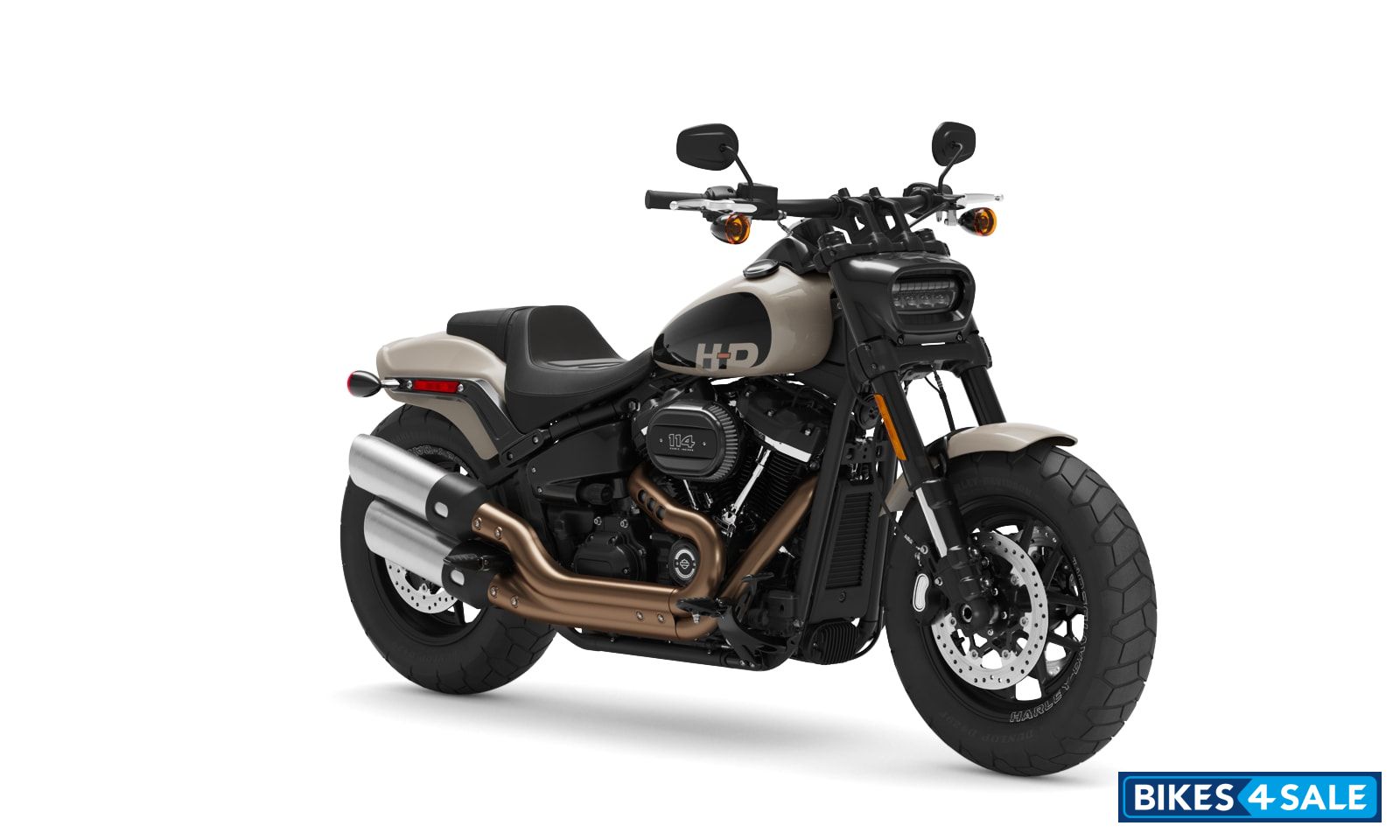

Harley Davidson 2022 Fat Bob 114 Motorcycle

Price, features and specs

2022 Fat Bob 114 is not in production now.

Rate Harley Davidson 2022 Fat Bob 114:
4.0/5 (3 votes)
Harley Davidson 2022 Fat Bob 114 Price $ 18330 [Chicago, United States]

Harley Davidson has stopped the production of its motorcycle 2022 Fat Bob 114 and hence the given price is not relevant.

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Chicago $ 18330 --
Features
- MILWAUKEE-EIGHT BIG TWIN ENGINE
- DUAL DISC FRONT BRAKES
- 2-1-2 EXHAUST
- RACE-STYLE FORK TECHNOLOGY
Colours

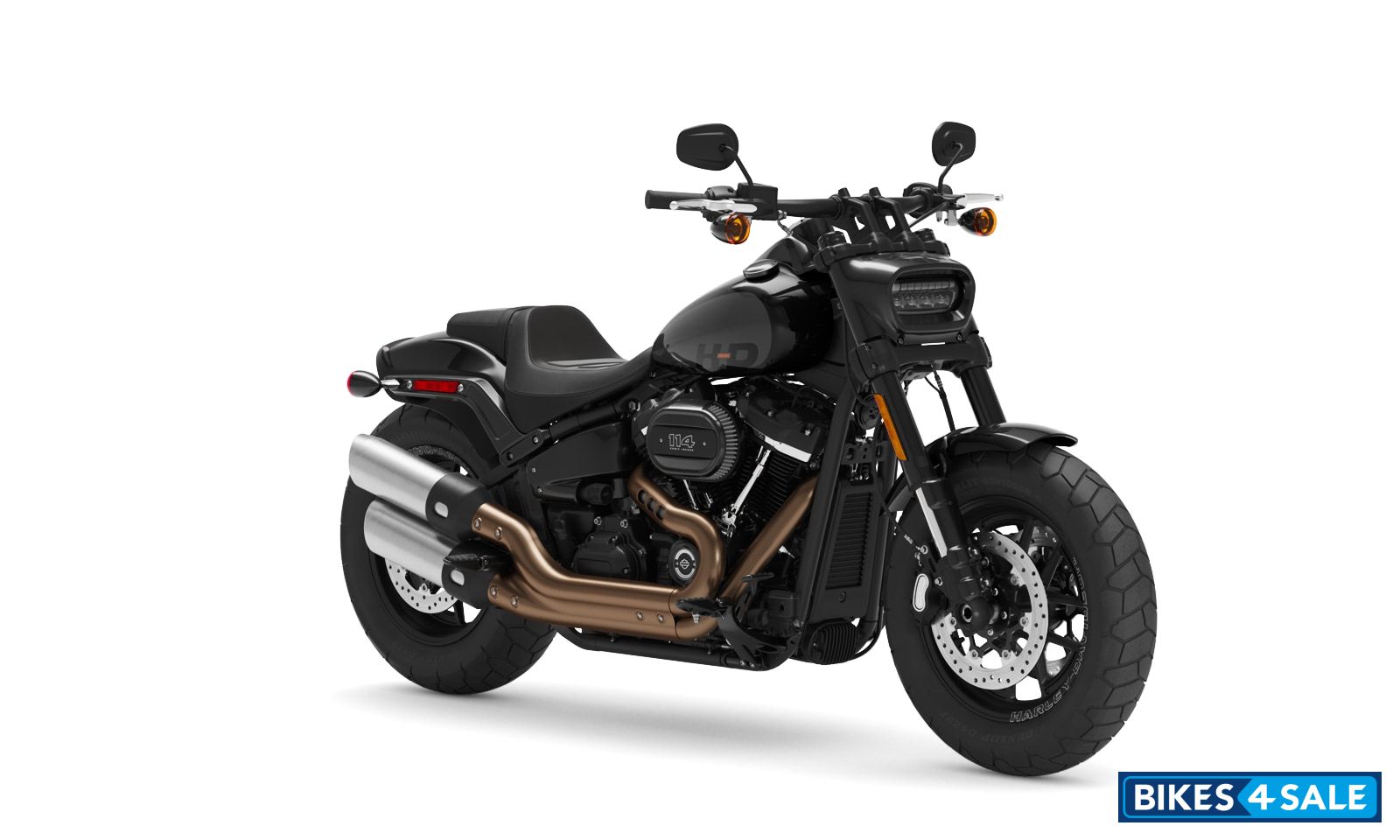

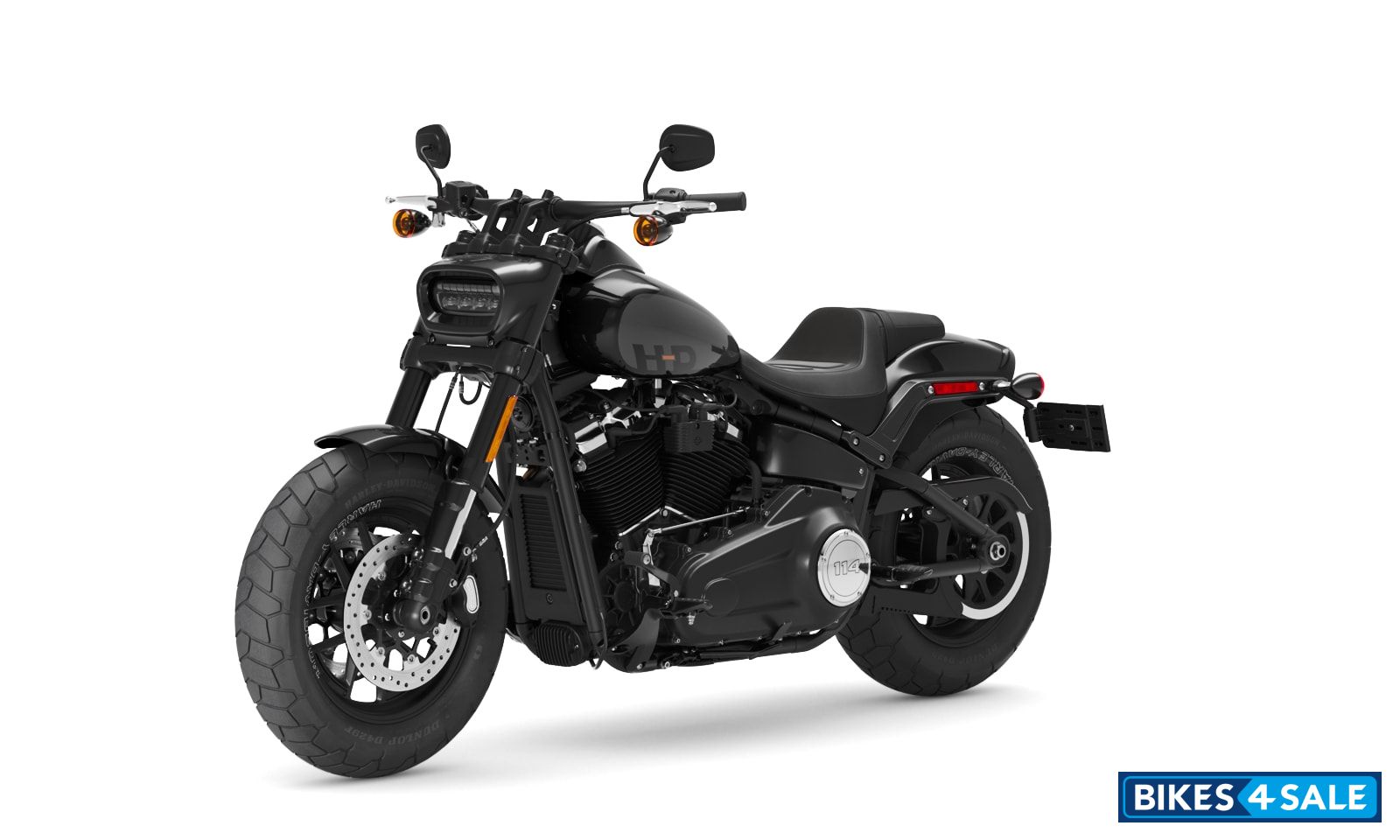

Vivid Black

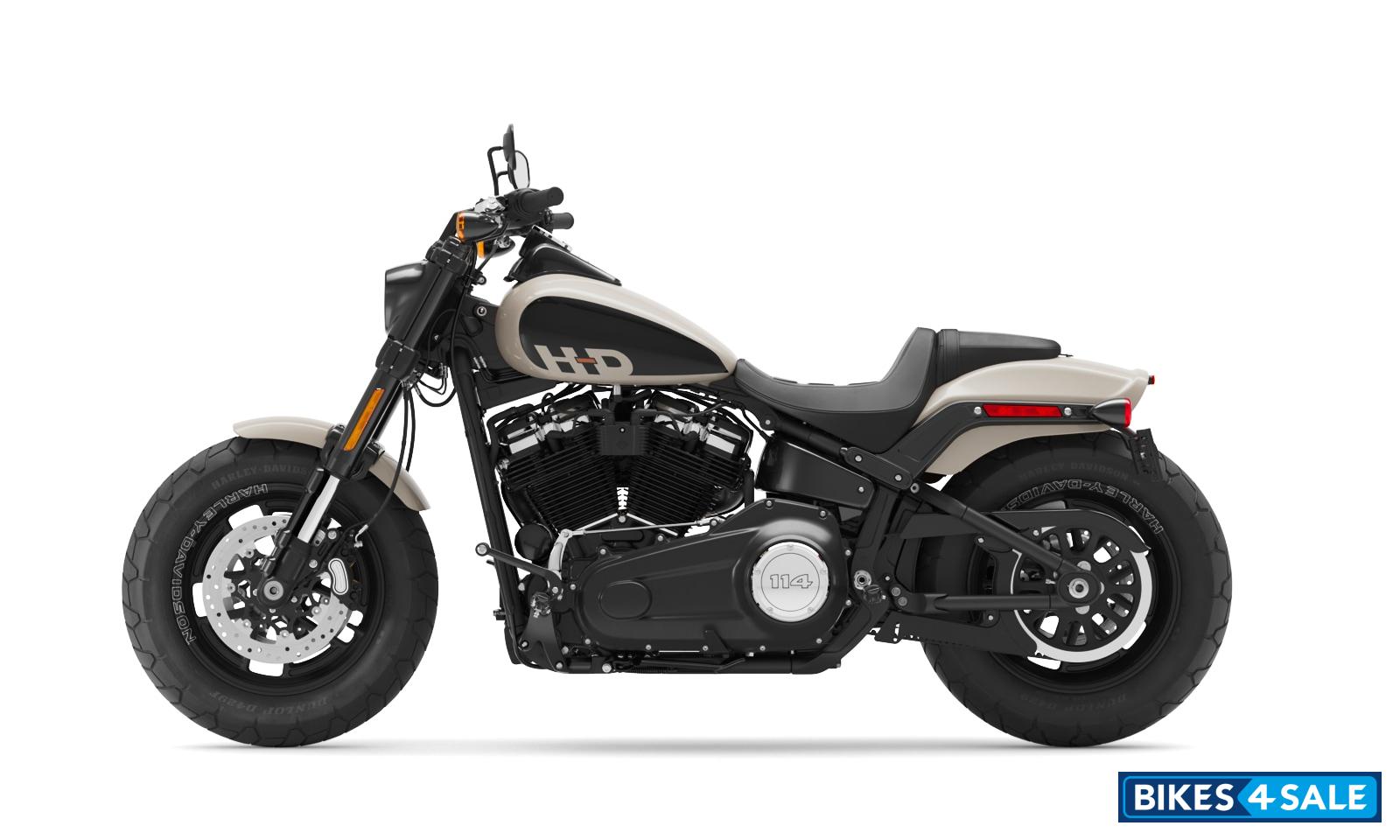

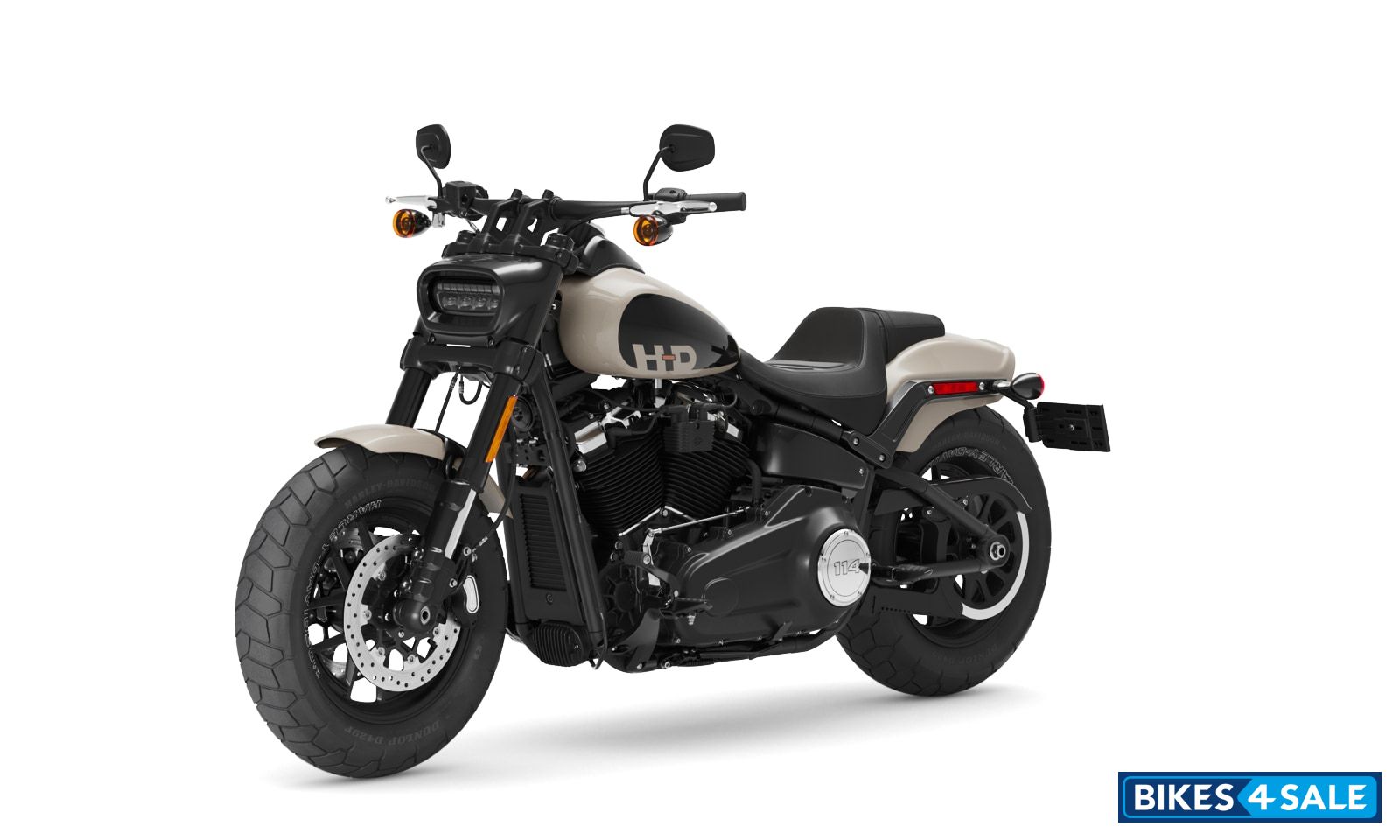

White Sand Pearl

Technical Specifications
Vehicle TypeMotorcycle
FuelPetrol
Engine Displacement1868.00 cc
Engine DetailsMilwaukee-Eight 114
Bore x Stroke102mm x 114mm
Compression Ratio10.5:1
Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)
Maximum Torque160 NM @ 3500 RPM
ForkSingle cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Electricals
Head LampLED
Tail LampLED
Brakes
Front Brake4-piston fixed
Front and rear black, Split 7-spoke floating rotors
Rear Brake2-piston floating
Front and rear black, Split 7-spoke floating rotors
Chassis and Suspension
Front SuspensionDenim black, Structure cast aluminum with laser etched graphics
Rear SuspensionDenim black, Structure cast aluminum with laser etched graphics
Tyres
Front Tyre150/80-16,71H,BW
Dunlop Harley-Davidson Series, bias blackwall
Rear Tyre180/70B16,77H,BW
Dunlop Harley-Davidson Series, bias blackwall
Dimensions
Length2339 mm
Seat Height704 mm
Wheelbase1615 mm
Weight296 kg
Kerb Weight306 kg
Ground Clearance119 mm
Fuel Tank Capacity13 litres
Additional Details
RAKE : 28
TRAIL : 5.2 in.
OIL CAPACITY (W/FILTER) : 5 qt.
EXHAUST : 2-into-2 shorty dual; catalyst in muffler
ENGINE TORQUE TESTING METHOD : J1349
LEAN ANGLE, RIGHT (DEG.) : 31
LEAN ANGLE, LEFT (DEG.) : 32
FUEL ECONOMY TESTING METHOD : Estimated City/Hwy
FUEL ECONOMY : 47 mpg
PRIMARY DRIVE : Chain, 34/46 ratio
GEAR RATIOS (OVERALL) 1ST : 9.311
GEAR RATIOS (OVERALL) 2ND : 6.454
GEAR RATIOS (OVERALL) 3RD : 4.793
GEAR RATIOS (OVERALL) 4TH : 3.882
GEAR RATIOS (OVERALL) 5TH : 3.307
GEAR RATIOS (OVERALL) 6TH: 2.79
REAR SHOCKS : Hidden, free piston, coil-over monoshock; 56mm stroke; toolless hydraulic preload adjustment
GAUGES : 4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
