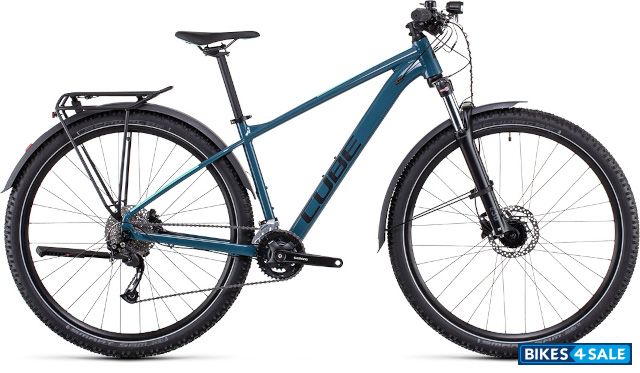

CUBE Aim SL 2022 Bicycle

Price, features and specs

Rate CUBE Aim SL 2022:

4.4/5 (5 votes)

Add To Compare
Write a Review

CUBE Aim SL 2022 Price

Not Available

Picture Gallery

Similar Bicycles

AURUM Manto Sram Force 1x Compare

AURUM Manto Sram Red 1x Compare

Accent Cyclone Disc 105 Compare

Accent Cyclone Disc 105 Di2 Compare

Accent Cyclone Disc Ultegra Di2 Compare

AURUM Essentia Compare

Colours

Teal and Black

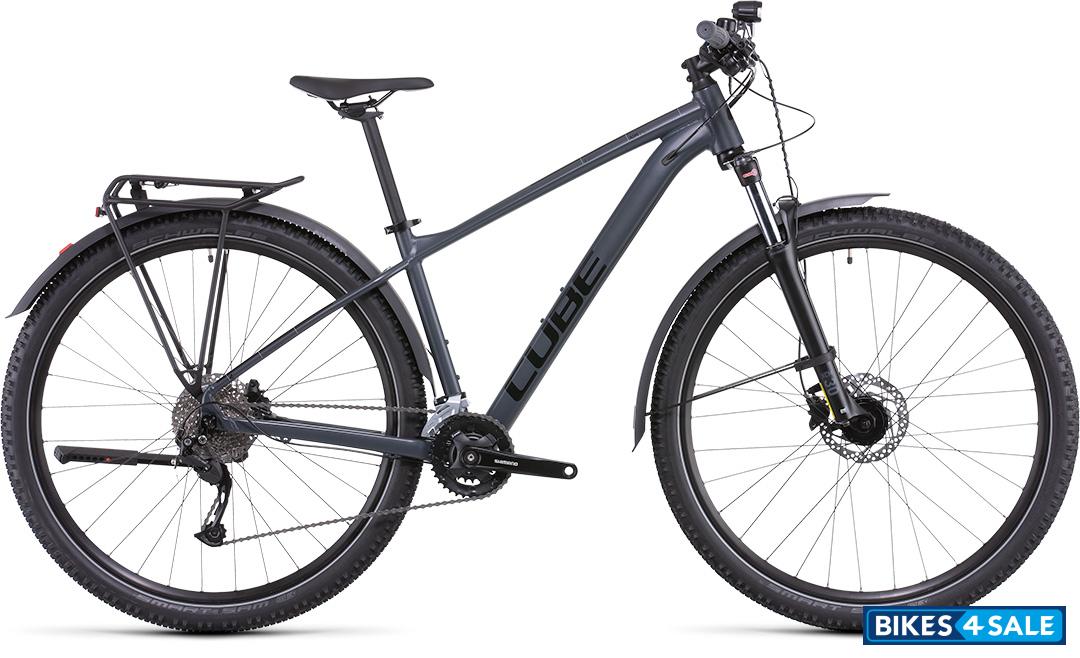

Grey and Black

134 Flushing Ave, United States

Via Bergamo 3a, Italy

More Dealers

View all CUBE Showrooms

Technical Specifications

Vehicle Type	Bicycle
Stem	CUBE Performance Stem Pro, 31.8mm
Handlebar	CUBE Rise Trail Bar, 680mm
Fork	SR Suntour XCM Disc, 100mm, Remote Lockout
Seat	SeatClamp: CUBE Varioclose, 31.8mm
Seatpost	CUBE Performance Post, 27.2mm
Grip	ACID React
Crankset	Shimano FC-MT101, 36x22T
Pedals	ACID PP MTB
Chain	KMC X9
Shifters	Shimano SL-M2010-9R, Rapidfire-Plus
Saddle	Natural Fit Venec Lite
Headset	CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
Derailleur : Front	Shimano FD-M2020, Top Swing, 31.8mm Clamp
Derailleur : Rear	Shimano RD-M3100-SGS, 9-Speed
Hub : Front	CUBE Alloy Light, QR, 6-Bolt
Hub : Rear	CUBE Alloy Light, QR, 6-Bolt
Bottom Bracket	Thun Paso-ML, 73mm BSA
Stand	Acid Pro Flat Mount Kickstand

Electricals
Head Lamp	CUBE Shiny 50
Tail Lamp	ACID Mudguard Rear Light PRO-D, 6V, AC

Brakes
Front Brake	Clarks Clout 1, Hydr. Disc Brake (160/160)
Rear Brake	Clarks Clout 1, Hydr. Disc Brake (160/160)

Chassis and Suspension
Frame	Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount

Dimensions
Weight	16.1 kg

Additional Details
Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24") Carrier: Acid Semi-integrated Carrier, Acid Rilink Adapter Compatible Mudguards: Acid 65 Bell: Easy Bell
